MorphoWave SP
Installation guide
Copyright 2021 Idemia
November 2021 | 2018_2000035853-v81

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MorphoWave SP and is the answer not in the manual?

Questions and answers

Related Manuals for Idemia MorphoWave SP

Summary of Contents for Idemia MorphoWave SP

  • Page 1 MorphoWave SP Installation guide Copyright 2021 Idemia November 2021 | 2018_2000035853-v81...
  • Page 2 Copyright 2021 Idemia November 2021 | 2018_2000035853-v81...
  • Page 3 COPYRIGHT © 2021 Idemia. All rights reserved. Reproduction in whole or in part in any form or medium without the express written permission of Idemia is prohibited. The trademarks identified herein are the trademarks of registered trademarks of Idemia, or other third party.
  • Page 4 Revision history Version Date Reference Description November 2021_2000060521 Document creation 2021 MorphoWave Compact - 2018_2000035853-v81...

  • Page 5: Table Of Contents

    2.1 > Box opening 2.2 > Components of the initial package 2.3 > Terminal's front view description 2.4 > Terminal's rear view description 2.5 > MorphoWave SP Technical Characteristics 3 / Installation procedure 3.1 > Before proceeding to the installation 3.2 > Installation 3.3 >...
  • Page 6 7.2.2 > Improper Use 8 / Annex 2 : Bibliography 8.1 > How to get the latest versions of documents 8.2 > Documents about the MorphoWave SP terminal 9 / Annex 3 : Support 9.1 > Troubleshooting 9.2 > Technical Support and Hotline...

  • Page 7: Introduction

    1 / Introduction MorphoWave Compact - 2018_2000035853-v81...

  • Page 8: Morphowave Sp Terminal

    25 years of experience in the field of biometric identification and the creation of literally millions of individual fingerprint identification records. Using MorphoWave SP, you will have the best user experience with a contactless fingerprint device. Hygienic, easy to use, fast and accurate.

  • Page 9: Scope Of The Document

    1.2 > Scope of the document This guide deals with the installation of MorphoWave SP, which is made up of the following list of products: Contactless smartcard Fake Water Regulatory reader MorphoWave SP Marketing Name Biometrics Finger Mobile Resistant Model Number ®...

  • Page 10: Safety Instructions

    NEC Class 2 requirements; or supplied by a listed IEC60950-1 external Power Unit marked Class 2, Limited Power source, or LPS and rated 12VDC, 2.5 A minimum or 24VDC, 1.25 A minimum. Note that all connections of the MorphoWave SP terminal described hereafter are of SELV (Safety Electrical Low Voltage) type.

  • Page 11: Wiring Recommendations

    1.4 > Wiring Recommendations Idemia recommends using a AWG16 gauge and 24V power supply when PoE+ supply is not used. voltage specified measured product block connector: 12V-24V (-15% / +10%). The voltage drop due to the cable shall be taken into account. The following table shows the maximum...

  • Page 12: Regulatory, Safety And Environmental Notices

    Compliance with these directives is assessed using applicable European Harmonised Standards. MorphoWave SP terminals are intended to be used for professional application only (buildings, airport...). This is an EMC Class A product according to EMC directive 2004/108/EC. This product may cause interference if used in residential areas.

  • Page 13: Usa (Fcc) Regulatory Notices

    Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Responsible Party: Idemia 2, place Samuel de Champlain 92400 Courbevoie – France NOTA : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 14: Canada (Ic) Regulatory Notices

    1.5.3 > Canada (IC) regulatory notices WARNING TO USERS IN THE CANADA / ATTENTION POUR LES UTILISATEURS AU CANADA This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 15: Other Recommendations

    1.6 > Other recommendations Potential safety conditions notice If you notice any of the following conditions (or if you have other safety concerns), do not use the product: crackling, hissing, or popping sound, or a strong odor or smoke coming from the product. It is normal for these conditions to appear when an internal electronic component fails in a safe and controlled manner.

  • Page 16: Recommendations For Terminal Implementation

    Every installation is unique. Sometimes the issues are well defined and can be handled in a standard fashion; sometimes the issues are very specific and may not be immediately recognizable. Idemia recommends following steps for a successful installation: Plan the installation - Choose the type of hardware required, decide if a network is required, and decide on the location and number of required terminals.
  • Page 17 To secure properly an access, Idemia recommends installing the MorphoWave SP terminal as a part of the typical Access Control environment described in the figure below. MorphoWave SP Terminal Figure 2: Implementation Recommendations This environment comprises: MorphoWave SP terminal itself Its role is to perform one-to-many biometric identification or one-to-one biometric verification, i.e.
  • Page 18 The Controller replies with its decision to the MorphoWave SP terminal (which displays access granted or access denied depending on the answer) The MorphoWave SP terminal sends an alarm signal to the Controller as soon as a malicious operation is detected (terminal pulled out from the wall or opened for maintenance operations); refer the paragraph dealing with anti-pulling and anti-tamper switches for more explanations.

  • Page 19: General Description

    2 / General description MorphoWave Compact - 2018_2000035853-v81...

  • Page 20: Box Opening

    2.1 > Box opening At the box opening, components shall be extracted from the protection casing as depicted in the pictures below. Extract the wall plate (which is not screwed to the terminal) and keep it separate until the installation of the terminal is completed.

  • Page 21: Components Of The Initial Package

    2.2 > Components of the initial package Figure 4: Box Content 1. One (1) Terminal’s body 2. One (1) Wall frame MorphoWave Compact - 2018_2000035853-v81...

  • Page 22: Terminal's Front View Description

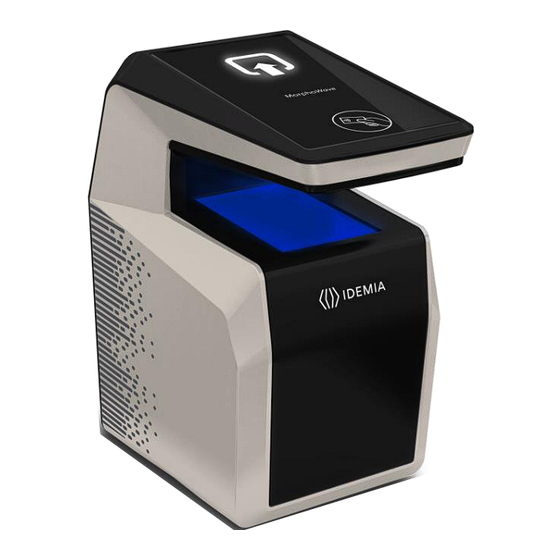

    2.3 > Terminal's front view description Large User feedback LED panel Buzzer Contactless card area Contactless biometric sensor Optional Wifi interface Figure 5: MorphoWave SP terminal front view MorphoWave Compact - 2018_2000035853-v81...

  • Page 23: Terminal's Rear View Description

    USB port (for configuration and settings with a USB mass storage key, or for installation of a Wi-Fi USB dongle) Power supply, Relay, Tamper switch GPIO RS485 / RS422 Wiegand RJ45 Figure 6: MorphoWave SP terminal rear view MorphoWave Compact - 2018_2000035853-v81...

  • Page 24: Morphowave Sp Technical Characteristics

    2.5 > MorphoWave SP Technical Characteristics Item Description Access control modes Identification (search for fingerprints in a local database) Authentication with contactless smartcard, with or without fingerprint check Multi-factor: identification or authentication Proxy: the access control check is fully driven by a remote system...
  • Page 25 ® RFID cards (depending MIFARE Classic 1KB & 4KB (4b and 7b UID) on product version) ® MIFARE Plus cards ® ® MIFARE ® DESFire EV0 (first generation of DESFire cards, 3DES only) ® DESFire EV1 (3DES and AES) ® DESFire EV2 (3DES and AES) ®...
  • Page 26 USB host port terminal configuration through a USB mass storage key ™ connection with an external Wi-Fi USB dongle using an adapter cable Not evaluated by UL Input signals LED1/LED2 to activate the access granted relay Power supply 12 to 24 V DC power supply (2.5A min @12V, 1.25A min @24V) Or by Power Over Ethernet Plus through RJ-45 connector Note for UL 294 Compliance power supply shall be UL 294 and UL 294B with power limited output...

  • Page 27: Installation Procedure

    3 / Installation procedure MorphoWave Compact - 2018_2000035853-v81...

  • Page 28: Before Proceeding To The Installation

    3.1 > Before proceeding to the installation Make sure that you have all the components described in “Components of the initial package” section at your disposal. Remove the wall plate. Keep this element at hand. Figure 7: Removing wall frame It is then possible to fix the terminal on the wall.

  • Page 29: Installation

    3.2 > Installation Required tools (not supplied) Four (4) raw plugs + four (4) screws ø4mm max and length adapted to the wall material. One (1) screwdriver adapted to screws above. One (1) Drill (with a drill bit diameter adapted to raw plugs above). One (1) hole saw (depending on installation case).

  • Page 30: Step By Step Procedure

    3.3 > Step by step procedure 40 min Floor Figure 8: Side view The recommended height for fixing of the terminal is 1.05 to 1.15 m (height of the acquisition glass). For an optimal use, the terminal must be installed in an area where the lighting conditions are controlled.

  • Page 31: Drill The Mounting Holes

    3.3.1 > Drill the mounting holes Be sure that the wall behind the wall plate has a good flatness. Ø 67 mm Floor Depth ≥ 40 mm Figure 9: Drilling template If not present, drill in the wall a hole with a diameter adapted to the width of the terminal and the cable to be hosted in (see Figure 9: Drilling template.

  • Page 32: Make The Connections

    3.3.2 > Make the connections Unscrew the connector from the device: Figure 10: Connection - Step 1 MorphoWave Compact - 2018_2000035853-v81...
  • Page 33 Fit the cables through the mounting plate: Figure 11: Connection - Step 2 Then connect the cables: Figure 12: Drilling template and cable connection Before cabling the product, remove the connector by cutting cables in the middle of heat shrink tube. Please refer to section 4 / for explanations of how cables/wires should be connected, according to wire color code.
  • Page 34 Cable for wiring shall be AWG 20 to 24, length shall be adapted to the size of the hole in the wall, to terminal connections, and to the distance between the electric source and the terminal itself. For power supply, IDEMIA recommends using a 24V power supply and AWG16 gauge cable. To ensure water tightness, be sure to bend the cable downward.

  • Page 35: Attach The Base Plate On The Wall

    3.3.3 > Attach the base plate on the wall Fix the base plate on the wall with the 4 screws. Figure 14: Base plate fixation on the wall MorphoWave Compact - 2018_2000035853-v81...

  • Page 36: Attach The Device On The Base Plate

    3.3.4 > Attach the device on the base plate Figure 15: Base plate attachment on the device MorphoWave Compact - 2018_2000035853-v81...

  • Page 37: Connect The Connector Assembly On The Device

    3.3.5 > Connect the connector assembly on the device Attach the connector assembly on the device with the 4 screws. Figure 16: Connector assembly on the device MorphoWave Compact - 2018_2000035853-v81...

  • Page 38: Close The Device On The Base Plate

    3.3.6 > Close the device on the base plate Detach the device from the plate: first lift the device upwards, then pull it towards you, and hold it. Figure 17: Product closure Do not try to turn the product directly while it is attached on the base plate, as this would definitely damage the plate and the device! Then rotate the device 90°...
  • Page 39 Then to secure the device on the plate, attach the last screws on the bottom of the device: Figure 19: Locking the product The hardware installation of the product on the wall is complete! Power can be switched ON just after closing it. If the product has to be stored for a long time (more than 48 hours), don’t forget to restore its configuration before use.

  • Page 40: Electrical Interface

    4 / Electrical interface MorphoWave Compact - 2018_2000035853-v81...

  • Page 41: Wiring Overview

    Power supply ground shall not be used for peripheral ground. All other grounds can be used indifferently. Note that all connections of the MorphoWave SP terminal described hereafter are of SELV (Safety Electrical Low Voltage) type. Figure 20: Cabling layout...

  • Page 42: Power Supply

    If sharing power between devices, each unit must receive 2.5A (e.g. two units would require a 12vDC, 5A supply). IDEMIA recommends using a 24V power supply and AWG16 gauge cable. The voltage measured on the product block connector of the terminal must be equal to 12V-24V (-15% / +10%).
  • Page 43 PoE+ (Power over Ethernet Plus) MorphoWave SP terminal's power supply can also be provided by the Ethernet using RJ45 connection (Power over Ethernet Plus mode - IEEE802.3at type 2 compliant). The terminal may be powered via a UL 294B PSE PoE+ Limited power source (IEEE802.3at type 2 compliant).

  • Page 44: Output Relay

    The internal relay is designed for at least 100 000 cycles (resistive load). Inductive load management requires a parallel diode for a better contact lifetime. Example of connection for electrical door locks MorphoWave SP terminal Figure 23: Example of electric latch connection...

  • Page 45: Tamper Switch

    100 mA at 30 VDC max (Resistive load) according to the safety extra low voltage standard. This MorphoWave SP terminal is part of security system; it is customer’s responsibility to connect the tamper switch (contact) to physical access controller, in order to prevent the access to the connector blocks.

  • Page 46: Wiegand Wiring

    If pull-up’s to 12V have been added on Wiegand IN D0 and Wiegand IN D1 inputs on a previous installation with a MorphoAccess® 500 Series terminal, these resistors must be removed to avoid any damage to the MorphoWave SP terminal. MorphoWave Compact - 2018_2000035853-v81...

  • Page 47: Wiegand Output

    LED1 and the GND wires, and it means “access granted”. The MorphoWave SP terminal uses the timeout of the wait for a low level on the on LED1 wire or LED2 wire as “access denied” answer.
  • Page 48 (by closing a contact between the LED2 and the GND wires), whatever is the state of the LED1 wire. The MorphoWave SP terminal also considers that the answer of the controller is "access denied" in case of time-out while expecting for a closure between LED1 and GND wires, or between LED2 and GND wires.

  • Page 49: Serial Port Wiring

    4.7 > Serial port wiring DataClock Input Data (Output type required: Open Green / Red WIEGAND_IN0 drain only) Clock (Output type required: Open White / Red WIEGAND_IN1 drain only) Card present signal (if configured, Yellow GPO0 only one selectable for Morpho Legacy) Black / Red WIEGAND_GND...
  • Page 50 RS485 Green / Black RS485_TX_Y In/Out RS485 Rx/Tx non inverting signal (A) Green / White RS485_TX_Z In/Out RS485 Rx/Tx inverting signal (B) Black / Red RS485_GND Ground Figure 29: Serial port wiring – RS485 RS485 implementation is limited to half-duplex communication. So only Tx+, Tx- and ground reference signals are necessary.

  • Page 51: Gpio Wiring

    4.8 > GPIO wiring Orange / Black GPI2 Digital Input (1,8V to 5V) Digital Output (5V – 5mA max) Yellow / Black GPO2 Orange / Red GPI1 Digital Input (1,8V to 5V) Digital Output (5V – 5mA max) Yellow / Red GPO1 Orange GPI0...

  • Page 52: Ethernet Connection

    MDI or MDI-X. Ethernet cable shall be shielded Ethernet interface can be used to power the MorphoWave SP terminal through PoE+ (Power Over Ethernet Plus - IEEE802.3at type 2 mode). According to the PoE+ standard two modes are available: power on data pins and power on dedicated pins.

  • Page 53: Internal Usb Connection

    4.10 > Internal USB connection Remove the 4 screws of the cover, as shown on the following drawing. Then remove the cover. Figure 34: Cover removing Then you can see a Mini USB plug. Mini USB type B connector Figure 35: Internal USB connection MorphoWave Compact - 2018_2000035853-v81...
  • Page 54 The internal Mini USB-type B can be used for administration only to connect a mass storage USB key (with a standard Mini USB-type B / USB-type A female OTG adapter). Please refer to MorphoWave SP Administration Guide for more information. USB connection is limited to USB key connection (power consumption shall not exceed...

  • Page 55: Wi-Fi ™ Dongle Installation

    ™ Only Wi-Fi USB dongle delivered by Idemia (kit reference 293731397, containing the dongle and the cable) may be installed with the terminal for WLAN (Wireless Local Area Network) operation. Remove the cover on the rear panel: Figure 36: Cover removing...
  • Page 56 ™ Then plug the Wi-Fi dongle on the provided cable, connect the cable on the Mini-USB socket, and fit the dongle inside the hole, as described on the following picture: 2. connect 1. connect 3. Insert the 4. Attach the cover and dongle in the hole tighten the screws ™...

  • Page 57: User Interface

    5 / User interface MorphoWave Compact - 2018_2000035853-v81...

  • Page 58: Modes For Controlling Access Rights

    5.1 > Modes for controlling access rights 5.1.1 > Introduction The MorphoWave SP terminal offers several methods for controlling access rights: it needs to be configured in one of the following four modes: Identification mode, Authentication mode, Multi-factor mode, Proxy mode Refer to MorphoWave SP Administration Guide for more information on Access Control.

  • Page 59: Multi-Factor Mode

    ) link using TCP, SSL or TLS protocol. The MorphoWave SP terminal acts as a server: it is either waiting for a command or executing a command. The commands allowed by the MorphoWave SP terminal are described in the MorphoWave SP Host System Interface Specification document.

  • Page 60: External Database Mode (Also Called Polling Mode)

    How to Activate? External database mode can be activated by setting “ucc.enable_external_database” parameter to 1. Only an admin user can activate polling mode. You can refer to the MorphoWave SP Host System Interface Specification document to know how to set this parameter.

  • Page 61: Recommendations

    6 / Recommendations MorphoWave Compact - 2018_2000035853-v81...
  • Page 62 Tx+/Tx- and the other twisted-pair wire). Using PoE+ The MorphoWave SP can consume more power than the 13 Watt allowed by the PoE standard and must be connected to a network switch supporting PoE+. The MorphoWave SP will need the maximum power when a user swipes his hand through the reader and when reading a contactless card.
  • Page 63 It is important to configure the switch to allocate the proper amount of power for the MorphoWave SP so it can work properly.
  • Page 64 Please note that the date/time of the terminal is protected from power failure during at least 24 hours. If the duration of the power failure or power down is longer, the date/time of the terminal will be lost. Cleaning precautions The use of a dry cloth is recommended to clean the terminal, especially the front face.

  • Page 65: Annex 1 : Finger Placement Recommendations

    7 / Annex 1 : finger placement recommendations MorphoWave Compact - 2018_2000035853-v81...

  • Page 66: Main Principles

    7.1 > Main principles MorphoWave SP is a biometric acquisition terminal which captures fingerprints by the applicant waving their hand through the active volume. The product can track and capture simultaneously up to 4 fingerprints at a maximum speed of 0.5m/s.

  • Page 67: Capture Recommendations

    7.2 > Capture recommendations 7.2.1 > Proper Use Below are several illustrations and guidelines on how to best use your new MorphoWave SP device. Insert your hand flat, palm down, from the front of Place your hand between the cover and the...

  • Page 68: Improper Use

    7.2.2 > Improper Use The following illustrations show what NOT to do when using Finger on the Fly. Do not cross your Do not place your hand Do not place your Do not place 2 hands fingers with fingers spread fingers tightly together inside wide...

  • Page 69: Annex 2 : Bibliography

    8 / Annex 2 : Bibliography MorphoWave Compact - 2018_2000035853-v81...

  • Page 70: How To Get The Latest Versions Of Documents

    8.1 > How to get the latest versions of documents For the latest firmware, software, document releases, and news, please check our website: biometricdevices.idemia.com To get your login and password please contact your sales representative. MorphoWave Compact - 2018_2000035853-v81...

  • Page 71: Documents About The Morphowave Sp Terminal

    8.2 > Documents about the MorphoWave SP terminal Documents about installing the terminal Quick Installation Guide, This document describes the main steps for wall mounting. Installation Guide, This document describes terminal physical mounting procedure, electrical interfaces and connection procedures. This document is in English.

  • Page 72: Annex 3 : Support

    9 / Annex 3 : Support MorphoWave Compact - 2018_2000035853-v81...

  • Page 73: Troubleshooting

    Ask the network administrator for the correct value. Check that each device connected to the network has a different IP address. 9.2 > Technical Support and Hotline USA & Canada: Mail: support.bioterminals.us@idemia.com Tel: +1 888 940 7477 LATAM (Latin America): Mail: support.bioterminals.us@idemia.com Tel: +1 714 575 2973 EMEA (Europe, Middle-East &...
  • Page 74 COPYRIGHT © 2021 IDEMIA Head office: IDEMIA 2, place Samuel de Champlain 92400 Courbevoie - France www.idemia.com...
