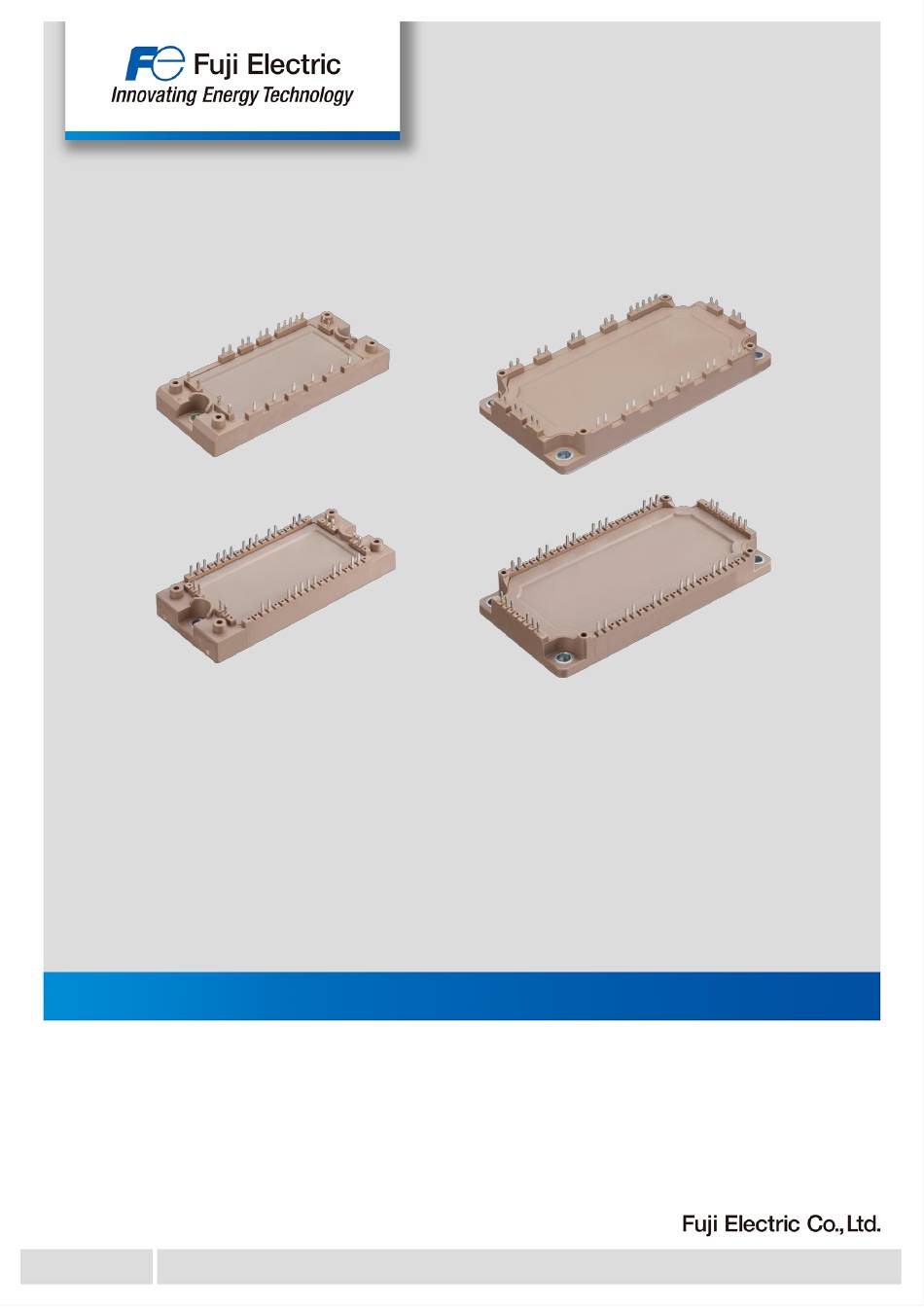

  • Page 1 Fuji Industrial IGBT Module Solder pin type EconoPIM (M711, M712, M719, M720) EconoPACK (M633, M636, M668, M669, M1203) Mounting instructions EconoPIM and EconoPACK are registered trademark of Infineon Technologies AG, Germany. Oct. 2022 MT6M14904 MT6M14904b © Fuji Electric Co., Ltd. All rights reserved.
  • Page 2: Table Of Contents

    3-3. Screw tightening to heat sink 4. Mounting the module to printed circuit board 4-1. Soldering to printed circuit board 4-2. Screw tightening to printed circuit board 5. Warning 6. Storage and transportation notes MT6M14904b © Fuji Electric Co., Ltd. All rights reserved.
  • Page 3: Scope Of Application

    When handling the products, please follow beside the descriptions within this document, additionally the Warning and Caution of the delivery specifications of the related products. EconoPIM and EconoPACK are registered trademark of Infineon Technologies AG, Germany. MT6M14904b © Fuji Electric Co., Ltd. All rights reserved.
  • Page 4: Related Types

    7MBR100VP-060-50 M720 7MBR50VR-120-50 (R type) 7MBR75XRA120-50 7MBR75VR-120-50 7MBR75XRE120-50 100A 7MBR100XRA065-50 7MBR100VR-060-50 7MBR100XRA120-50 7MBR100VR-120-50 7MBR100XRE120-50 150A 7MBR150XRA065-50 7MBR150VR-060-50 7MBR150XRE120-50 7MBR150VR-120-50 7MBR150XRE065-50 EconoPIM and EconoPACK are registered trademark of Infineon Technologies AG, Germany. MT6M14904b © Fuji Electric Co., Ltd. All rights reserved.
  • Page 5 Table 3 EconoPACK (12-in-1) 650V (X series) 600 V (V series) 1200V (X series) 1200V (V series) M1203 12MBI50VN-120-50 12MBI75VN-120-50 100A 12MBI100VN-120-50 EconoPIM and EconoPACK are registered trademark of Infineon Technologies AG, Germany. MT6M14904b © Fuji Electric Co., Ltd. All rights reserved.
  • Page 6: Mounting To Heat Sink

    (b) In the case of concave shape Thermal grease application surface P=100mm pitch 50μm (Heat sink) (c) In the case of both shapes exist Fig.1 Heat sink surface flatness and roughness MT6M14904b © Fuji Electric Co., Ltd. All rights reserved.
  • Page 7: Application Of Thermal Grease

    W/m・K >= 1 μm Thermal grease thickness 100 +/-30 Thermal grease (apply to module’s base plate) Stencil mask Stencil mask fixing tool Squeegee (for applying thermal grease) Fig.2 Thermal grease application MT6M14904b © Fuji Electric Co., Ltd. All rights reserved.
  • Page 8: Screw Tightening To Heat Sink

    Temporary tightening 0.5N・m Vseries:2.5~3.5N・m (1) → (2)→ (3)→ (4) Final tightening Xseries:2.5~6.0N・m (b) Screw Tightening Torque and Screw Tightening Order (for M712,M720,M633,M668,M1203) Fig. 3 Screw Tightening Torque and Screw Tightening Sequence MT6M14904b © Fuji Electric Co., Ltd. All rights reserved.
  • Page 9: Mounting The Module To Printed Circuit Board

    Set the soldering unit temperature to suit the heat capacity of your PCB. Before soldering, make sure that the temperature of the resin part at the base of the product terminal is 260°C or less. MT6M14904b © Fuji Electric Co., Ltd. All rights reserved.
  • Page 10: Screw Tightening To Printed Circuit Board

    Make sure the screws go straight in tightening (1) → (2)→ (3)→ (4) Final tightening 0.4~0.5 N・m (b) Screw Tightening Torque and Screw Tightening Order (for M712,M720,M633,M668,M1203) Fig. 4 Screw Tightening Torque and Screw Tightening Sequence MT6M14904b © Fuji Electric Co., Ltd. All rights reserved.
  • Page 11 (a) Recommended screw dimension (diameter) and mounting image Fig.5 Recommended screw dimensions and mounting image (a) Example of screw in tilted state (b) Example of mechanical damage Fig.6 Poor example of screw tightening MT6M14904b © Fuji Electric Co., Ltd. All rights reserved.
  • Page 12: Warning

    Use the terminals within the range of storage temperature. (2) If longer screws than the allowable length described in this manual are used, the product may be damaged, causing ground faults and poor insulation. In that case, Fuji Electric Co., Ltd. Is not responsible for the matter.
  • Page 13: Storage And Transportation Notes

    (1) Do not drop or cause impact to the products which could otherwise cause mechanical stress. (2) When transporting several products in the same box or container, provide sufficient ESD padding between the products to protect the terminals and to keep the products from shifting. MT6M14904b © Fuji Electric Co., Ltd. All rights reserved.
  • Page 14 October 2022. The contents are subject to change without prior notice due to changes in product specifications or for other reasons. When using a product described in this manual, please obtain the product’s latest specification and check the data. MT6M14904b © Fuji Electric Co., Ltd. All rights reserved.
