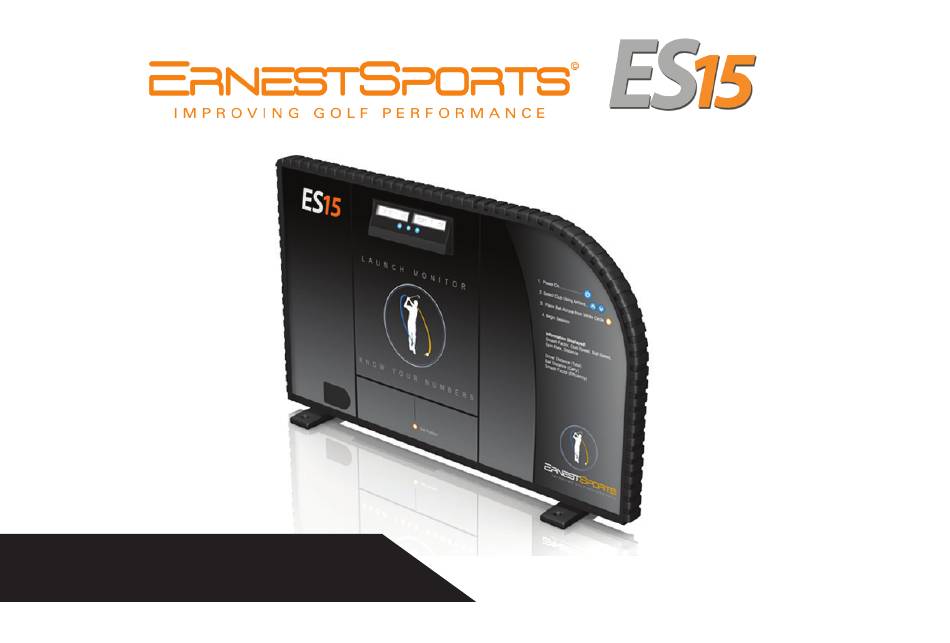

  • Page 1 » ES15 User Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION Description Specification PACKAGE CONTENTS Standard And Optional Parts ASSEMBLY OF THE ES15 Attach Stabilizing Feet Installation of Battery Optional Power Source Low Battery Prompt REMOTE CONTOL KEY FOB Uses of the Key Fob INSTALLATION OF THE ES15...
  • Page 3 STARTING A RANGE SESSION 15-16 Data Provided GETTING THE ES15 APP ES15 APP 18-29 Bluetooth Connection Range Session 20-21 Viewing Options 22-24 Club & Loft Selection Default Information Session Logs Club Averages Skills Challenge WARRANTY...

  • Page 4: Introduction

    This versatile device may be installed on grass, artificial turf, hitting mats, and wooden or concrete flooring. Each ES15 features Bluetooth which allows connection of the golfer’s smart device to the ES15. The free ES15 app records and stores each shot hit during a range session, allowing the golfer to review his progress.

  • Page 5: Specification

    Specifications FRONT BACK Dual LCD Up Down Arrows and Power Button Instruction Panel Battery Panel Stabilizing Foot Ball Placement Stabilizing Foot Stabilizing Foot Stabilizing Foot Dimensions: Height: 30” Length: 48” Weight: 40 lbs.

  • Page 6: Package Contents

    PACKAGE CONTENTS Standard Parts Optional Parts The ES15 Range is packaged in its own box to prevent damage during shipping. 1. Remote Control Key Fob In addition to the ES15, every order includes: 2. Stabilizing Weights 1. Two (2) stabilizing feet 3.

  • Page 7: Assembly Of The Es15

    Attach Stabilizing Feet 1. Locate the two (2) feet and two (2) bolts from smaller box 2. Working on a flat surface, stand the ES15 on its end. WARNING! DO NOT LAY THE ES15 ON THE LCD DISPLAY! THIS COULD DAMAGE THE DISPLAY AND ELECTRONICS.

  • Page 8: Installation Of Battery

    Installation of Battery 1. Locate the metal contacts on the end of the battery. 2. Insert the battery with the contacts on the right into the battery tray. 3. Slide the battery into place until the battery is secure. 4. Insert the battery panel by placing the top of the panel in first (the latch is at the bottom).

  • Page 9: Optional Power Source

    To remove battery panel door, push the latch up and lift the door up and out. Remove battery and charge, then replace. Optional Power Source The ES15 can be configured to operate from electrical outlet. This is a special order feature. Contact Ernest Sports at 855-354-4653 for more information.

  • Page 10: Remote Contol Key Fob

    REMOTE CONTROL KEY FOB An optional feature of the ES15 is the remote control key fob that allows you to enable or disable power to the unit remotely. The power button on the ES15 is still necessary “A” BUTTON to activate the unit.

  • Page 11: Uses Of The Key Fob

    “B” button on the key fob. This will save the life of the battery. 2. If a facility chooses to add a fee for the use of the ES15, the range manager will have the ability to enable or disable the unit remotely.

  • Page 12: Installation Of The Es15

    INSTALLATION OF THE ES15 The ES15 Range launch monitor may be used in a variety of settings: natural grass, artificial turf, hitting mats, concrete or wooden floors. The unit may be used in both indoor and outdoor settings, under covered bays or open ranges.
  • Page 13 Artificial Turf The ES15 may also be used on a hitting mat or artificial turf. The optional weights that affix to the feet of the unit can be used if extra stability is needed. Wooden Floors or Cement For permanent installation of the ES15, simply secure the...
  • Page 14 Waterproof Cover For extra protection, Ernest Sports offers an optional waterproof cover. This cover, like the ES15 panels, may have the Ernest logo or be customized with special club branding. Custom Panels Enhance your facility’s look through uniquely designed panels. Rent panels for local ads, promote events.

  • Page 15: Starting A Range Session

    2. Use the arrow buttons to select the club you wish to use 3. Position your ball 12”-14” across from the orange circle, found on the lower part of the front panel 4. Begin your session Each ES15 software is pre-programmed with the consumers altitude location 0 –...

  • Page 16: Data Provided

    Data Provided After each shot is hit, five data points will be displayed on the dual LCDs. The five statistics are: 1. Distance 2. Ball Speed 3. Spin Rate 4. Smash Factor 5. Club Speed These statistics will remain displayed until the next shot is taken.

  • Page 17: Getting The Es15 App

    Windows and iOS users search for ES14 app. app for the iPad, go to the app store. Another added feature of the ES15 Range is the ability of each unit to connect with a golfer’s smart 1. Type in ES14 in the search device and then record each range session.

  • Page 18: Es15 App

    ES15 APP Range Session Start a new range session or join a saved session. Session Logs View data from previously recorded sessions. Club Averages View averages of all statistical information for each club. Settings Change settings for Averages, Units, Distance Type and Links.

  • Page 19: Bluetooth Connection

    On your Android device, go to “Settings.” Go to “Wireless and Network,” then “Bluetooth Settings.” Scan for devices and select ES15. Accept the pairing request when prompted. The ES15 will connect as needed after this point. However, It may be necessary to cycle the power for the ES15 between range sessions.

  • Page 20: Range Session

    5. Select Start Session in the app and NAME THE SESSION. 6. Your are ready to begin. Once you hit, the information for that shot will be displayed on the ES15 and then in the app. 7. When finished with your session, choose End/Save.
  • Page 21 2. Scroll through the log information and select a session. 3. You are ready to begin. Once you hit, the information for that shot will be displayed on the ES15 and then in the app. 4. When finished with your session, choose End/Save.

  • Page 22: Viewing Options

    Viewing Options Your Range Session information is displayed in four ways: 1. Shot by shot: Circular View 2. Shot by shot: Column View 3. Complete session: Scrolling View 4. Animated: Simulation View You may switch between the different views by pressing the View button in the bottom right corner of the screen.
  • Page 23 The 2nd view displays the club used and stats about the current shot in COLUMNS. The 2 columns have large, easy-to-read numbers. The 3rd view displays every shot in your current session in a scrolling format.
  • Page 24 The 4th view is a simulated view of your shots with statistics for the current shot. Your information may also be viewed on a monitor by connecting your smart device to the monitor using an HDMI cable and a multi-media adapter. To create a studio effect, connect your smart device to a projector using the HDMI and adapter.

  • Page 25: Club & Loft Selection

    Std. After making your selections press the Send button at the bottom to send your changes to the ES15 and return to your session or press Back to return to your session without any changes.

  • Page 26: Default Information

    Default Information When ordering the ES15, the following information will be programmed into the unit:...

  • Page 27: Session Logs

    Session Logs In this section of the app, you may view all previous range sessions. First select the Session you want to see. The app will then open that Range Session, allowing you to view, edit, delete, or email data from your range session. You can delete shots by swiping right to left and tapping delete.

  • Page 28: Club Averages

    Club Averages This feature of the app displays all clubs used in your Range Sessions. Select a club, and the app will open a smaller window with that club’s info. That info shown will be an average of each of the following categories: Club Speed, Ball Speed, Smash Factor, Spin, Distance and Lauch Angle.

  • Page 29: Skills Challenge

    Skills Challenge The purpose of the Skills Challenge is to test how well you know your distances. To use, press start, then sessions. Select new. You then have the option of hitting even, odd, or random yardage shots. Skills Challenge gives you 10 distances with 3 tries to make each distance.

  • Page 30: Warranty

    WARRANTY The ES15 is warrantied for twelve (12) months against any manufacturing defects in materials and workmanship, and for all parts and labor. The warranty applies only to the original purchaser of this product. Warranty work may be completed only by Ernest Sports.
  • Page 31 » » 855.354.GOLF www.ernestsports.com 5275 Triangle Parkway, Suite 150, Norcross GA 30092 www.FACEBOOK.com/ernestsports www.TWITTER.com/ernestsports...
