Summary of Contents for Flebi EVO 3.0
- Page 2 Index Unpacking & Assembly Electric operation 1. Box content 9. Recharging the battery 2. Pedals installation 10. Operation with PAS 3. Saddle installation 11. Motor wheel assembly 4. Packing in original box Folding & Unfolding Setting up the ebike 12. Unfolding the ebike 5.
-
Page 3: Box Content

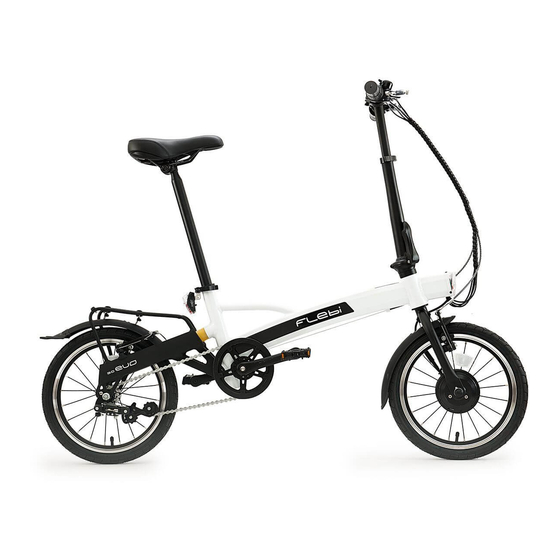

Unpacking & Assembly Box content Assembling your Flebi Evo 3.0 is very easy! - Take the bike out of the box - Remove the protections - Unfold the bike (see 12) - Place the seat post on the frame, and the seat using a 14 spanner. -
Page 4: Pedals Installation
Unpacking & Assembly Pedals installation The right pedal is the one on the chainring side and is marked 'R'. It is screwed on by hand in a clockwise direction, and then firmly tightened with a size 15 spanner. The left pedal is marked 'L'. He twists his hand counterclockwise, then... - Page 5 Unpacking & Assembly Saddle installation Insert the seat into the post, place it in a horizontal position so that it is straight and tighten it firmly using a 14 open end wrench. vídeo explicativo: https://youtu.be/XEOo21mK0AE...
- Page 6 Packing in original box In the event that you have to repackage your bike in its original box to send it to Flebi's technical service, we recommend that you follow the steps below to protect it as best as possible and avoid...
- Page 7 Setting up the ebike Handlebar height and alignment You can adjust the height of the handlebar to accommodate your height. To do this, open the telescopic closure and place the bar in the desired position, taking care not to exceed the safety mark.
-
Page 8: Tyre Inflation
Setting up the ebike Tyre inflation To control the amount of air to be introduced into the wheels of the Evo 3.0, it is convenient to use an inflator with a pressure gauge. The recommended pressure for both tyres is between 3.5 and 4.5 bars depending on the user's weight and route. - Page 9 Setting up the ebike Front light operation Evo 3.0 includes a smart headlight that illuminates automatically when it detects darkness or twilight. It is activated automatically once the red main switch on the handlebar is turned on. It is not necessary to activate the display.
- Page 10 Setting up the ebike Rear light operation To install the seat lock taillight, you must first release the plastic that insulates the batteries. Doing so will turn the light on. To install it: - We will open the seat lock - We will release the left thread - We will pass the light through the hole and put the closure back...
-
Page 11: Recharging The Battery
Electric operation Recharging the battery The Evo 3.0 battery must be charged by uncovering the protective plastic cap to access the charging connector. Plug the charger into the mains, and the charger connector battery recharge connector. The led light of the charger will turn red... - Page 12 Electric operation Operation with PAS After activating the central switch, the display is activated by pressing the power button located at the bottom of the display. At the top is a 5-bar indicator that shows the remaining battery level. Just below are the 5 levels of pedal assistance available.
- Page 13 Electric operation Motor wheel assembly To assemble and disassemble the front wheel, first of all we will have to loosen the brake cable to release it from the stop of its housing. Then, we will have to cut the flanges that hold the waterproof connector and separate the controller from the motor.
-
Page 14: Unfolding The Ebike
Folding & Unfolding Unfolding the ebike The steps to deploy your Flebi Evo 3.0 are: - Raise the stem of the handlebar, close the folding lever and insert the safety - Raise the saddle so that the seatpost allows the rear part of the frame to... -
Page 15: Folding The Ebike
Folding & Unfolding Folding the ebike The steps to fold your Flebi Evo 3.0 are: - Slightly turn the steering to the right side - Unlock the rear and tilt the rear wheel under the frame until it sits on... - Page 16 Folding & Unfolding Folding & unfolding pedals To fold or unfold each pedal you must press the control outwards and, at the same time, fold the pedal inwards (folded) or outwards (unfolded) until you feel the lock. vídeo explicativo: https://youtu.be/0zJqXkQ1s-s...
- Page 17 Folding & Unfolding Handlebar folding mechanism manillar First, make sure the cables aren't too tight due to the fixed handlebar height. To fold the handlebar stem, you must release the lock by pulling up and then push the lever out to drop the stem vídeo explicativo: https://youtu.be/KzzsWZm38tk...
