Summary of Contents for Coby CX-CD425
-
Page 1: Operation Manual

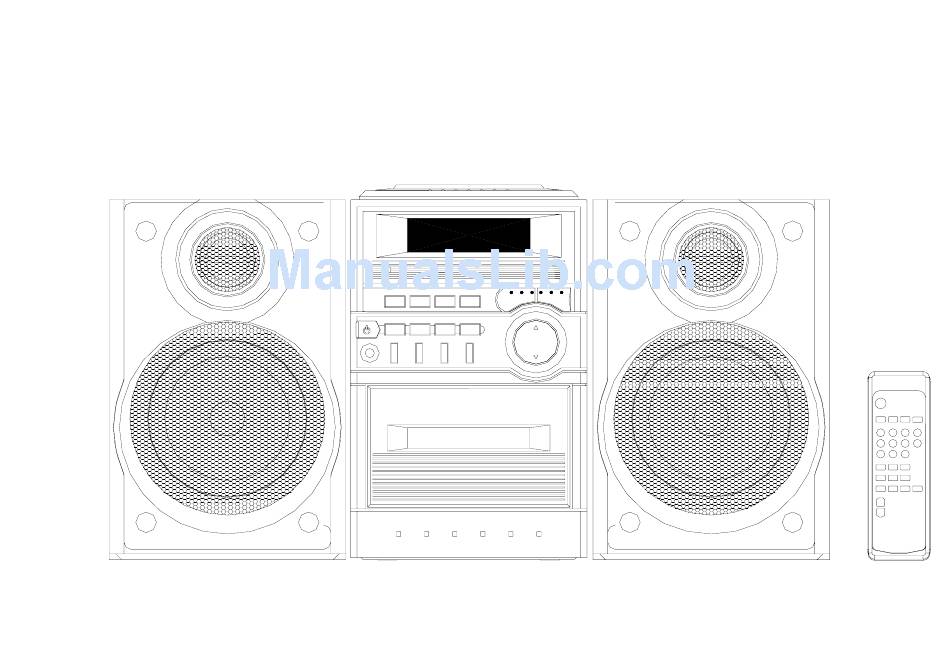

COBY OPERATION MANUAL CX-CD425 MINI CD HOME STEREO SYSTEM WITH AM/FM DIGITAL TUNER... -
Page 2: Safety Precautions
Safety Precautions * This product is designed for use in moderate dimares. Do not use or install this unit where it would be exposed to direct sunlight or in extremely hot temperatures, or near a radiator, stove or appliance that produces heat. * Do not take this unit into the bathroom, or near a swimming pool. -
Page 3: Technical Specifications
Technical specifications General Power Supply AC 230V ~ 50 Hz AC 110V/220V ~ 60/50 Hz (option) Output Power 2.5 Watt RMS per channel 5.0 Watt RMS per channel (option) Main Unit Dimension 220 (L) X 160 (W) X 250 (H) mm Speaker Box Dimension 197 (L) X 160 (W) X 246 (H) mm Net Weight... -
Page 4: Preparation For Use
Preparation for use Carefully unpack the unit from its carton (do not attempt to connect anything at this stage). You should have the following items: Packing included 1. This User Guide. 2. Main Unit with built in AC plug. 3. Two Speakers Box. 4. -
Page 5: Location Of Controls
Location of Controls FRONT VIEW DN / REW T UNE R S E N S O R S T A N D B Y RA NDO M M EM O RY DI SPLAY SLEEP/ TI M E PLA Y/ P AU SE STO P / B AN D RE PEAT M UTE... -
Page 6: Side View
Location of Controls (Cont.) SIDE VIEW REAR VIEW... - Page 7 Location of Controls (Cont.) 1. PAUSE BUTTON 2. STOP & EJECT BUTTON 3. FAST FORWARD BUTTON 4. REWIND BUTTON 5. PLAY BUTTON 6. RECORDING BUTTON 7. CASSETTE COMPARTMENT 8. VOLUME DOWN : Press to adjust sound level down. 9. VOLUME UP : Press to adjust sound level up. 10.
- Page 8 Location of Controls (Cont.) Remote Control (28 Keys) Front View POW ER REPEAT MUTE FUN CTION M-UP MEMORY R ANDOM INTRO DI SPLAY SLEEP TIMER STOP/ PLAY/ SKI P / SEARC H PAUSE BAN D VOLUME 1.POWER : ON/OFF-Standby button Rear View 2.MUTE : Press to muting the sound.
-
Page 9: General Operation
GENERAL OPERATION POWER ON When power is connected for the first time, or if the power cord was unplugged and reconnected: - The STANDBY LED lights, and the LCD panel appears Clock Time as follows : - Press the POWER button. The STANDBY LED turns off and the unit defaults to the FM band of tuner mode. -
Page 10: Timer Operation
GENERAL OPERATION (CONT.) TIMER OPERATION To set the wake-up timer - Press the POWER button to turn the unit off STANDBY - Press DISPLAY button. The TIMER indicator appears on the LCD and flashes. Press MEMORY button the hour segment flashes. - Press the Skip/Search >>... -
Page 11: Using The Cassette Player
Using the Cassette Player LISTENING TO TAPE Stop/Eject button - Press to stop all deck operations. Press again to open the Cassette Doors. Fast Forward Button - Press to start rapid tape Fast winding in forward direction. Fast Rewind Button - Press the to start rapid tape Fast winding in reverse direction. Play Button - Press to start playing a tape. -
Page 12: Using The Cd Player
Using the CD Player LOADING/PLAYING DISCS - Press Power Button to switch On the unit. - Press the CD Button to select CD mode. - Open the CD door by hand gentlely. Do not force open the CD door by hand at any time. - Place the CD in the compartment with the label side facing upwards. - Page 13 Using the CD Player (Cont.) Programmed track selection You can set your Mini Tower System to play a selection of tracks from your disc. To select specific tracks Make sure there is no CD playing. Press the MEMORY Button once . The LCD Display the desired number to program. Press Skip/Search Forward or Backward to display the track number you want.
- Page 14 Using the CD Player (Cont.) To repeat a programmed selection Refer to section titled "Programmed Track Selection" on previous page and select your tracks. Press Play/Pause Button to play your first selected track. Press the REPEAT Button twice to repeat a particular track once. The 'Repeat 1' LED indicator light up.
-
Page 15: Troubleshooting
TROUBLESHOOTING Before requesting service, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, please consult your dealer for instruction. Problem Checkpoint No operation...
