NetUP Streamer HD v3 8-24x
User manual
9 November 2022
15224 Alton rd., Miami Beach, 33140, FL, USA
info@netup.tv
|
http://netup.tv

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Streamer HD v3 8-24x and is the answer not in the manual?

Questions and answers

Summary of Contents for NetUP Streamer HD v3 8-24x

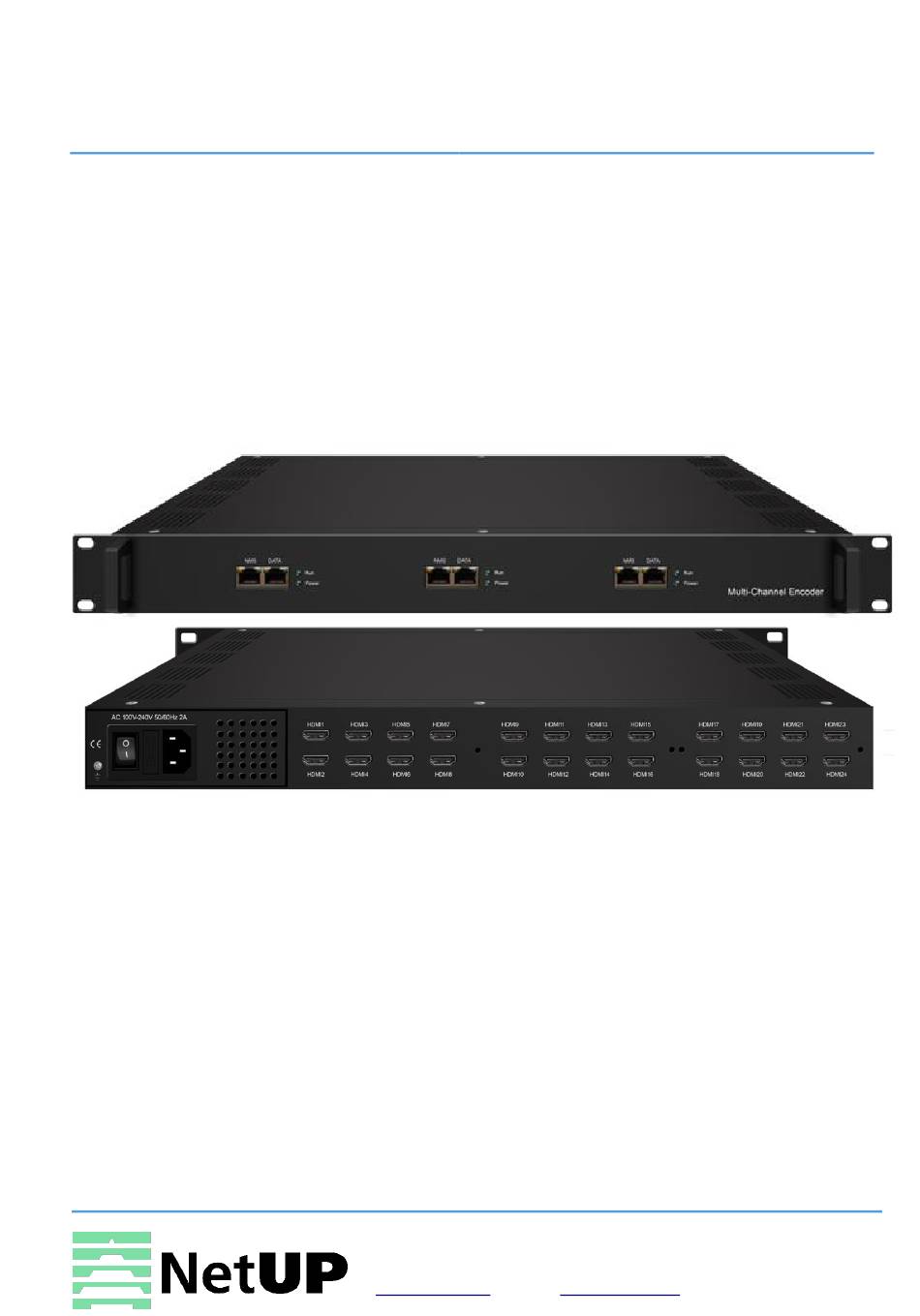

  • Page 1 NetUP Streamer HD v3 8-24x User manual 9 November 2022 15224 Alton rd., Miami Beach, 33140, FL, USA info@netup.tv http://netup.tv...
  • Page 2: Table Of Contents

    NetUP Streamer HD v3 8-24x. User manual Contents Chapter 1 Product Introduction ......................3 1.1 Outline ............................3 1.2 Main Features ..........................3 1.3 Principle Chart (Each Encoder Module)..................4 1.4 Specifications ..........................4 1.5 Appearance and Illustration ......................5 Chapter 2 Installation Guide ........................
  • Page 3: Chapter 1 Product Introduction

    Chapter 1 Product Introduction 1.1 Outline NetUP Streamer HD v.3 is a professional HD/SD audio & video encoding device. It has 8/16/24 HDMI inputs for option. Every 8 HDMI ports share one encoder module with each module supporting 1MPTS and 8 SPTS output. Its high integration and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.
  • Page 4: Principle Chart (Each Encoder Module)

    1.3 Principle Chart (Each Encoder Module) HDMI #1 MPEG4 AVC/H.264 Encoding HDMI #2 MPEG4 AVC/H.264 Encoding HDMI #3 MPEG4 AVC/H.264 Encoding 1 MPTS and 8 SPTS HDMI #4 MPEG4 AVC/H.264 Encoding ASI out(Optional) HDMI #5 MPEG4 AVC/H.264 Encoding As copy of MPTS HDMI #6 MPEG4 AVC/H.264 Encoding HDMI #7...
  • Page 5: Appearance And Illustration

    Chinese and English language System function Ethernet software upgrade Dimension 482mm×328mm×44mm (W×L×H) 0~45℃ (work);-20~80℃ (Storage) Environment Miscellaneous Power AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz requirements 1.5 Appearance and Illustration Front Panel Illustration: 1U chassis (three encoder modules) illustration: Module 3 NMS and Data port and indicators Data Port (for IP Signal Output) NMS (Network Management Port)
  • Page 6 Rear Panel Illustration: Grounding Pole Power Switch and socket Module 1: HDMI 1-8 Module 2: HDMI 9-16 Module 3: HDMI 17-24...
  • Page 7: Chapter 2 Installation Guide

    2.1 Acquisition Check When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items:  NetUP Streamer HD v.3  Power Cord  HDMI cables If any item is missing or mismatching with the list above, please contact local dealer.
  • Page 8: Wire's Connection

    5~40℃ (sustainable ),0~45℃ (short time), Environment Temperature installing air-conditioning is recommended Relative 20%~80% sustainable 10%~90% short time Temperature Pressure 86~105KPa Installing rubber strip for sealing door-gaps and dual level Door & Window glasses for window Wall It can be covered with wallpaper, or brightness less paint. Fire Protection Fire alarm system and extinguisher Requiring device power, air-conditioning power and lighting...
  • Page 9: Signal Cable Connection

    1Ω. Caution: Before connecting power cord to NetUP Streamer HD v.3, user should set the power switch to “OFF”. 2.4 Signal Cable Connection The signal connections include the connection of input signal cable and the connection of output signal cable.
  • Page 10: Chapter 3 Web Nms Operation

    Chapter 3 WEB NMS Operation NetUP Streamer HD v.3 does not support front buttons and LCD, users can only control and set the configuration in computer by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from the NetUP Streamer HD v.3 IP address; otherwise, it would cause IP conflict.
  • Page 11: Operation

    3.2 Operation When we confirm the login, it will display the WELCOME interface as Figure-2. System information User can click any item here to enter the corresponding interface to check information or set the parameters. Figure-2 Parameters →Encoder Encode Channel 1-8: From the menu on upper side of the web page, clicking “Enc CH 1-8”, it will display the each encode channel information of the program from the HDMI input port as Figure-3.
  • Page 12 Parameters →IP Stream NetUP Streamer HD v.3 supports TS to output in IP (8 SPTS) format through the DATA port. When users click “IP Stream”, it will display the interface as Figure-4 where to set IP out parameters. (For Data 1000M GE port)
  • Page 13 Parameters →OSD Clicking “OSD”, it will display the interface where to configuration the OSD parameters as Figure-5/6/7. Select to configure logo, caption or QRcode Select program1-8 to apply the logo insertion, or you can select “all” to apply all programs Click here to confirm the LOGO you selected Browse and select the Logo which has...
  • Page 14 Put the QRcode everywhere Input the QRcode URL here Browse and select the QRcode which has been created Figure-7 System→ Network: Clicking “Network”, it will display the interface as Figure-8 where to set NMS and DATA parameters. Figure-8 System → Account: Clicking “Account”, it will display the screen as Figure-9 where to set the login account and password for the web NMS.
  • Page 15 Figure-9 System → Configuration: Clicking “Configuration”, it will display the screen as Figure-10 where to save/ restore/factory set/ backup/ load your configurations. Figure-10...
  • Page 16 System → Firmware: Clicking “Firmware”, it will display the screen as Figure-11 where to update firmware for the encoder. Figure-11 System → Date/Time: Clicking “Date/Time”, it will display the screen as Figure-12 where to set date and time for the device. Figure-12...
  • Page 17 System → Log: Clicking “Log”, it will display the log interface as Figure-13 where to check or export the Kernel/System log. Figure-13...
  • Page 18: Chapter 4 Troubleshooting

    Chapter 4 Troubleshooting Check the following before troubleshooting:  Whether the server room is well ventilated and hot air from the back panel of the device is effectively removed?  Does the supply voltage meet the power requirements of the device? ...
