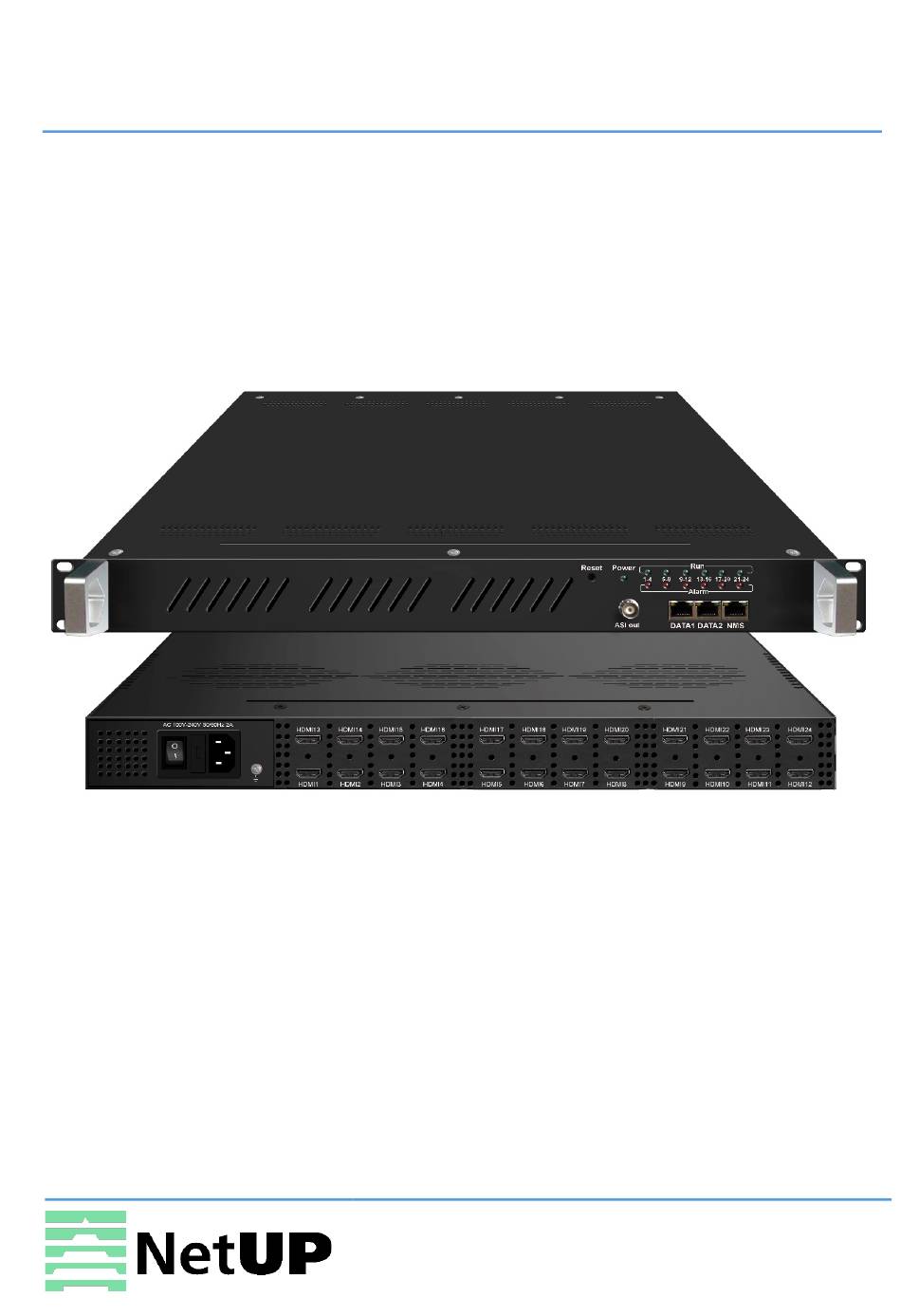

- Page 1 NetUP Streamer HD v2 8-24x User manual 20 March 2019 1/7, Ulofa Palme str., Moscow, Russia +7 (495)510-1025 | info@netup.tv | http://netup.tv...
-
Page 2: Table Of Contents
NetUP Streamer HD v2 8-24x. User manual Contents Introduction ................3 Appearance and illustration ....................3 Specifications ......................... 5 Installation guide ..............6 Device’s installation flow chart ....................6 Packing list check ........................6 Safety instructions ......................... 6 Environment requirement ..................... 7 Grounding requirement ...................... -
Page 3: Introduction
NetUP Streamer HD v2 8-24x. User manual Introduction NetUP Streamer HD v2 8-24x is a professional HD audio & video encoding and multiplexing device. It has 12 HDMI (8/16/20/24 HDMI optional) video input interfaces, supporting MPEG-4 video encoding and MPEG 1 Layer 2 audio encoding. This device can simultaneously encode 12(8/16/20/24 HDMI optional) channel HD audio &... - Page 4 NetUP Streamer HD v2 8-24x. User manual Rear panel: Power switch, fuse, power socket and grounding pole 24 HDMI input...
-
Page 5: Specifications
NetUP Streamer HD v2 8-24x. User manual Specifications Input 12 HDMI inputs (8/12/16/20/24 input optional) Encoding MPEG-4 AVC/H.264 Resolution input 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i output 1920×1080_30P, 1920×1080_25P, Video 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P Bitrate 1Mbps~13Mbps (each channel) Rate control... -
Page 6: Installation Guide
NetUP Streamer HD v2 8-24x. User manual Installation guide Device’s installation flow chart Connecting Packing list Installing grounding Connecting Setting Running check device wire and signal cable parameter device power cord Before installing and connecting the device, carefully read the environment and... -
Page 7: Environment Requirement
NetUP Streamer HD v2 8-24x. User manual Environment requirement Item Requirement Room space When installing a rack in the room, make sure the distance between two rows of racks is 1.2~1.5m and the distance to the wall must be at least 0.8m. -
Page 8: Web Nms Operation
IP conflict The default IP address of NetUP Streamer HD v2 8-24x is 192.168.0.136. Thus, set the computer’s IP address to 192.168.0.X, where X can be from 0 to 255, except 136. Open a web browser, enter the device’s IP address in the browser address bar and press Enter. -
Page 9: Summary → Status
NetUP Streamer HD v2 8-24x. User manual Summary → Status After login, you will get the Status page which displays the current system status (Figure-2). Use this menu to System information navigate between the interface pages Figure-2 Parameters → Module 1-6 This encoder supports up from 2 to 6 modules with 8/12/16/20/24 HDMI input. -
Page 10: Parameters → Ts Config
NetUP Streamer HD v2 8-24x. User manual Parameters → TS Config Use the TS Config page to configure the TS output parameters and select one of the following tabs: Stream Select, General or PID Bypass. Stream Select Select the Stream Select tab to select streams that should be sent to Mux out and to modify program info (Figure-4). - Page 11 NetUP Streamer HD v2 8-24x. User manual Click on a program in the output area to open the Program information window (Figure-5): Figure-5 General Select the General tab to edit common parameter for output streams (Figure-6). Figure-6...
-
Page 12: Parameters → Ip Stream
Select the PID Bypass tab to edit the list of PIDs that should pass through (Figure-7). Figure-7 Parameters → IP Stream NetUP Streamer HD v2 8-24x supports TS to output in IP format through the DATA1 and DATA2 port. Use the IP Stream page to set IP out parameters (Figure-8). Quick config... -
Page 13: Parameters → Osd
NetUP Streamer HD v2 8-24x. User manual Parameters → OSD Use the OSD page to configure the OSD parameters and select one of the following tabs: Logo, Caption or QRCode. Logo Select a tab Select a module and a program for applying a logo or select “ALL”... - Page 14 NetUP Streamer HD v2 8-24x. User manual Caption Write your text here Figure-10 QRCode Figure-11...
-
Page 15: System → Network
NetUP Streamer HD v2 8-24x. User manual System → Network Use the Network page to edit networking parameters (Figure-12). Confirm changes Figure-12 System → Password Use the Password page to change current password and username (Figure-13). Confirm changes Figure-13... -
Page 16: System → Configuration
NetUP Streamer HD v2 8-24x. User manual System → Configuration Use the Configuration page to save or restore the system configuration, to work with backups, to return to the factory settings and to load the configuration file (Figure-14). Figure-14 System → Firmware Use the Firmware page to update firmware for the device (Figure-15). -
Page 17: System → Date | Time
NetUP Streamer HD v2 8-24x. User manual System → Date | Time Use the Date | Time page to set date and time for the device (Figure-16). Figure-16 System → Log Use the Log page to see system logs (Figure-17). -
Page 18: Troubleshooting
NetUP Streamer HD v2 8-24x. User manual Troubleshooting Check the following before troubleshooting: Whether the server room is well ventilated and hot air from the back panel of the device is • effectively removed? Does the supply voltage meet the power requirements of the device? •...
