Summary of Contents for Embention VERONTE MCS
- Page 1 Embention Oct 27, 2022...
-
Page 3: Table Of Contents
CONTENTS 1 Introduction Applications ..........2 Quick Start First Steps . - Page 5 CONTENTS...
- Page 6 CONTENTS...
-
Page 7: Introduction

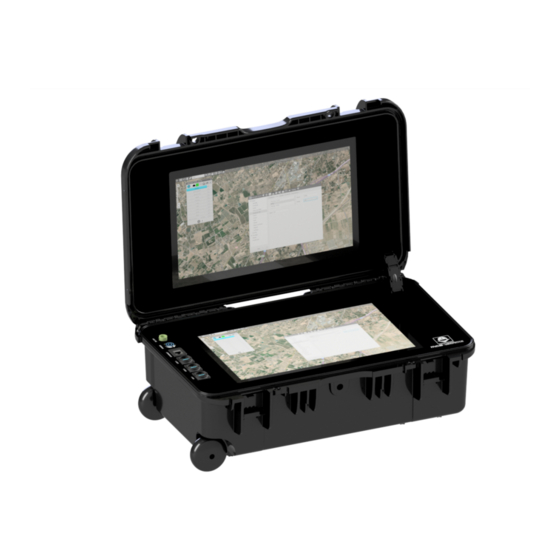

CHAPTER INTRODUCTION Multimedia Control Station Veronte is the components division from Embention, which has developed the control station MCS for high performance operations. This portable control station gives the operator a ready-to-use system which can be run outdoor with Veronte... -
Page 8: Applications
1.1 Applications Veronte MCS is the main control station in use for Veronte system operations. This system is available with a standard configuration which fits all operational requirements for each application. The main applications that can be develop with this system are: •... -
Page 9: Quick Start
• If you turn off Windows but keep the Power Button On, batteries will keep charging. 2.1.2 How to operate Veronte MCS is a highly intuitive and easy-to-use system. The main steps to operate it are the following ones: • Set your MCS in a firm, stable and dry surface, and proceed opening it. -
Page 10: Led
2.2 Warnings • Veronte MCS is designed according to IP67 for the system to be closed. However, it losses its resistance to water once it is opened. • Do not use chemical cleaners for the maintenance of the product; a wet cloth is enough for cleaning purposes. -
Page 11: Technical
CHAPTER THREE TECHNICAL 3.1 Part List Units Items Veronte MCS Control Station Veronte MCS charger (24V DC) Bluetooth trackpad keyboard Windows activation code written on a card 3.2 Main features • Multi-touch display – 15.4” – Capacitive – Sunlight readable –... -
Page 12: Mechanical Specifications
3.3 Mechanical Specifications Weight 21 kg Size 560x356x229mm (closed) | 560x516x355mm (open) Robust Design IP67 (closed) | High performance & strict design standards Transport Wheeled | Cabin Size Enclosure Polypropylene Temperature -40º to 65º (storage) | -10º to 65º (operation) Harsh Environtments Sunlight, dust, shocks 3.3.1 Dimensions... -
Page 13: Interfaces
3.4 Interfaces Communications Wi-Fi & Bluetooth connections I/O Interfaces 1 x Ethernet | 3 x USB 3.4. Interfaces... - Page 14 Chapter 3. Technical...
-
Page 15: Hardware Installation
CHAPTER FOUR HARDWARE INSTALLATION 4.1 Pinout Veronte MCS comes with our standard integrated connectors, being the following models for each type: Connector Standard Power Amphenol PT02E-10-6P (027) Ethernet Amphenol RJF22B03100BTX USB 3.0 Signal... - Page 16 Chapter 4. Hardware Installation...
-
Page 17: Operation
CHAPTER FIVE OPERATION Note: External keyboard and mouse are recommended for use comfort. 5.1 MCS Interface Parts identification Items Anti-glare tactile 15.4” screens (1080p.) Power connector Power On/Off Ethernet connector 3 USB connectors Battery indicator (windows ON) - Page 18 Chapter 5. Operation...
-
Page 19: Maintenance
CHAPTER MAINTENANCE 6.1 Updates Embention will send periodically by email executable files, which update the system automatically when they are executed. 6.2 Cleaning After each mission, the MCS should be cleanned with a wet cloth (except for connectors, where it must be dry). - Page 20 Chapter 6. Maintenance...
-
Page 21: Contact Data
CHAPTER SEVEN CONTACT DATA You can contact Embention if you need further help and support. Embention contact data is as follows: Email: support@embention.com Telephone: (+34) 965 421 115 Address: Polígono Industrial Las Atalayas, C/ Chelín, Nº 16, CP 03114, Alicante (España).
