Little Seeds 6828350COM Assembly Manual
  1. Manuals
  2. Brands
  3. Little Seeds Manuals
  4. Indoor Furnishing
  5. 6828350COM
  6. Assembly manual

Little Seeds 6828350COM Assembly Manual

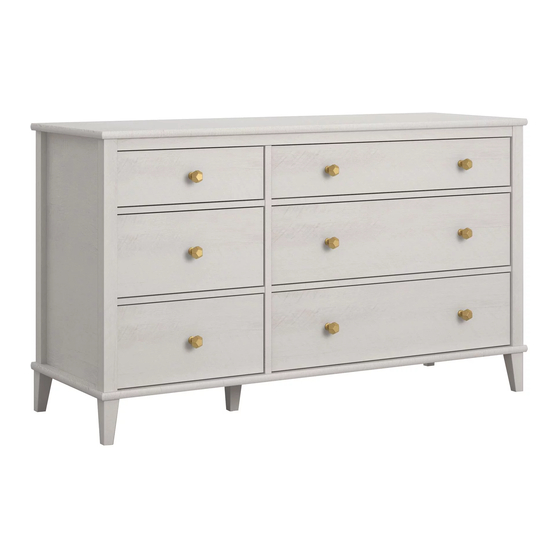

6 drawer dresser
Hide thumbs

Advertisement

Quick Links

Download this manual
B346828350COM0
Date of Purchase __________
Lot Number ______________

Advertisement

loading
Need help?

Need help?

Do you have a question about the 6828350COM and is the answer not in the manual?

Questions and answers

Related Manuals for Little Seeds 6828350COM

Summary of Contents for Little Seeds 6828350COM

  • Page 1 B346828350COM0 Date of Purchase __________ Lot Number ______________...
  • Page 2 - Call 1-800-489-3351 Serious or fatal crushing injuries can occur from tipping furniture. Follow little seeds on WARNING: Manufacturer assumes no liability for improper installation or excessive loads placed on screws or bracket. This wall anchor This product is not intended for commercial use.

  • Page 3: Helpful Hints

    Do NOT return this product! Contact our friendly customer service team first for help. Call us! Assembly Tips 1-800-489-3351 Monday-Friday 9am - 5pm CST Tube Visit littleseedskids.com Helpful Hints - Open your item in the area you plan to keep it for less heavy lifting - Identify, sort and count the parts before attempting assembly - Compression dowels are tapped in with a hammer - Slides are labeled with a R (right) and L (left) for proper placement...
  • Page 4 6828350COM 6 Drawer Dresser Board Identification Partition Left Panel Right Panel 36828015040 36828015011 36828015031 36828015021 Bottom Apron Left Brace Brace 36828015081 36828015050 36828015061 36828015071 BACK Large Drawer Back Drawer Brace Lower Drawer Front Middle Drawer Front 39991167075850B 35538000121 36828319092 36828350102...
  • Page 5 6828350COM 6 Drawer Dresser Board Identification Left Lower Left MIddle Left Upper Upper Drawer Drawer Front Drawer Front Drawer Front Front 36828015132 36828319142 36828350152 36828015162 SIDE Drawer Bottom Left drawer Bottom Large Drawer Side 36828331201 36828331191 39991167346200C BACK SIDE Upper Drawer...
  • Page 6 6828350COM 6 Drawer Dresser Board Identification This piece is paperboard construction. It is not made from wood but is required for the assembly of your unit. BACK BACK Left Upper Drawer Back Back Panel Left Drawer Back 39991120038640B K682800000 39991167038640B This piece is paperboard construction.
  • Page 7 6828350COM 6 Drawer Dresser Board Identification BACK SIDE SIDE BACK SIDE SIDE Left Upper Drawer Left Lower & Middle Drawers Cajón Superior Izquierdo Gavetas Inferiores y Medias Izquierdas Tiroir Supérieur Gauche Gauche Bas et Moyen Tiroirs Note: The only difference between the lower and middle drawers is the color of the drawer fronts (N&O).

  • Page 8: Parts List

    6828350COM 6 Drawer Dresser Parts List Please note: Your model may contain extra hardware. Actual Size #A11080 #A12120 #A12420 #A12800 7/16" flat head 7/16" pan head 5/8" pan head 1" flat head #A21970 drive fastener #A17400 #A13410 #A23030 #A22620 #A22610 7/8"...
  • Page 9 6828350COM 6 Drawer Dresser Parts List Not Actual Size #A52795 knob #A84050 #A54510 #A54520 safety bracket kit drawer bracket drawer bracket right left left right cabinet drawer cabinet drawer member member runner runner #A56770 drawer slide package #A44375 littleseedskids.com...
  • Page 10 6828350COM 6 Drawer Dresser Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, Phillips Head...
  • Page 11 6828350COM 6 Drawer Dresser Step 1 (x4) (x1) (x6) #A13410 #A84050 #A22610 Do not fully tighten this screw in this step. finished edge borde acabado bord fini finished surface superficie acabada surface finie littleseedskids.com...
  • Page 12 6828350COM 6 Drawer Dresser Step 2 Quick Assembly (x8) (x8) Proper orientation of CAM LOCK #A22620 #A21660 littleseedskids.com...
  • Page 13 6828350COM 6 Drawer Dresser Step 3 (x9) (x3) #A11080 #A56770 Please Notice: You will use the smallest holes to attach the left cabinet member. finished edge borde acabado bord fini littleseedskids.com...
  • Page 14 6828350COM 6 Drawer Dresser Step 4 (x1) (x2) (x2) #A21660 #A22620 #A22610 Quick Assembly finished edge Proper orientation of CAM LOCK borde acabado bord fini littleseedskids.com...
  • Page 15 6828350COM 6 Drawer Dresser Step 5 (x4) #A12800 Notice pilot holes inside. finished edge borde acabado bord fini littleseedskids.com...
  • Page 16 6828350COM 6 Drawer Dresser Step 6 (x1) (x3) (x4) (x2) (x2) (x9) #A21660 #A56770 #A12800 #A22620 #A22610 #A11080 Assemble the right panel component the same as the left in steps 3,4 & 5. Quick Please Notice: You will use the...
  • Page 17 6828350COM 6 Drawer Dresser Step 7 (x2) (x4) (x1) (x3 each) (x18) #A22620 #A22610 #A21660 #A56770 #A11080 Attach two cam bolts to each surface. Insert two cam locks into holes in right surface as shown. left surface right surface finished edge...
  • Page 18 6828350COM 6 Drawer Dresser Step 8 (x15) (x5) #A12420 #A44375 (x5) #A23030 Top Surface (less holes) Note: If needed, you may need to loosen screws if the holes in the leg do not line up with the three finished edge...
  • Page 19 6828350COM 6 Drawer Dresser Step 9 (x2) #A23030 finished edge borde acabado bord fini littleseedskids.com...
  • Page 20 6828350COM 6 Drawer Dresser Step 10 finished edge borde acabado bord fini finished edge borde acabado bord fini littleseedskids.com...
  • Page 21 6828350COM 6 Drawer Dresser Step 11 (x4) #A23030 Attached left panel (A) to left braces (F) then fasten to bottom (E) with two screws. Attached right panel (B) to braces (G) then fasten to bottom (E) with two screws. littleseedskids.com...
  • Page 22 6828350COM 6 Drawer Dresser Step 12 littleseedskids.com...
  • Page 23 6828350COM 6 Drawer Dresser Step 13 (x36) #A21110 2 people are required for this step. Carefully turn the unit over onto its front side as shown. Assure that the unit is square. Distance from corner to corner must be equal as shown.
  • Page 24 6828350COM 6 Drawer Dresser Step 14 (x4) (x8) #A54510 #A54520 #A12120 Attach the drawer brackets to each drawer front with the screws shown. The smaller drawer bracket (17) will attach to the smaller drawer fronts (M and P). littleseedskids.com...
  • Page 25 6828350COM 6 Drawer Dresser Step 15 (x12) #A12120 You will be assembling three drawers. They all assemble in the same manner. The only difference is the drawer fronts. You will have three left drawer fronts (M,N,0). Attach the smaller drawer sides to the drawer front (M) with screws (1) as shown. Be sure the groove in the drawer sides are centered with the groove in the drawer front.
  • Page 26 6828350COM 6 Drawer Dresser Step 16 You will need to tap with a hammer to fasten. #A21970 Left Upper Drawer Back BACK Left Drawer Back SIDE BACK finished surface superficie acabado surface fini finished surface superficie acabado surface fini SIDE...
  • Page 27 6828350COM 6 Drawer Dresser Step 17 (x3) (x3) (x3 each) (x3) (x12) #A52795 #A52535 #A56770 #A17400 #A11080 SIDE SIDE SIDE SIDE Two different knobs have been provided. Attach your preference with screws. littleseedskids.com...
  • Page 28 6828350COM 6 Drawer Dresser Step 18 (x3) (x3) #A21520 #A22620 This part will be used on the three drawers on the right side of your unit. Quick Assembly Proper orientation of CAM LOCK littleseedskids.com...
  • Page 29 6828350COM 6 Drawer Drsser Step 19 (x12) (x3) #A12120 #A22610 You will be assembling three drawers. They all assemble in the same manner. The only difference is the drawer fronts. You will have three right drawer fronts (P,I,J). Attach the smaller drawer sides to the drawer front (P) with screws (1) as shown. Be sure the groove in the drawer sides are centered with the groove in the drawer front.
  • Page 30 6828350COM 6 Drawer Dresser Step 20 SIDE SIDE SIDE SIDE littleseedskids.com...
  • Page 31 6828350COM 6 Drawer Dresser Step 21 You will need to tap with a hammer to fasten. #A21970 Upper Drawer Back BACK raw surface superficie cruda surface non-fini Large Drawer Back BACK SIDE raw surface superficie cruda surface non-fini SIDE littleseedskids.com...
  • Page 32 6828350COM 6 Drawer Dresser Step 22 (x6) (x6) (x12) (x6) (x3 each) #A52795 #A52535 #A11080 #A17400 #A56770 Two different knobs have been provided. Attach your preference with screws. SIDE SIDE SIDE SIDE littleseedskids.com...
  • Page 33 6828350COM 6 Drawer Dresser Step 23 For Masonry, Concrete, or other wall materials: Consult your local hardware store for appropriate anchors to securely attach the safety bracket. (x1) #A84050 IMPORTANT: THIS UNIT MUST BE SECURE TO THE WALL TO HELP PREVENT TIPOVER. FOLLOW THESE INSTRUCTIONS TO INSTALL THE ANTI-TIPPING SAFETY BRACKET PROVIDED WITH THIS PRODUCT.
  • Page 34 6828350COM 6 Drawer Dresser Step 24 Notice, the drawer bracket holes are slotted. Drawer fronts can be adjusted by loosening screws, making needed adjustments and retightening screws. roller cabinet member rodillo corredera de mueble rouleau coulisse du cabinet drawer runner deslizador de cajón...
  • Page 35 6828350COM 6 Drawer Dresser MAXIMUM LOADS This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 75 lbs. 34 kg 35 lbs. 15.8 kg 15 lbs.
  • Page 36 Certificate of Conformity 1. This certificate applies to the Dorel Home Furnishings, Inc. product identified by this instruction manual. 2. This certificate applies to compliance of this product with the CPSC Ban on Lead-Containing Paint (16 CFR 1303). 3. This product is distributed by: Dorel Home Furnishings, Inc. 410 East First Street South Wright City, MO 63390 636-745-3351...
  • Page 37 Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You" to all of our customers for taking the time to assemble this Little Seeds product, and to give us your valuable feedback. littleseedskids.com...
  • Page 38 6828350COM Cajonera de 6 Cajones Consejos Útiles (página 3) - Abra su artículo en el área donde usted planea utilizarlo para evitar levantar y moverlo menos - Identificar, ordenar y contar las piezas antes de intentar ensamblar - Las clavijas de compresión se golpean con un martillo - Las diapositivas están marcadas con una R (derecha) y L (izquierda) para la colocación correcta...
  • Page 39 6828350COM Cajonera de 6 Cajones Paso 5 Dese cuenta de los agujeros de adentro. Paso 6 Ensamble el componente del panel derecho de la misma forma como el izquierdo en los pasos 3, 4, & 5. Observe por favor: Usted utilizará los agujeros más pequeños para atar el miembro derecho del gabinete.
  • Page 40 6828350COM Cajonera de 6 Cajones Paso 13 2 Personas son requeridas para este paso. Cuidadosamente voltee la unidad hacia enfrente come es mostrado. Asegúrese que la unidad este escuadrada. Distancia de esquina a esquina deben estar iguales come es mostrado.
  • Page 41 6828350COM Cajonera de 6 Cajones Paso 18 Esta parte será usada en los tres cajones de la derecha de la unidad. Paso 19 Usted va a montar tres cajones. Todos se reúnen de la misma manera. La única diferencia son los frentes de los cajones.
  • Page 42 6828350COM Cajonera de 6 Cajones Paso 23 Para mampostería, hormigón u otros materiales de la pared: Consulte a su ferretería local para los anclajes apropiados para fijar firmemente el soporte de seguridad. #A84050 IMPORTANTE: ESTA UNIDAD DEBE SER ASEGURADA CON LA PARED PARA PREVENIR VOLQUEO. SIGA ESTAS INSTRUCCIONES PARA INSTALAR EL SOPORTE DE SEGURIDAD ANTIVOLQUEO SUMINISTRADO CON ESTE PRODUCTO.
  • Page 43 6828350COM Cajonera de 6 Cajones Paso 24 Note, que los agujeros del soporte del cajón están perforados. La parte de enfrente de los cajones pueden ser ajustadas sin aflojan los tornillos, haga los ajustes necesarios y apriete los tornillos otra vez.
  • Page 44 6828350COM Cajonera de 6 Cajones CARGA MAXIMA Esta unidad ha sido diseñada para soportar la carga máxima anotada. El exceder estos límites puede causar inestabilidad, colapsarse y/o causar serias lesiones. 75 lbs. 34 kg 35 lbs. 15.8 kg 15 lbs.
  • Page 45 Visite el sitio web de su tienda local, califique su comprado y denos sus comentarios! Gracias Nos gustaría enviar un gran "Agradecimiento" a todos nuestros clientes por tomarse el tiempo de ensamblar este producto de Little Seeds, y por darnos sus valiosos comentarios. littleseedskids.com...

  • Page 46: Avant De Commencer

    6828350COM Commode à 6 Tiroirs Astuces Utiles (page 3) -Ouvrez votre article dans la zone que vous prévoyez de le garder pour moins de levage lourd -Identifier, trier et compter les pièces avant d'essayer d'assembler -Les goujons de compression sont taraudés avec un Marteau -Les glissières sont marquées d'un R (droit) et d'un L (gauche) pour un bon placement...
  • Page 47 6828350COM Commode à 6 Tiroirs Étape 5 Remarquez les trous pilotes à l'intérieur Étape 6 Assemblez la composante du panneau droit de la même manière que celle de gauche dans les étapes 3, 4 & 5. Veuillez noter: Vous allez utiliser les plus petits trous pour fixer le membre droit de l'armoire Étape 7...
  • Page 48 6828350COM Commode à 6 Tiroirs Étape 13 2 personnes sont requises pour cette étape. Tournez soigneusement le meuble sur le côté avant comme montré. Assurez-vous que le meuble est à l'équerre. La distance d'un coin à l'autre doit être égale comme montré.
  • Page 49 6828350COM Commode à 6 Tiroirs Étape 18 Cette pièce sera utilisé sur les trois tiroirs sur le côté droit de votre meuble. Étape 19 Vous se réuniront trois tiroirs. Ils sont tous assemblent de la même manière. La seule différence est les façades.
  • Page 50 6828350COM Commode à 6 Tiroirs Étape 23 Pour la maçonnerie, béton ou d'autres matériaux de mur: Consultez votre magasin local de matériel pour les ancrages appropriés pour fixer le support de #A84050 sécurité. IMPORTANT: CET APPAREIL DOIT ÊTRE FIXÉ AU MUR POUR AIDER À PRÉVENIR LE BASCULEMENT.
  • Page 51 6828350COM Commode à 6 Tiroirs Étape 24 Remarquez, les trous du support du tiroir sont fendus. Les façades du tiroir peuvent être ajustées en desserrant les vis, faire les ajustements nécessaires et resserrez les vis. littleseedskids.com...
  • Page 52 6828350COM Commode à 6 Tiroirs CHARGES MAXIMALES Ce meuble a été conçu pour supporter les charges maximales indiquées. En excédant ces limites de charge, le meuble pourrait devenir instable, s’effondrer, et/ou causer des blessures graves. 75 lbs. 34 kg 35 lbs.
  • Page 53 Visitez le site Web de votre détaillant local, évaluez votre produit acheté et laissez-nous quelques commentaires ! Nous tenons à offrir un grand "Merci" à tous nos Merci! clients pour avoir pris le temps d'assembler ce produit "Little Seeds", et de nous donner vos commentaires précieux. littleseedskids.com...
