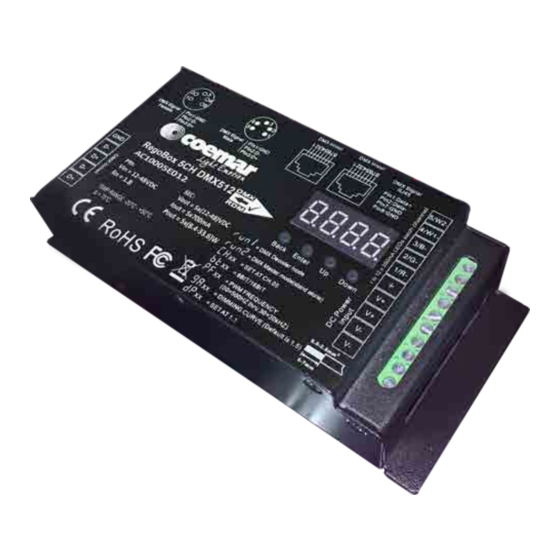

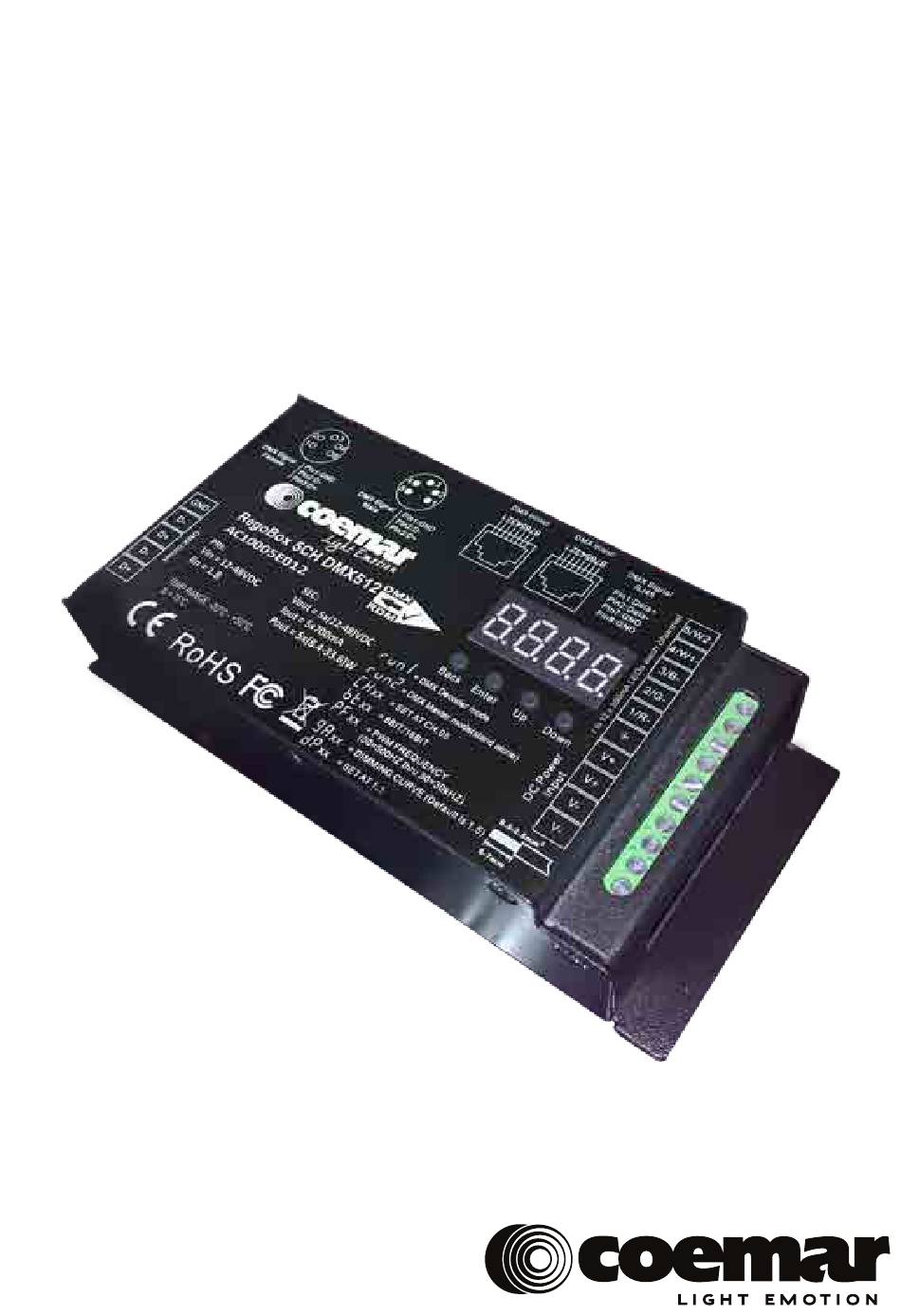

- Page 1 RegoBox 5CH DMX512...
- Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your RegoBox 5CH DMX512: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.
-
Page 3: Table Of Contents
Italiano Index 1. Packaging and transportation ..........................Pag. 4 1.1 Packaging ................................Pag. 4 1.2 Transportation ..............................Pag. 4 2. General information .............................. Pag. 4 2.1 Safety informations ............................Pag. 4 2.2 Warranty conditions ............................Pag. 5 2.3 EC norms ................................. Pag. 5 3. -
Page 4: Packaging And Transportation
Italiano Congratulations on having purchased a Coemar product. You have assured yourself of a fixture of the highest quality, both in componentry and in the technology used. We renew our invitation to you to complete the service information on the previous page, to expedite any request for service information or spares (in case of problems encountered either during, or subsequent to, installation). -
Page 5: Warranty Conditions
Italiano 3. The level of technology of RegoBox 5CH DMX512 requires the use of specialized person- nel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector. Never connect the fixture if there is no earth connection. -
Page 6: Product Specifications
Italiano . Product specifications Technical characteristics DC Power: 12 V - 48 V Max output current 5 x 350 mA or 5 x 700 mA 5 x (4.2 - 16.8) W, 350 mA version Max power consumption 5 x (8.4 - 33.6) W, 700 mA version DMX In/Out ports RJ45, XLR IP rating... -
Page 7: Connections
Italiano Connections... -
Page 8: Operations
Italiano . Operations Buttons introduction Up, Down button is for menu selection. After power on the decoder, if keep on clicking Up button, you will find below menu on display: A.XXX Means DMX address factory defaults setting is 001. CH.00 Means DMX channels quantity factory defaults setting is Ch05 BT.XX Means Bit (8bit or 16bit). -
Page 9: Dmx Charts
Italiano DMX charts DMX address 001, CH01 DMXConsole Slider number dp 1.1 dp 2.1 DMX channel for all output for all output dimming dimming for all output no use micro dimming DMX address 001, CH02 DMXConsole Slider number dp 1.1 dp 2.1 dp 3.2 DMX channel... -
Page 10: Dmx Address 001, Ch04
Italiano DMX address 001, CH04 DMXConsole Slider number dp 1.1 dp 2.1 dp 5.4 dp 6.4 DMX channel for output for output for output for output 1 dimming 1 dimming 1 dimming 1 dimming for output for output for output for output 2 dimming 1 micro dimming... -
Page 11: Maintenance
If necessary, replace the worn parts. . F.A.Q. and answers The following list shows common issues that may be easily solved. If issues persist, the unit must be repaired by qualified personnel or just contact your Coemar service near you. Question Possible solution Projector not powered on: •... - Page 12 Italiano User notes ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 13 Italiano Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
- Page 14 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italia tel. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
