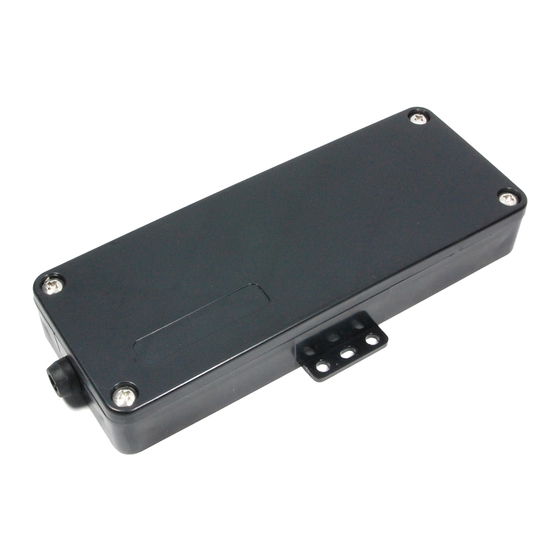

- Page 1 HTSC-F02 In-Line Optic Splice Closure Installation Guide...
- Page 2 NOTES: 1. Please read the user’s guide before installation. 2. Please pay attention while sealing the cable ports, the inappropriate installation would affect the performance.
-
Page 3: Table Of Contents
List of Contents 1. General introduction ………………………………………………………….. Page 3 2. Basic structure and configuration ………………………………………. Page 3 3. Product illustration ………………………………………………………….. Page 3 4. Preparation for installation …………………………………….….………. Page 4 5. Application ……………………………………………………………………….. Page 6 6. FOSC inspecting and testing items ……………………………………. Page 6 7. -
Page 4: General Introduction
General introduction HTSC-F02 is fiber optic splice closure equipment for multiple uses, which can contact and branch cables. It has 2 inlet port. Device can apply for wall mounting environments. The goods can use in different area and come with perfect sealing, easy installation and indeed our cover made of super strength material and temperature proof. -
Page 5: Preparation For Installation
Preparation for installation Preparation 4.1.1 Check the model of closure, accessories and specification of optical fiber cables before installation. 4.1.2 Keep all components and accessories dry and tidy for proper installation. 4.1.3 Keep the working place clean and flat for easy installation 4.1.4 Use the proper equipment and tools during the installation. - Page 6 4.3.4 Insert the fiber to the splice protective sleeve and fasten with nylon tie. Fibers spliced and protection with sleeve 4.4.1 Insert each fiber to each splice protective sleeve. 4.4.2 Splicing the fibers which have the same serial numbers 4.4.3 Heat shrink the fibers after all are spliced and then fix on the slot.
-
Page 7: Application
The installation of the Body 4.7.1 Put the Cover and the Bottom in alignment. 4.7.2 Screw the screws with wrench. Application Wall mounting application 6. FOSC inspecting and testing items Inspecting Technical Requirements Inspecting type item Routine test Type test (Before leaving factory) Package... - Page 8 Fiber storage The fibers reserved are to be winded in fiber optic At least 3 sets device splice tray (FOST), the length of fibers housed in sampled each time FOST is >1.6m, the curved radius is >30mm. During the installation and maintenance, there should be no attenuation on fibers.
-
Page 9: Customer Service
≧ 2×10 MΩ. Customer service Should you have any questions or suggestions, please do not hesitate to contact your local supplier. Maahantuoja / Imported by Orbis Oy www.orbis.fi Tuotenumero / Orbis product code: 3010387...
