Summary of Contents for sewerin FERROPHON FG 150

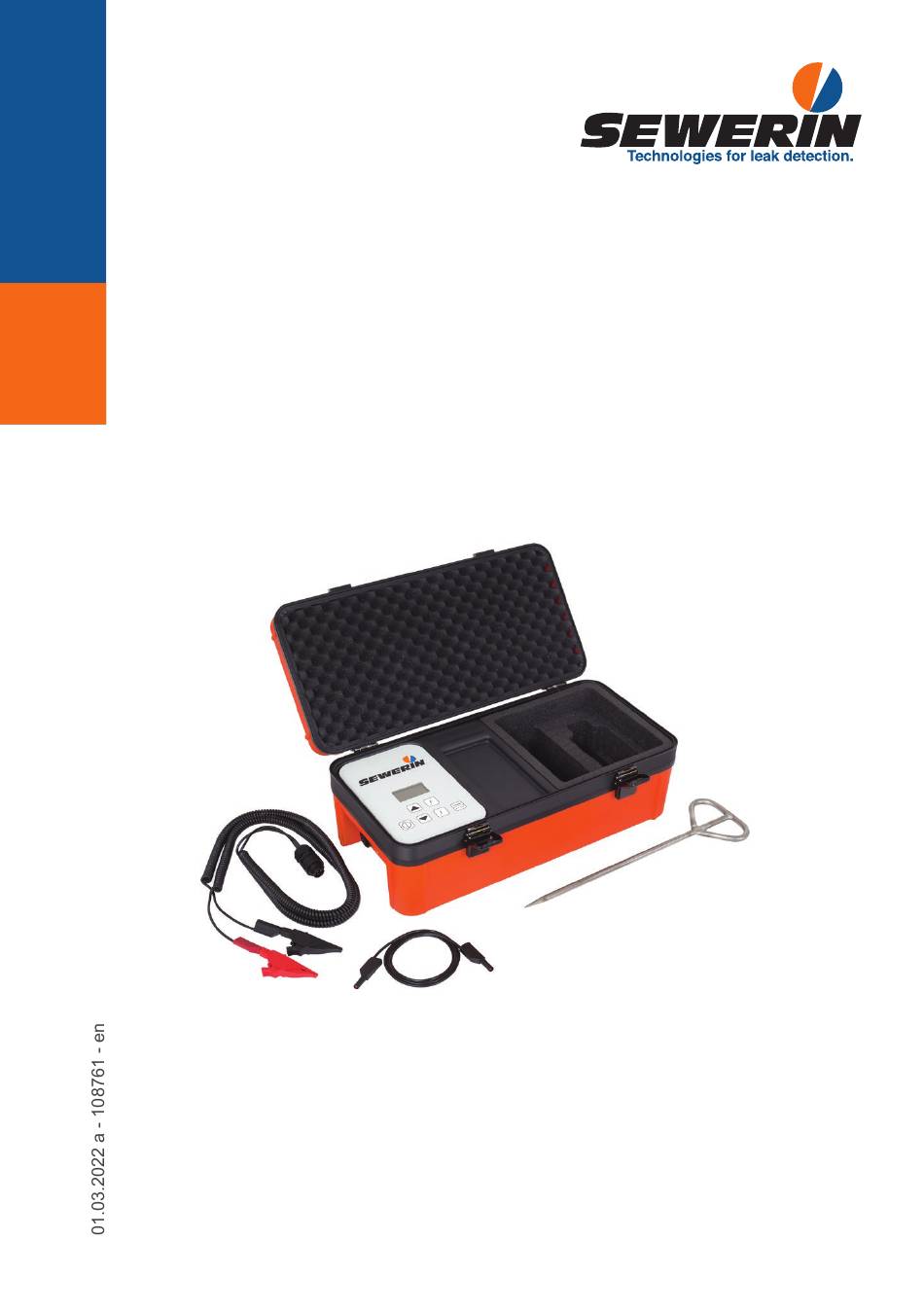

- Page 1 FERROPHON ® FG 150 generator Operating Instructions...
- Page 2 FG 150 generator Control panel Cable set port Charging socket Fig. 1: FG 150 generator with opened case Fig. 2: Case with earthing spike (view from below)
- Page 3 FG 150 generator Display Arrow keys ● Up key ● Down key Frequency keys Pulse button ON/OFF key Fig. 3: Control panel Signal strength Frequency Current Signal behaviour (here: continuous signal) State of charge Fig. 4: Display with main view...
- Page 4 Illustration of warnings in this document WARNING! Risk of personal injury. Could result in serious injury or death. CAUTION! Risk of personal injury. Could result in injury or pose a risk to health. NOTICE! Risk of damage to property.
-
Page 5: Table Of Contents
Introduction ................1 Information about this document ..........1 Purpose ..................1 Intended use ................1 Safety information ..............2 Product description ..............3 General ..................3 Ports ..................3 Settings and adjustments ............3 2.3.1 Frequencies ................4 2.3.2 Signal strength ...............5 2.3.3 Signal behaviour ..............7 Power supply ................7 Energizing a pipeline ..............8 3.1 Switching the generator on and off..........8... - Page 6 Declaration of conformity ............21 Advice on disposal ..............22 Index ..................23 II │ Contents...
-
Page 7: Introduction
Translations are produced to the best of our knowledge. The original German version is authoritative. Right of reproduction No part of this document may be edited, duplicated or circulated in any form without the express consent of Hermann Sewerin GmbH. Registered trademarks Registered trademarks are generally not indicated in this docu- ment. -
Page 8: Safety Information
● Use the product only as intended. ● Do not make any changes or modifications to the product un- less these have been expressly approved by Hermann Sew- erin GmbH. ● Only use accessories approved by Hermann Sewerin GmbH. ● Always observe the permitted operating and storage temper- atures. ● Handle the product carefully and safely, both during transport and when working. -
Page 9: Product Description
Product description General The FG 150 generator can energize electroconductive pipelines directly or indirectly. A continuous or pulsed alternating current is transmitted. The frequency and signal strength of the generator can be adapted to local conditions. To locate a pipeline energized by the generator, a receiver is re- quired whose reception frequency can be brought into line with the generator's transmission frequency. -
Page 10: Frequencies
To energize a pipeline, adjustments must be made to allow for the particular local requirements: ● Frequency ● Signal strength ● Signal behaviour When switching off, the frequency is saved; signal strength and signal behaviour are not saved. The following settings are saved permanently: ● Activation state of the frequencies (deactivated/activated) ● Individually added frequencies 2.3.1 Frequencies Various preset frequencies are available for energizing (sec-... -
Page 11: Signal Strength
requency list Frequency list 3 512 Hz < 200 Hz < 640 Hz 200 Hz x 1100 Hz 200 Hz x 8192 Hz 200 Hz X 9950 Hz 200 Hz Frequency list view - List of frequencies Fig. 5: Frequency activated, deactivation possible Frequency activated, deactivation not possible Frequency deactivated, activation possible Left image:... - Page 12 Current in energized pipelines In energized pipelines, the current is limited by the generator: ● Continuous signal: max. 0.5 A ● Pulsed signal: max. 1 A If these values are already reached at medium signal strength, the generator does not increase the actual signal strength any further. This also applies if the Up key is pressed further and an increased signal strength is then displayed.
-
Page 13: Signal Behaviour
Fig. 7: Main view Left image: Signal strength in ES1 range (safe-to-touch range) Right image: Signal strength in ES2 range (Notice symbol) 2.3.3 Signal behaviour The generator can optionally be operated with the following sig- nal behaviour: ● Continuous signal ●... -
Page 14: Energizing A Pipeline
Energizing a pipeline WARNING! Danger of electrical shock! High voltages may be present at exposed parts of pipe- lines. ● Always observe the current rules when working near live pipelines. ● Do not touch any live parts (e. g. terminals, fittings, earthing spike) during direct energizing. -
Page 15: Setting The Frequency
Setting the frequency 3.2.1 Selecting the frequency The frequency for energizing must always be adapted to the local conditions. Note: The generator and receiver must operate at the same frequency. ● Adjust the frequency of the receiver to the frequency of the generator. -
Page 16: Adding A Frequency
3. Deactivate or activate the desired frequencies. a) Press the arrow keys to select a frequency. b) Press the pulse key to deactivate or activate the selected frequency. Frequency activated Frequency deactivated c) Press the On/Off key to apply the setting. 4. Press the Down key repeatedly until the main view appears again. -
Page 17: Adjusting The Signal Strength
3. Press the Down key until the Frequency list 3 view appears (fig. 5, right image). 4. Use the arrow keys to select a placeholder to be overwritten with an individual frequency. 5. Press the ON/OFF key. The placeholder is marked with Edit (fig. 4). -
Page 18: Selecting The Signal Behaviour
Selecting the signal behaviour On the generator it is possible to select between continuous sig- nal and pulsed signal. The generator is switched on. The display shows the main view. ● Press the pulse key to switch between continuous signal and pulsed signal. -
Page 19: Connection With Earthing Spike
● Always be especially careful when working with the earthing spike, especially in the vicinity of other per- sons. ● Avoid dropping the earthing spike. The earthing spike is placed in the ground. SEWERIN recom- mends: The distance from the earthing spike to the pipeline should be at least 3 m. 3 Energizing a pipeline │ 13... -
Page 20: Energizing A Pipeline Indirectly
Fig. 10: Energizing with earthing spike 1 Electrical connection to the pipeline to be located 2 Generator 3 Earthing spike 1. Make sure that the generator is switched off. 2. Connect the cable set to the generator. 3. Insert the earthing spike firmly into the ground. 4. Attach a clamp to the earthing spike. 5. - Page 21 Fig. 11: Indirect energizing - alignment of the generator to the pipeline 1 Energized pipeline 2 Generator 3 Electromagnetic field The generator is switched off. 1. Place the generator as accurately as possible lengthways over the pipeline to be located. 2. Switch on the generator. In the main view, the Indirect energizing icon appears. 3.
-
Page 22: Maintenance
Maintenance Recharging the battery The battery of the generator must be charged when necessary. The typical charging time is less than 7 hours. Always observe the permitted temperature range during charg- ing. If the temperature falls below or exceeds the limit values, charging stops until the temperature returns to within the per- mitted range. -
Page 23: Care
● Then allow the case to dry in a suitable environment with the lid open. Maintenance SEWERIN recommends: Have the generator serviced regularly by SEWERIN Service or an authorised professional. Only regular servicing can ensure that the generator is always ready for use. 4 Maintenance │ 17... -
Page 24: Troubleshooting
Troubleshooting Problem Possible cause Corrective action Generator cannot Power supply insuf- Recharge battery be switched on. ficient On/Off key pressed Press On/Off key for too briefly at least 1 s Energizing does Cable not electri- — not work cally conductive Cable set defective Replace defective cable set Cable set not con- Check connections nected correctly... -
Page 25: Appendix
Appendix Technical data Device data Dimensions (W × D × H) 500 × 260 × 190 mm Weight 8.3 kg Material ABS (housing) Certificates Certificate Features Display FSTN, 2″, 240 × 128 pixels, LED backlight Processor DSP 16 bit Control membrane keypad with 6 keys Operating conditions Operating temperature -15 –... -
Page 26: Preset Frequencies
Detection Transmitting frequency • direct energizing: 512 Hz / 640 Hz / 1.100 kHz / 8.192 kHz / 9.950 kHz / 32.768 kHz / 41.666 kHz / 65.536 kHz / 83.078 kHz / 116.000 kHz can also be set to any frequency between 200 Hz - 116.000 kHz. -
Page 27: Symbols On The Display
ZL05-10200 Other accessories are available for the FERROPHON system. Please contact the SEWERIN sales department for further in- formation. Declaration of conformity Hermann Sewerin GmbH hereby declares that the FG 150 gen- erator fulfils the requirements of the following guidelines: ● 2011/65/EU ● 2014/30/EU ● 2014/35/EU The complete declaration of conformity can be found online. - Page 28 The European Waste Catalogue (EWC) governs the disposal of devices and accessories in accordance with EU Directive 2014/955/EU. Waste EWC code Device 16 02 13 Rechargeable battery 16 06 05 Alternatively, devices can be returned to Hermann Sewerin GmbH. 22 │ 5 Appendix...
- Page 29 Index Adjustments 3 Rechargeable battery charging 16 deep discharge 17 Care 17 Clean display 17 Conductor loop 12 Safety information 2 Connecting Scope of delivery 3 via conductor loop 13 Sendefrequenz siehe Frequenz with earthing spike 12 Settings 3 Signal behaviour 7 setting 12 Signal strength 5 Direct energizing 12...
- Page 30 Fax.: +351 234 024 446 Tel.: +34 91 74807-57 www.sewerin.com Fax: +34 91 74807-58 info@sewerin.pt www.sewerin.com info@sewerin.es Sewerin Sp. z o.o. Sewerin Ltd. ul. Twórcza 79L / 1 Hertfordshire 03-289 Warszawa, Polska Tel.: +48 22 675 09 69 Phone: +44 1462-634363 Tel.
