Summary of Contents for sewerin FERROPHON FG 50

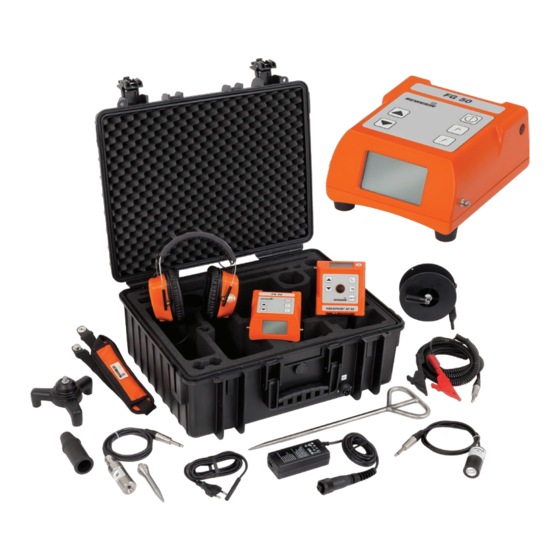

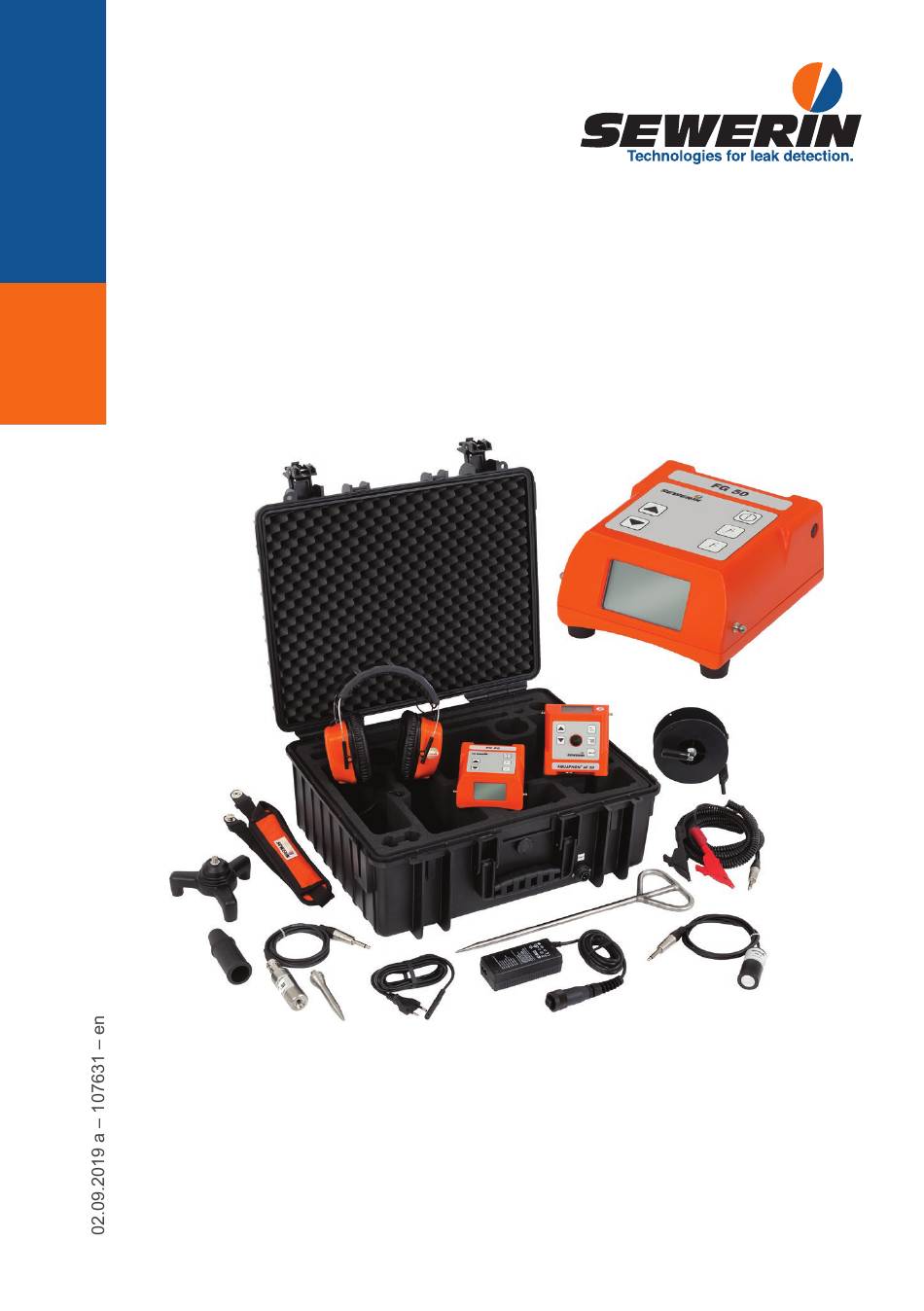

- Page 1 FERROPHON ® FG 50 generator Operating Instructions...
- Page 2 FG 50 generator ON/OFF key Arrow keys ● Up key Frequency keys ● Down key Display Charging socket Cable set connection Fig. 1: FG 50 generator viewed from various angles...
- Page 3 FG 50 generator Output power Frequency Current Charge Fig. 2: Display with main view...
- Page 4 Illustration of warnings in this document WARNING! Risk of personal injury. Could result in serious injury or death. NOTICE! Risk of damage to property.
-
Page 5: Table Of Contents
Introduction ................1 Information about this document ..........1 Purpose ..................1 Intended use ................2 Safety information ..............2 Product description ..............3 Operating principle ..............3 Ports ..................3 Power supply ................3 2.3.1 Powered by rechargeable battery ..........3 2.3.2 External power supply ............4 Using the generator ..............5 3.1 Switching the generator on and off..........5 Energize line ................5... -
Page 6: Introduction
Translations are produced to the best of our knowledge. The original German version is authoritative. Right of reproduction No part of this document may be edited, duplicated or circulated in any form without the express consent of Hermann Sewerin GmbH. Registered trademarks Registered trademarks are generally not indicated in this docu- ment. -
Page 7: Intended Use
● Observe all the applicable safety standards and accident pre- vention regulations. ● Use the product only as intended. ● Do not make any changes or modifications to the product un- less these have been expressly approved by Hermann Sewerin GmbH. ● Only use accessories and consumables approved by Hermann Sewerin GmbH. -
Page 8: Product Description
Product description Operating principle The FG 50 generator can be used to directly energize electrically conductive lines. The generator is designed for use in buildings. An alternating current is sent. Transmitting frequency and output power are selected depending on the local conditions. The frequency and power can be set on the generator. -
Page 9: External Power Supply
There are parts in the receiver that can be damaged mechan- ically or by electrostatic discharge when changing the battery. ● Only SEWERIN service personnel or other authorised special- ists may replace the lithium ion rechargeable battery. WARNING! Risk of explosion due to short-circuit Faulty lithium ion rechargeable batteries can explode due to internal short-circuit. -
Page 10: Using The Generator
Using the generator Switching the generator on and off Switching on ● Press the ON/OFF key for approx. 1 second. A start screen with the firmware version will appear briefly on the display. The main view then appears. Switching off ● Press the ON/OFF key for approx. 2 seconds. The generator switches off. -
Page 11: Connection With Earthing Spike
The earthing spike is placed outside of buildings in the ground. The distance from the earthing spike to the line must be at least 3 metres. The electrical conductivity of the ground is improved by moisture. SEWERIN recommends: Moisten the ground if nec- essary. 6 │ 3 Using the generator... - Page 12 Fig. 4: Direct galvanic connection with earthing spike WARNING! Risk of injury from electric shock High voltages can be applied to exposed parts of the lines. ● Never connect the terminals of the cable set to lines that are already live. ●...
-
Page 13: Set Frequency
3.2.4 Set frequency The generator can transmit with different frequencies. The op- tions are: − 512 Hz − 1.1 kHz − 9.95 kHz ● Press one of the two frequency keys to set the frequency. Increase frequency Reduce frequency Note: The generator and receiver must be of the same frequency. ●... -
Page 14: Stop Energizing
power any further. This also applies if the Up key continues to be pressed and the output power symbol then displays an in- creased output power. ● Press the Up key to increase the output power. ● Press the Down key to reduce the output power. 3.2.6 Stop energizing Once the locating process has been completed, the following... -
Page 15: Maintenance
Maintenance Charging the batteries The rechargeable battery of the FG 50 generator must be charged, if necessary. The typical charging time is less than 6 hours. The battery is protected against overcharging. Therefore the gen- erator can be left connected to the power supply once it is fully charged. -
Page 16: Charging Batteries Individually Using The Ac/Dc Adapter Or Vehicle Cable
SK 10 case Fig. 5: White circles: Connection cable Black arrow: Connection socket (on the outside) 1. Place the components in the dedicated spaces in the case. 2. Connect the components using the connection cables. 3. Connect the case to the power supply using the L AC/DC adapter or the L vehicle cable. -
Page 17: Handling Faulty Lithium Ion Rechargeable Batteries
● The lithium on battery may only be removed if you have legit- imate grounds to suspect that the battery may be defective. ● Only SEWERIN Service personnel or an authorized specialist may replace rechargeable batteries. 4.2.1... -
Page 18: Removing The Battery
4.2.2 Removing the battery The rechargeable battery is located in the generator. The upper part and the lower part of the housing are screwed together. NOTICE! Risk of damage There are parts in the generator that may be damaged mechan- ically or by electrostatic discharge when removing the battery. -
Page 19: Servicing
(e.g. acidic or abrasive constituents) to clean the display sur- face. SEWERIN recommends: Always remove significant contamina- tion immediately. Servicing SEWERIN recommends: Have the FG 50 generator serviced regularly by SEWERIN Service or an authorized professional. Only regular maintenance can ensure that the generator is al- ways ready for use. Dealing with problems... -
Page 20: Appendix
Appendix Technical data Device data Dimensions (W x D x H) 115 x 114 x 60 mm Weight 410 g Material polycarbonate (housing) Certificate Certificate FCC, CE Features Display 2" FSTN display (240 x 128 pixels, LED backlight) Processor DSP 16 bit Operation membrane keypad Operating conditions Operating temperature -20 –... -
Page 21: Accessories
ZD63-10000 Other accessories are available for the system. Please contact the SEWERIN sales department for further information. Declaration of conformity Hermann Sewerin GmbH hereby declares that the FG 50 gener- ator fulfils the requirements of the following guidelines: ● 2014/30/EU ● 2006/95/EC The complete declaration of conformity can be found online. -
Page 22: Advice On Disposal
The European Waste Catalogue (EWC) governs the disposal of appliances and accessories in accordance with EU Directive 2014/955/EU. Waste EWC code Device 16 02 13 Disposable battery, rechargea- 16 06 05 ble battery Alternatively, used equipment can be returned to Hermann Sewerin GmbH. 5 Appendix │ 17... -
Page 23: Index
Index Charging socket 3 Rechargeable battery see Lithium ion Connecting rechargeable battery via conductor loop 6 with earthing spike 5 Connection Set frequency 8 charging socket 3 Setting the output power 8 set of cables 3 Switching off 5 Switching on 5 Dealing with problems 14 Display c Earthing spike 6... - Page 24 Hermann Sewerin GmbH SEWERIN SARL Robert-Bosch-Straße 3 17, rue Ampère – BP 211 33334 Gütersloh, Germany 67727 Hoerdt Cedex, France Tel.: +49 5241 934-0 Tél. : +33 3 88 68 15 15 Fax: +49 5241 934-444 Fax : +33 3 88 68 11 77 www.sewerin.com...
