Page 1: User Manual

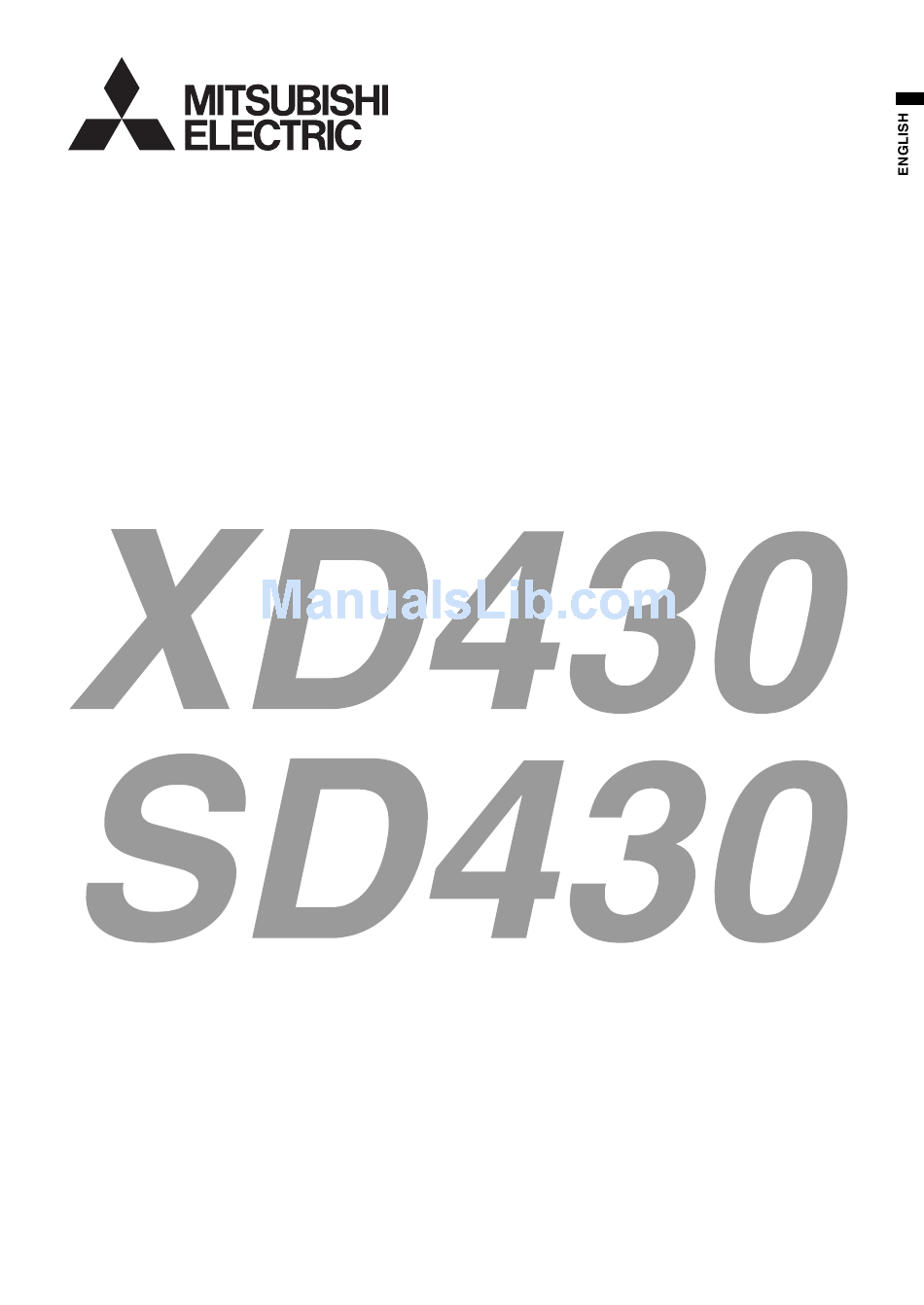

DATA PROJECTOR MODEL XD430U SD430U User Manual This User Manual is important to you. Please read it before using your projector. - Page 2 TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUT- LET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. NOTE: SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE. WARNING Use the attached specified power supply cord.
-
Page 3: Table Of Contents
Lamp replacement ...22 Troubleshooting ...23 Indicators ...26 Specifications ... 27 Declaration of Conformity Model Number : XD430U/SD430U Trade Name : MITSUBISHI ELECTRIC Responsible party : Mitsubishi Digital Electronics America, Inc. 9351 Jeronimo Road, Irvine, CA 92618 U.S.A Telephone number : +1-(949) 465-6000 This device complies with Part 15 of the FCC Rules. -
Page 4: Important Safeguards
Water and moisture Do not use this projector near water or in contact with water. Accessories Do not place this projector on an unstable cart, stand, tripod, bracket or table. - Page 5 Never put any heat-producing device under the projector to pre- vent the projector from being overheated. • Do not install the projector at a place that is unstable or subject to vibration. • Do not install the projector near any equipment that produces a strong magnetic field.
-
Page 6: Overview
Overview Control panel Terminal board EN-6 FOCUS ring ZOOM ring Control panel Air outlet grille Remote control sensor (Front) Air inlet grille Air inlet grille Terminal board Air inlet grille 10 Speaker 11 Adjustment feet (front) 12 Adjustment feet (rear) 13 Lock bar 14 Foot Adjustment button (Front) Power button... -
Page 7: Bottom Side
Bottom side Remote control This model does not have this function. Lamp cover Adjustment feet (rear) Adjustment feet (front) Caution: Do not replace the lamp immediately after using the pro- jector because the lamp would be extremely hot and it may cause burns. -
Page 8: Remote Control
The maximum operation distance of the remote control is about 10 m (or about 32 feet) when the remote control is pointed at the remote control sensor of the projector. When the remote control is pointed to the screen, the distance from the remote control to the projector via the screen should be 5 m or less. -
Page 9: Installation
Put a hard board under the pro- jector to facilitate ventilation. • Place the projector at least 50 cm (or 20 inch) away from the wall to prevent the air inlet grille and the air outlet grilles that emit hot air from being blocked. -
Page 10: Basic Connections
Make sure that the connected device is turned off before starting connection. • Plug in the power cords of the projector and the connected devices firmly. When unplugging, hold and pull the plug. Do not pull the cord. • When the projector and the connected devices are located too close to each other, the projected image may be affected by their interference. - Page 11 • After connecting a computer supporting this standard to this terminal, plug the power cord of the projector in the wall outlet first, and then boot up the computer.
-
Page 12: Preparation
Remove the lens cap. Warning: • Do not look into the lens directly when the projector is on. • The lens cap is for protecting the lens. If you leave the lens cap on the lens with the projector turned on, it may be deformed because of heat build-up. -
Page 13: Basic Operation
• If the power cord is unplugged from the wall outlet before the projector is cooled down completely after use, the fans may start rotating when the power cord is plugged in next time and the POWER button may not function. In this case, wait for the fans to stop and press the POWER button to light the indicator. - Page 14 The lamp can’t be lit again for one minute after turned off for safety purpose. It will take another one minute for the STATUS indicator to go out. If you want to turn on the projector again, wait until the indicator goes out, and then press the POWER button.
-
Page 15: Menu Operation
Menu operation IMAGE CONTRAST BRIGHTNESS WHITE ENHANCE COLOR TEMP. COLOR TINT SHARPNESS GAMMA MODE INSTALLATION AUTO POWER ON AUTO POWER OFF SPLASH SCREEN BACK COLOR LAMP MODE IMAGE REVERSE FEATURE MENU POSITION CINEMA MODE VIDEO SIGNAL ANAMORPHIC PASSWORD FUNCTION LANGUAGE RESET ALL SIGNAL HORIZ.POSITION... - Page 16 BLACK, which will be displayed when there is no signal input from the source. the projector operating noise is reduced, resulting in a longer lamp replacement interval. • When the lamp mode is switched, the projected image may flicker. This is not a product malfunc- tion.
- Page 17 HORIZ. POSITION... Use to adjust the horizontal position of the image. VERT. POSITION ... Use to adjust the vertical position of the image. FINE SYNC..Use to synchronize the projector with the PC input signal TRACKING... Use to eliminate image noise such as wide stripes.
-
Page 18: Image Adjustment
Image adjustment Image adjustment You can adjust the image using the IMAGE menu. opt. IMAGE CONTRAST BRIGHTNESS WHITE ENHANCE COLOR TEMP. COLOR TINT SHARPNESS GAMMA MODE To control the white-to-black level of the image : Adjust CONTRAST in the IMAGE menu. Press the increase the contrast and the button to reduce it. -
Page 19: Adjustment Of The Image From The Computer
Adjustment of the image from the computer This projector adjusts the format of the video signal supplied from the computer. However, sometimes images are not projected correctly owing to the type of the computer used. When the image from the computer isn’t projected correctly, press the AUTO POSITION button. -
Page 20: Advanced Feature
Advanced feature Still To stop the motion in the image temporarily (or to display a still image): Press the STILL button on the remote control. • The image will freeze temporarily. To resume the motion in the image: Press the STILL button on the remote control again. Important: •... -
Page 21: Password Function
Password function This projector is equipped with the password function that is designed for prevention of wrong operation by children and restriction on operation by other than specified users. MENU ACCESS ... All the buttons except for the POWER button on the projector are disabled. -
Page 22: Lamp Replacement
• Be sure not to drop the lamp lid screw into the projector. Also be sure not to put metal or any flammable objects inside because it may cause fire or electric shock. If any objects should fall inside, unplug and contact your dealer. -
Page 23: Troubleshooting
• If the projector was turned off before the lamp cooled down completely, the fans may start rotating and the POWER button may not function when you plug the power cord into the wall outlet next time. Wait for the fans to stop and press the POWER button to turn on the lamp again. -
Page 24: Images Aren't Projected Correctly
Adjust the projector and the screen so that they are perpendicular to each other. (See page 12.) • This symptom is normal for a DLP projector and is not a malfunction. (A very small number of pixels may stay lit or out, but such symptom is not a malfunction. Pixels of 99.99% or more are effective.) •... - Page 25 Cleaning of the projector and the ventilation slots Use a soft cloth to clean the projector and the ventilation grilles. When the grilles become dirty, wipe them with a soft cloth dampened with diluted mild detergent, and then wipe them with a dry cloth.
-
Page 26: Indicators
Indicators This projector has two indicators, each of which shows the operation condition of the projector. The following offer solutions to possible problems. If these problem persist, turn the projector off and consult your dealer. STATUS indicator Normal condition POWER... -
Page 27: Specifications
40 - 300 inch (aspect ratio 4:3) Resolution:640x400 (Expand) - 1024x768 (Real) - 1280x1024 (Compress) (XD430U) PC compatibility Resolution:640x400 (Expand) - 800x600 (Real) - 1024x768 (Compress) (SD430U) Sync on Green available NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM, PAL-60... - Page 28 EU 02552-0066-01 for UK 02552-0065-01 1 RGB cable for PC 02552-0072-00 1 VIDEO cable 02552-0068-00 Replacement part (Option / Not included in the box) Spare lamp (for XD430U/SD430U) (VLT-XD430LP) EN-28 COMPUTER IN/OUT (Mini D-SUB 15-pin) Spec. pin No. R(RED)/C G(GREEN)/Y...
- Page 29 Some computers aren’t compatible with the projector. • The projector’s maximum resolution is 1024 x 768 pixels (800 x 600 pixels for SD430U). It may not display images of higher reso- lutions than 1024 x 768 (or 800 x 600) correctly. •...
- Page 30 MITSUBISHI Projector Contact Information North America MESCA (Mitsubishi Electric Sales Canada Inc.) http://www.mitsubishielectric.ca Information Technologies Group, 4299 14th Avenue, Markham, Ontario L3R 0J2, Canada Sales & Technical Inquires Phone :+1-(800) 450-6487 :+1-(905) 475-7958 E-mail :projectors@mitsubishielectric.ca Customer Care E-mail :support@mitsubishielectric.ca MDEA (Mitsubishi Digital Electronics America, Inc.) (Warranty Registration) http://www.mitsubishi-presentations.com/...
