KITCHEN FAUCET WITH SIDE SPRAY
26-K82CS-CH-AV – Polished chrome finish
PACKAGE AND HARDWARE CONTENTS
PART
DESCRIPTION
A
Faucet body
B
Side spray assembly
C
Mounting nut
SAFETY INFORMATION
Please read and understand this entire manual before attempting to
assemble, operate or install the product.
WARNING
• Protect your eyes with safety glasses when cutting or soldering water
supply lines.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare
parts with package and hardware contents list. If any part is missing or damaged,
do not attempt to assemble the product. Contact customer service for
replacement parts.
Estimated Assembly Time: 30 minutes
Tools required for assembly (not included): adjustable wrenches, groove joint
pliers, pipe wrench, Phillips screwdriver, supply lines, thread seal tape, silicone.
Need Help? Please call our toll-free line at (877) 319-3757 (7:30 am to 4:30 pm CST) for additional assistance or service.
Homewerks Worldwide, LLC • Lake Bluff, IL 60044 • HomewerksWW.com
QUANTITY
1
1
2
CAUTION
• If you solder the joints during installation, the seats, cartridges, and washers
must be removed before using a flame or the warranty will be voided on
these parts.
• Cover the drain to avoid losing parts.
Installation may vary depending on how the previous faucet was installed. Supplies
necessary for the installation of the faucet are not all included; however, they
are available wherever plumbing supplies are sold.
Prior to beginning installation, turn off the hot and cold water lines, then turn
on the old faucet to release built-up pressure. When installing the new faucet,
hand tighten the connector nuts. DO NOT OVERTIGHTEN. Connections
that are too tight will reduce the integrity of the system.
A
B
C
11-26-2019
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Homewerks Worldwide AquaVista 26-K82CS-CH-AV
Summary of Contents for Homewerks Worldwide AquaVista 26-K82CS-CH-AV
- Page 1 Phillips screwdriver, supply lines, thread seal tape, silicone. Need Help? Please call our toll-free line at (877) 319-3757 (7:30 am to 4:30 pm CST) for additional assistance or service. 11-26-2019 Homewerks Worldwide, LLC • Lake Bluff, IL 60044 • HomewerksWW.com...
- Page 2 PRODUCT SPECIFICATIONS Max. Flow Rate: 1.8 GPM (6.81 LPM) at 60 PSI Washerless cartridges ASME A112.18.1/CSA B125 Manufactured to include no more than 0.25% weighted average lead content on wetted surfaces NSF 61-9 Polished chrome finish Total weight of item: 2.16 lbs. ASSEMBLY INSTRUCTIONS Turn off water at the supply valve To connect the water supply, use...
- Page 3 CARE AND MAINTENANCE Clean periodically with a soft cloth. Avoid abrasive cleaners, steel wool, and harsh chemicals as these will dull the finish and void your warranty. OPERATING INSTRUCTIONS Rotate the handle counterclockwise for cold water. Rotate the handle counterclockwise for hot water. The degree of handle opening determines the volume of water flow.
- Page 4 REPLACEMENT PARTS For replacement parts, call our customer service department at (877) 319-3757, 7:30 a.m. - 4:30 p.m., CST, Monday - Friday. PART DESCRIPTION PART # Hot index button RP10028 Cold index button RP10029 Screw RP50013 Handle RP13305 Bonnet RP70435 Washer RP64124 Cartridge...
Need help?
Do you have a question about the AquaVista 26-K82CS-CH-AV and is the answer not in the manual?
Questions and answers

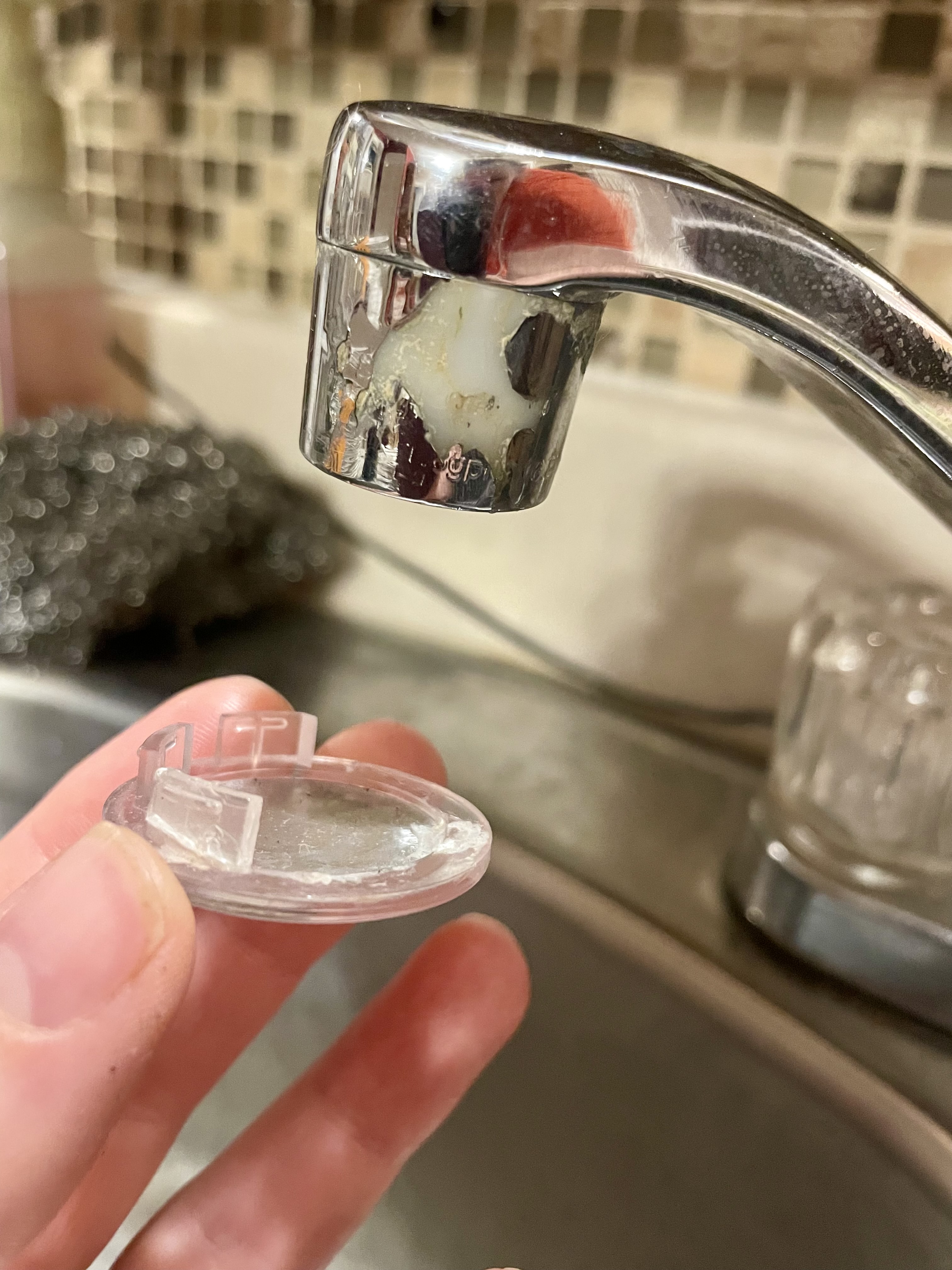

Is it possible to purchase a replacement hot index cap as mine had tabs broken off and now won’t stay on the tap. And also wanted to purchase a replacement chrome part that is screwed on the faucet because the chrome is peeling off revealing the plastic underneath.
