Homewerks Worldwide AQUA VISTA 10SHO1H-CH-AV Manual

TUB AND SHOWER FAUCET
10SHO1H-CH-AV – Polished chrome finish

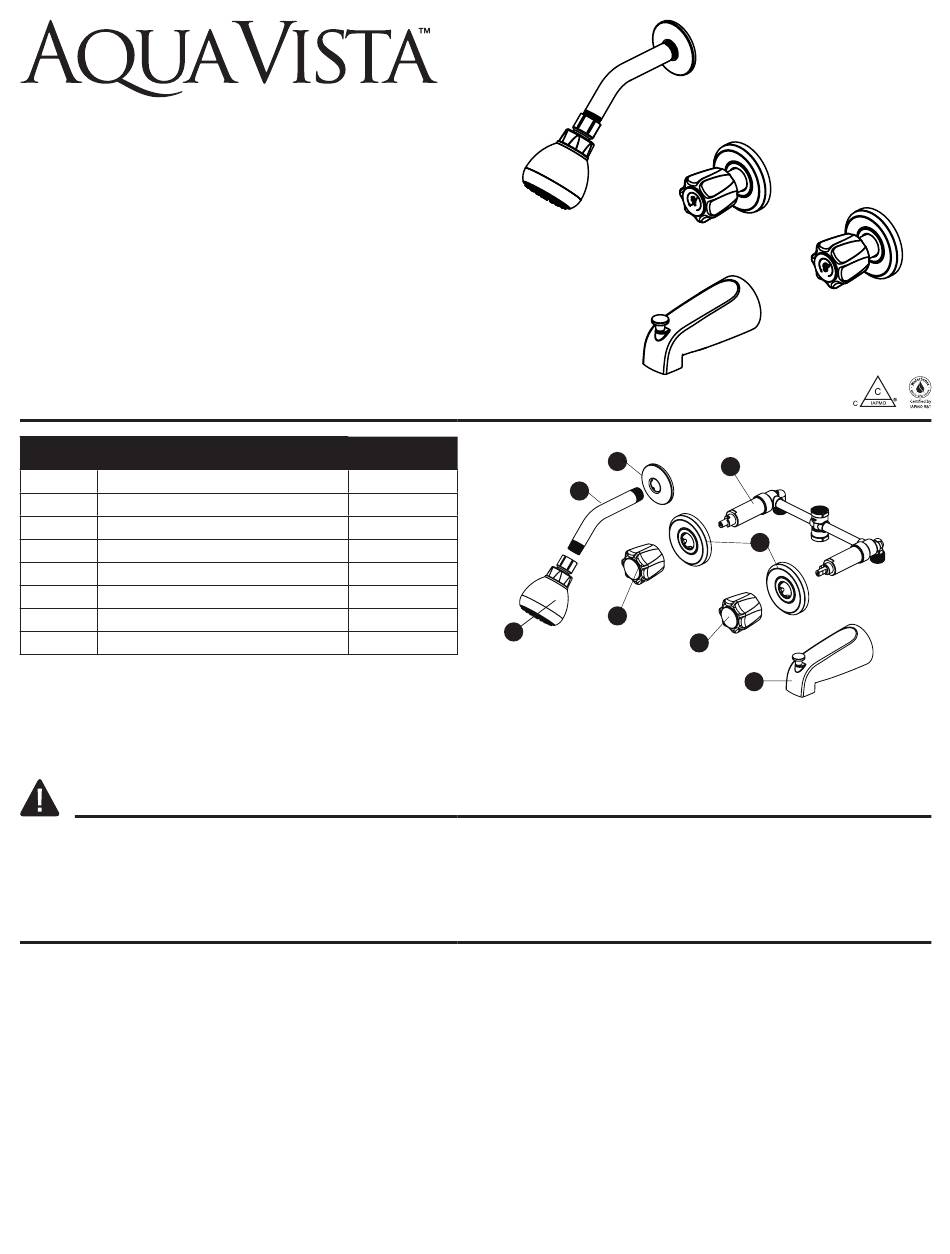

PACKAGE AND HARDWARE CONTENTS
PART DESCRIPTION
A Shower head
B Shower arm
C Shower arm flange
D Hot handle assembly
E Cold handle assembly
F Tub spout with diverter
G Handle flanges
H Valve body
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble,
operate or install the product.
WARNING
• Protect your eyes with safety glasses when cutting or soldering water
supply lines.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare
parts with package and hardware contents list. If any part is missing or damaged,
do not attempt to assemble the product. Contact customer service for
replacement parts.
Estimated Assembly Time: 30 minutes
Tools required for assembly (not included): adjustable wrench, thread sealant
tape, strap wrench, Phillips head screwdriver, silicone
Need Help? Please call our toll-free line at (877) 319-3757 (7:30 am to 4:30 pm CST) for additional assistance or service.
Homewerks Worldwide, LLC • Lake Bluff, IL 60044 • HomewerksWW.com
QUANTITY
1
1
1
1
1
1
2
A
1
CAUTION
• If you solder the joints during installation, the seats, cartridges, and washers
must be removed before using a flame or the warranty will be voided on
these parts.
• Cover the drain to avoid losing parts.
Installation may vary depending on how the previous tub and/or shower faucets
were installed. Supplies necessary for the installation of the product are not all
included; however, they are available wherever plumbing supplies are sold.
Prior to beginning installation, turn off the hot and cold water lines, then turn on
the old faucet to release built-up pressure. When installing the new tub and/or
shower faucets, hand tighten the connector nuts. DO NOT OVERTIGHTEN.
Connections that are too tight will reduce the integrity of the system.
C
H
B
D
E
F
G
11-27-2019
