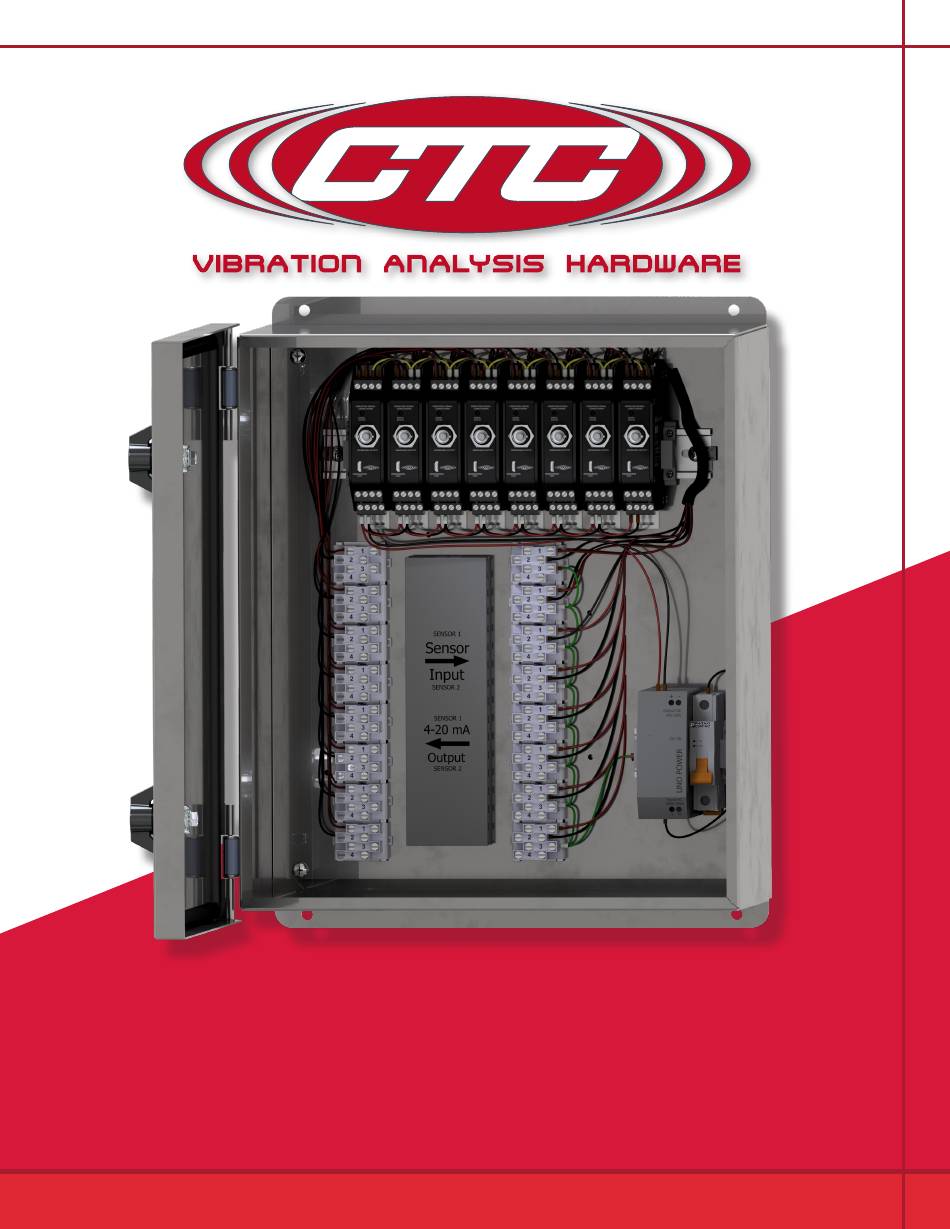

- Page 1 SCE400 Series Signal Conditioner Enclosure SCE400 Series Signal Conditioner Enclosure 8 Sensor Inputs 8 Sensor Inputs Product Manual Product Manual...
-
Page 2: Table Of Contents
Table of Contents • Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 •... -
Page 3: Introduction
Introduction This document contains information on the operation, installation and maintenance of the SCE Series signal conditioner enclosure . This manual is an overview of the system and references the specific component manuals . User manuals are provided with the system for all configurable internal components . Product Overview The SCE Series signal conditioner enclosure is a turnkey solution coming fully populated with signal conditioners, terminal blocks for sensor terminations,... -
Page 4: Product Dimensions And Diagram
Product Dimensions 14.25 in 9.23 in [362.0 mm] [234.3 mm] 12.00 in [304.8 mm] 17.50 in 16.53 in [444.5 mm] [420.0 mm] Front View Side View Figure 1. Dimensions Figure 2. Diagram... -
Page 5: Mounting Instructions
Mounting Instructions Stainless steel mounting brackets are included on the enclosure . Wall anchoring screws are not included . Note: If you have purchased a SCE400 Series enclosure without cable entries provided, you should add your own entry prior to mounting the enclosure . -
Page 6: Conduit Entry
Note: To ensure moisture will not flow into the enclosure, a hole should be drilled at the lowest point in the conduit to provide drainage for any moisture . Correct Incorrect Drill Drain Hole Here Figure 4. Conduit Entry for SCE400 Series... -
Page 7: Grounding
Grounding Ensure the shield ground wire on the SCE400 Series enclosure is grounded to earth ground . A. Mounting to Earth Ground When mounting SCE400 Series enclosures to earth ground (such as an I-Beam), no additional steps are necessary, as the enclosure is grounded internally . - Page 8 B. Mounting to Non-Grounded Structure When mounting the SCE400 Series enclosure to a non-grounded structure, ensure the shield ground wire or customer-supplied ground wire is tied to a source of earth ground . Figure 6. Ground Wire Placement...
-
Page 9: Electrical Connections
Electrical Connectons Cables enter and exit the enclosure through conduit fittings or cord grips on the bottom of the unit . All input and output wiring is connected to the terminal blocks and signal conditioners inside the unit . Inputs are routed through a conduit fitting or cord grips (one per channel), output wiring is routed through a conduit fitting . - Page 10 Wiring Power In order to supply power to the signal conditioners, CTC has an option for all SCE enclosures to be equipped with a power supply and circuit breaker . Below is the wiring configuration to bring live power into the enclosure . Cable Cable Color...
- Page 11 . All wires are connected to terminal blocks within the enclosure . Sensor inputs for the SCE400 series are located on the right side of the enclosure as indicated by the interior labeling “Sensor Input .”...
-
Page 12: Troubleshooting
Input for Vibration and Temperature Data Four Signal Pole Conditioner Terminal Terminal Block Block Cable Position Position Color Destination Signal (+) Black Common Green Shield Drain White Temperature Note: If there is no sensor wired to the sensor input terminal, the corresponding transmitter for that channel will not power on . - Page 13 Wiring Outputs The 4-20mA output of the SCE400 series are located on the left side of the enclosure as indicated by the interior labeling “Output .” SCE411 — Signal Conditioners with Single Vibration Band Output Four Signal Pole Conditioner Terminal...
- Page 14 SCE412 — Signal Conditioners with Single Vibration Band and Temperature Outputs Four Signal Pole Conditioner Terminal Terminal Block Block Cable Position Position Color Destination Channel 1 Output Black Common White Temperature Output...
- Page 15 SCE413 — Signal Conditioners with Dual Vibration Band Output Four Signal Pole Conditioner Terminal Terminal Block Block Cable Position Position Color Destination Channel 1 Output Black Common Blue Channel 2 Output...
- Page 16 SCE414 — Signal Conditioners with Dual Vibration Band and Temperature Outputs Four Signal Pole Conditioner Terminal Terminal Block Block Cable Position Position Color Destination Channel 1 Output Black Common Blue Channel 2 Output White Temperature Output...
- Page 17 Note: When collecting waveform data from the BNC jack on the signal conditioner using a portable data collector that supplies constant current power, it is recommended that the data collector is configured so that power to the sensor is turned off . Although the BNC connector circuitry offers short circuit protection and can safely sink the current, long-term degradation may occur due to increased power dissipation depending on the magnitude of the IEPE current .
- Page 18 A short circuit is indicative of a lack of electrical resistance, removing the ability to measure the impact from a change in voltage . This instance is largely driven by an incorrect wiring setup . Verify that all wiring connections are attached in the correct polarity, and that no signal and common wires are touching .
- Page 19 This state occurs when the signal conditioner starts up, confirms there is an available configuration, and sets up its peripherals and outputs . If the USB cable is connected and plugged into a PC, this state will persist . Plugging in the USB cable at any point will also cause the device to enter this state .
- Page 20 Warranty & Refund Warranty All CTC products are backed by our unconditional lifetime warranty . If any CTC product should ever fail, we will repair or replace it at no charge . Refund All stock products can be returned for a 25% restocking fee if returned in new condition within 90 days of shipment .
