Hammond Manufacturing CONTEMPRA 2 Series Assembly Instructions

CONTEMPRA 2 - SERIES
1
A
Placement of CCE
Holes to knock out
PARTS LIST
ITEM No. DESCRIPTION
1 CCE----BK1
2 SCREW 8-32 X 1/2 LG
NUT 8-32 KEPS
3
TOOL BOX
Flat Head
Screw Driver
DETAIL A
QTY
1
6
6
Striking
Hammer
Tool

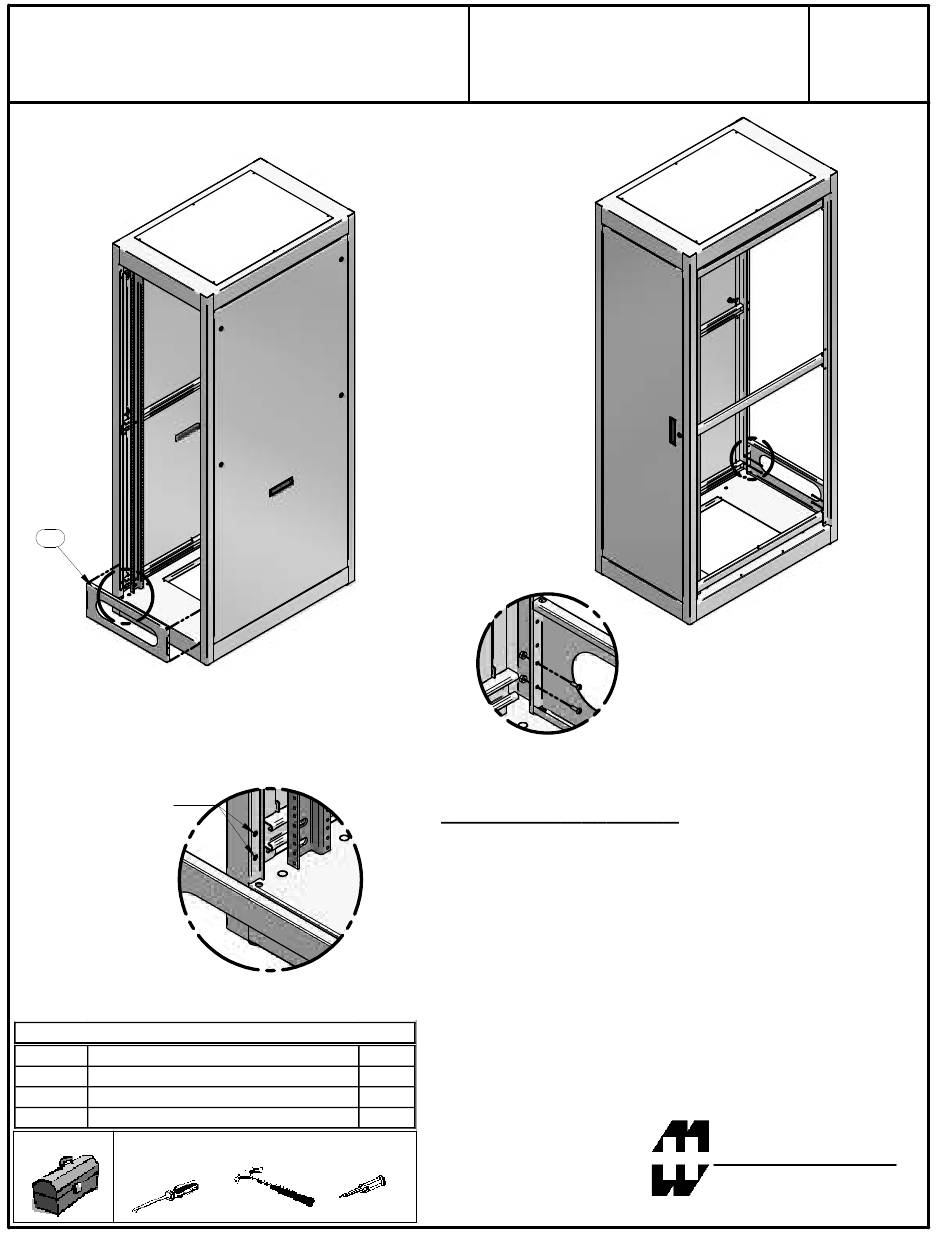

ASSEMBLY INSTRUCTIONS FOR
CCE - CABL E ENTRY DOOR ADAPTER
DETAIL B
ASSEMBLY INSTRUCTIONS:
A) Ensure all parts are available. See BOM list.
B) Remove the 4 knock out holes located at the bottom of frame
opening (use proper striking tool). Detail A shows location of knock
out holes
C) Line up CCE at the base of the cabinet so the holes line up with
the K.O. holes. Install screws supplied from the inside of the CCE
and fasten using nut supplied (Detail B).
D) If additional support is desired, then drill one 1/4" hole on each
side using CCE as a template and fasten additional hardware
supplied
visit our website @ www.hammondmfg.com
BUL10283
REV.
PAGE 1 OF
