Adjustable Depth Center Swing Wall Rack
Heavy Duty 220 lbs (100 kg) Weight Capacity
https://www.hammfg.com/dci/products/wall-mount/hwmr
Adjustable Depth Center Swing Wall Rack (HWMR Series) - Hammond Mfg.

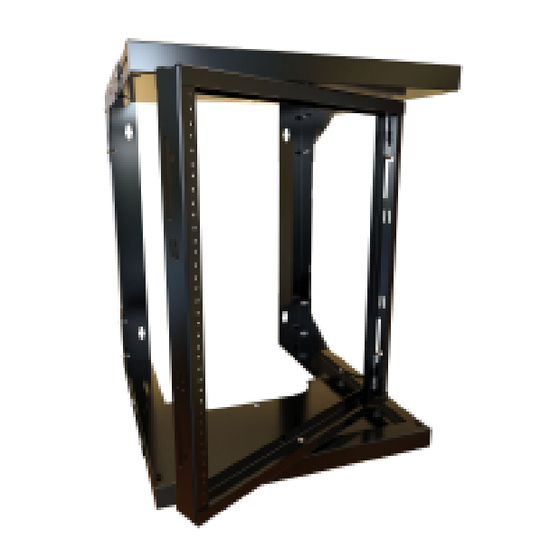

The Hammond Wall Mount Rack (HWMR) series was designed to easily mount network
equipment in IT environments with limited floor space. Unlike similar racks, Hammond has
integrated both depth adjustment and center swing capabilities in one rugged open rack system.
Available in 12U, 20U, 24U and 32U rack unit options, the HWMR can easily adjust in depth from
eighteen to twenty-four inches to accommodate a wide range of equipment sizes.
Features
Braces and rack rails are constructed of 12-gauge steel, while the other body components
are constructed of 16-gauge steel.
EIA compliant 10-32 tapped rails with 19" mounting and rack unit indicators.
The rack frame swings (in both directions) at the center, providing convenient equipment
access without exceeding the rack footprint.
Adjustable total variable depth from 18" to 24" using slots for easy set-up and adjusting.
Variable usable depth from 15.1" to 21.1"
Top and Bottom rack units have a usable depth from 12.4" to 18.4".
Three (3) spring pin positions allow for simplified equipment maintenance.
Side and rear cable access with multiple tie points for cable management.
Finished in RAL9005 black powder paint.
Knockdown design ships unassembled for easy handling and shipping protection.
220 lbs (100 kg) load rating.
TAA Compliant.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.
Included in the Box
HWMR components and assembly hardware.
Assembly bulletin.
Wall mounting template for easy 16-inch center installation. (Wall mounting hardware not
included)
Starter pack of SCREW1032-50 screws.
You might also like our RB-2PW Fixed Wall Rack.
This product is not designed nor intended to be used for non-wall mounted
applications.
Gallery
Quality Products. Service Excellence.
HWMR Series
1/3
