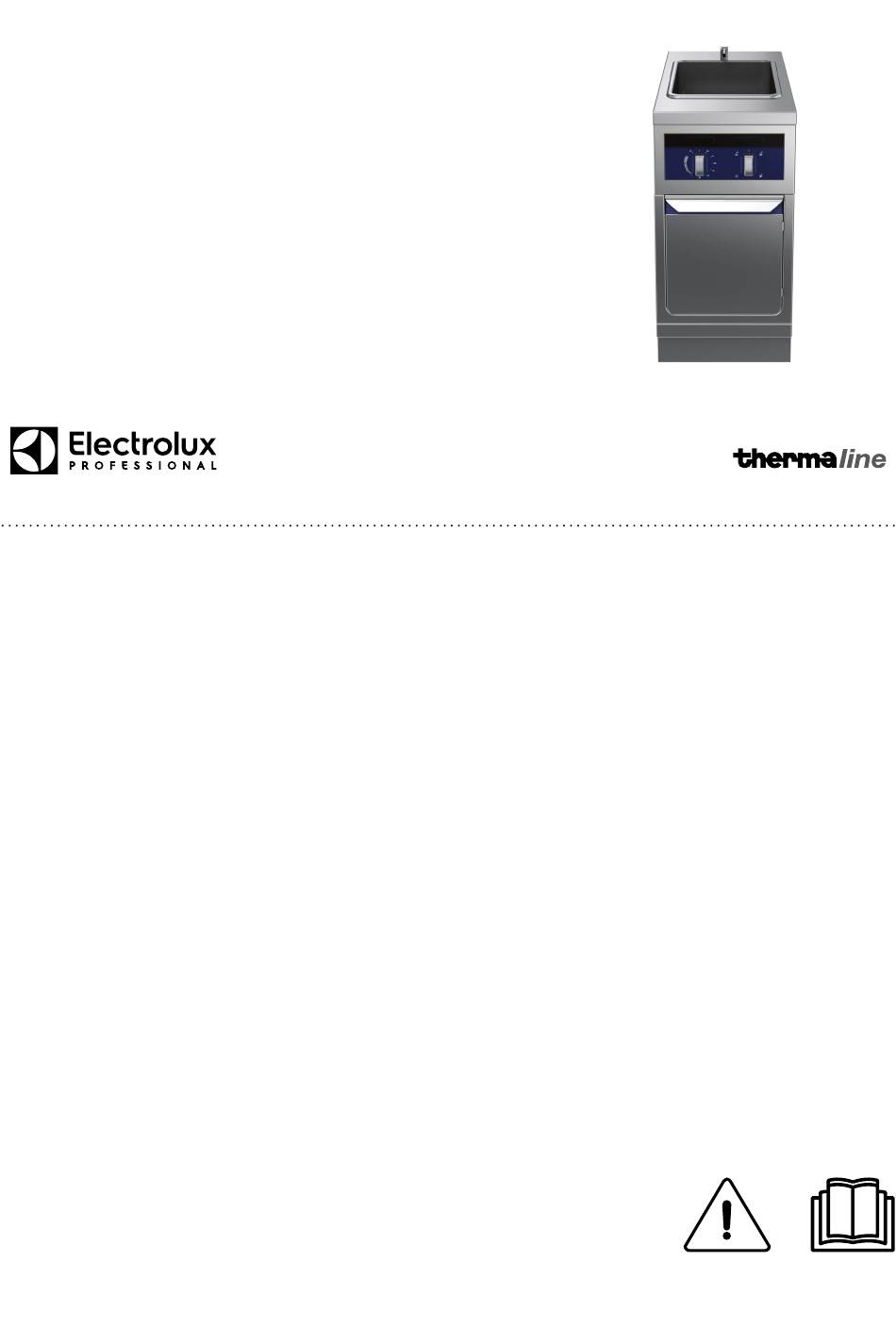

- Page 1 Electric multi-function cooker EN-US Installation and Operating manual 599A0UH01 - 82.8030.11- 2022.06...
- Page 2 Foreword Read the following instructions, including the warranty terms before installing and using the appliance. Visit our website www.electroluxprofessional.com and open the Support section to: Register your product Get hints & tips of your product, service and repair information The installation, use and maintenance manual (hereinafter Manual) provides the user with information necessary for correct and safe use of the appliance.
-
Page 3: Table Of Contents
Contents A WARNING AND SAFETY INFORMATION....................5 General information ........................5 Personal protection equipment ......................6 General safety ..........................6 Protection devices installed on the appliance ..................7 Safety signs to be placed on the appliance or near its area ..............8 Reasonably foreseeable improper use .................... - Page 4 PRODUCT DESCRIPTION ........................25 Appliance overview ........................25 Use ............................25 Glass display ..........................25 Steel dashboard ......................... 25 Temperature control ........................26 Capacity control ......................... 26 K OPERATING............................26 First use ........................... 26 Filling up the tank ........................26 Switching on-off .........................
-
Page 5: Awarning And Safety Information
WARNING AND SAFETY INFORMATION General information To ensure safe use of the appliance and a proper understanding of the manual it is necessary to be familiar with the terms and typographical conventions used in the documentation. The following symbols are used in the manual to indicate and identify the various types of hazards: WARNING Danger for the health and safety of operators. -
Page 6: Personal Protection Equipment
Personal protection equipment Summary table of the Personal Protection Equipment (PPE) to be used during the various stages of the appliance's service life. Stage Protective Safety Gloves Glasses Safety garments footwear helmet ● ○ ○ — Transport — ● ● —... -
Page 7: Protection Devices Installed On The Appliance
Disconnect the appliance from the power supply before carrying out any installation, assembly, cleaning or maintenance procedure. • Do not remove, tamper with or make illegible the marking and safety, danger and instruction signs and labels on the appliance. • Before servicing, disconnect the electrical service and place a red tag at the disconnect switch to indicate work is being done on that circuit. -
Page 8: Safety Signs To Be Placed On The Appliance Or Near Its Area
Safety signs to be placed on the appliance or near its area Prohibition Meaning do not remove the safety devices do not use water to extinguish fires (placed on electrical parts) Keep the area around the appliance clear and free from combustible materials. -
Page 9: Transport, Handling And Storage
this manual the Manufacturer has taken steps to inform operators of such risks, carefully indicating the personal protection equipment to be used by them. In order to reduce the risks, provide for sufficient spaces while installing the unit. To preserve these conditions, the areas around the appliance must always be: •... -
Page 10: Installation And Assembly
• When removing the anchoring systems, make sure the stability of the appliance parts does not depend on the anchoring and, therefore, that this operation does not cause the load to fall off the vehicle. Before unloading the appliance components, make sure all the anchoring systems are removed. -
Page 11: Appliance Space Limits
Preventive Maintenance In order to ensure the safety and performance of your equipment, it is recommended that service is undertaken by Electrolux Professional authorised engineers every 12 months, in accordance with Electrolux Professional Service Manuals. Please contact your local Electrolux Professional Service Centre for further details. -
Page 12: Appliance Maintenance
– inadequate or interrupted water supply, steam, air, gas Check on Electrolux Professional website the list of authorized (including impurities and/or other that does not comply with customer care. the technical requirements for each appliance);... -
Page 13: Appliance And Manufacturer's Identification Data
1 - Product line Modular 2 - Family (depth) 800 mm / 31,50″ 850 mm / 33,46″ 900 mm / 35,43″ 3 - Machine type Multi-function cooker 4 - Size / Zones / Details Multi-function cooker, 1/1 GN Appliance and manufacturer's identification data 5 - Module type (height) The data plate gives the product identification and technical... -
Page 14: Testing And Inspection
Customer packaging checks Manufacturer Electrolux Professional SpA or any other • The forwarder is responsible for the goods during transport service centre authorised by Electrolux and delivery. Professional SpA. • Make a complaint to the forwarder in case of visible or... -
Page 15: Einstallation Diagrams
INSTALLATION DIAGRAMS Appliance type (E Installation DIAGRAMS). The appliance should be con- nected to fixed cables. Installation options: 1. Wall mounted (not available for all appliances) 2. Standing against the wall • on adjustable feet • on steel plinth • on concrete plinth 3. -
Page 16: Installation And Connection Diagram
Installation and connection diagram +100/ +200 38 mm 100 mm 1,50 in 200 mm 40 mm 3,94 in 7,87 in 1,57 in 78 mm 244 mm 78 mm 200 mm / 7,87 in 3,07 in 9,61 in 3,07 in 150 mm 130 mm 5,91 in 5,12 in... - Page 17 400 mm / 15,75 in 50 mm 300 mm 50 mm 1,97 in 11,81 in 1,97 in 106 mm 106 mm 4,17 in 4,17 in 400 mm / 15,75 in 55 mm / 2,17 in 139 mm / 5,47 in 200 mm / 7,87 in EI = Electrical connection EQ = Potential equalisation...
-
Page 18: Accessing The Appliance's Internal Components
Accessing the appliance’s internal components INSTALLATION AND ASSEMBLY Introduction Before installation Depending on your model, prepare the following before the WARNING appliance is installed and positioned correctly: Refer to “WARNING and Safety • Fastening elements, i.e. drill holes and insert dowels. You Information“. -
Page 19: Installing On Steel Plinth Or Adjustable Feet
3. Lift the unit on one side so that all installation connections 5. Carefully lower the appliance and then move it into the are inside the appliance. correct position. 6. Remove the outer protective film and the edge covers, 4. Carefully lower the appliance and then move it into the taking care not to scratch the surface of the appliance. -
Page 20: Wall Installation
4. Carry the appliance on the lifting cart to the prepared position on the wall and lift it to the correct height. 5. Remove the outer protective film and the edge covers, taking care not to scratch the surface of the appliance. Very slowly pull off the protective film on the stainless steel surfaces, without ripping, to prevent any adhesive residue. -
Page 21: Side Panels And Base Models
F.10 Side panels and base models 2. Push the units together. Use the adjusting screws on the feet to bring the appliances to the same height, then level All side panels are available in two different versions: them. • Side panel with an overhang of 12,5 mm / 0,49″ for Screw the appliances together at the base using the screw, individual mounting on walls. -
Page 22: Fixing The Side Cover Without Overhang
F.12 Fixing the side cover without overhang 2. Bring the side panel D into position. Put the 5 hooks of the panel F into the slots E. The side cover should only be used as a closing off against the wall, against a niche and in between appliances (provided that these have the same dimensions). -
Page 23: Sealing
F.13 Sealing 3. Insert the hooks on the bottom of end rail F into the eyelets of the connecting rail. For hygiene reasons, to prevent water and other substances Attach the side of side cover E using the 4 flathead screws from running under the appliance, seal all around the joints supplied. -
Page 24: Hconnecting The Water Supply
In case the water quality is out of the value ranges reported above, it is advisable to install some water treatment systems. Drinking water supply 1. Electrolux Professional responsibility The appliance should be connected to fixed lines. Metal 2. Specialized personnel responsibility installation pipes may not protrude more than 100 mm / 3,94″... -
Page 25: Jproduct Description
PRODUCT DESCRIPTION WARNING Appliance overview • Never switch on or continue using the appliance if the water level drops below the minimum mark on the tank wall. • Only draining off the tank when the water is cooled. • Slowly place filled baskets or containers into the full tank to prevent the hot water spilling over and causing injury. -
Page 26: Temperature Control
Temperature control Filling pasta cooker (max.) Slow fill (max.) Constant filling bain marie (min.) Pause Temperature selection 105℉ – 195℉ 1 – 4 Heat levels Standby Capacity control OPERATING First use Clean off any industrial protection grease from all parts of the max. -
Page 27: The Cooking Process - Bain Marie
• Place the baskets with food to be cooked in the tank. The For prolonged downtimes, switch off the appliance to avoid overflow pipe ensures control of the maximum water filling unnecessary energy consumption. level and the removal of cooking froth. WARNING To maintain the water level during cooking, turn capacity control to position B. -
Page 28: Stainless Steel Surfaces
Use lukewarm water, a neutral detergent/cleaner if necessary, Rinse off work surfaces with fresh water. This applies and a soft brush or sponge. If another type of detergent is used, especially after cooking potatoes, pasta or rice in salted carefully follow the producer's instructions and observe the water. -
Page 29: Air Filter (Optional)
Air filter (optional) L.10 Informations for maintenance If present, remove the air filter at least once a month from Preventive Maintenance reduces downtime and maximizes under the lower front panel and clean with water and detergent machines efficiency. used for manual dishes cleaning. Customer Care Service can provide advice on the best maintenance plan to be purchased based on the intensity of IMPORTANT... -
Page 30: Mtroubleshooting
• clean the cabinet, going over all the stainless steel surfaces • for the electric heated models: switch on the appliance at vigorously with a rag moistened with paraffin oil to create a the minimum rate of heat for at least 45 minutes; this will protective film;... - Page 32 Electrolux Professional AG Allmendstrasse 28 CH - 6210 Sursee www.electroluxprofessional.com...
