INSTRUCTION MANUAL
for N120 to N100 Port Adaptor
PN# 21315 / 21320 / 21325 / 21335
FORWORD
Thank you for your purchase of a NAUTICAM
product.
At NAUTICAM, we pride ourselves in the ability to
recognize the requirements of professional as well
as amateur underwater photographers and fulfill
them through the innovative designs of our
products. We strive to achieve a high level of user-
friendliness by allowing stress-free installation and
easy operation of all important functions of the
camera.
Each product is individually inspected and water
pressure tested to ensure optimum quality.
Please read this manual carefully before using the
product, this will maximize its performance as well
as its lifetime.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nauticam N120
Summary of Contents for Nauticam N120
- Page 1 PN# 21315 / 21320 / 21325 / 21335 FORWORD Thank you for your purchase of a NAUTICAM product. At NAUTICAM, we pride ourselves in the ability to recognize the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products.
- Page 2 Protect the interior from moisture with and/or placed within our products. and debris in order to prevent malfunction or NAUTICAM accepts no liability for any loss of leakage. captured images or the inability to capture images even if it is due to the malfunctioning of Defective products should be shipped to our our products.

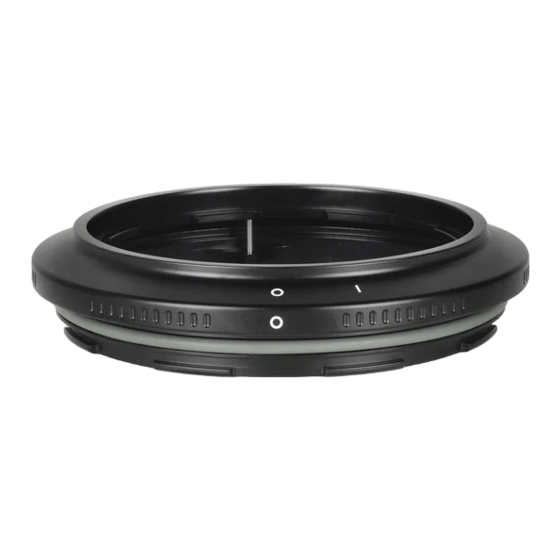

- Page 3 IDENTIFICATION OF PARTS Locking Pin Port Alignment ”O” mark Port Alignment ‘I’ Mark O-ring Housing Alignment “O” Mark Port Adaptor Cap Package contents 1. N120 to N100 Port Adaptor 2. Port adaptor cap 3. Spare O-ring 4. Lubricant 5. Drawstring pouch...
- Page 4 MOUNT PORT ADAPTOR TO PORT Preparation of the product 1. After verifying that the sealing O-ring is in good condition, lightly coat it with the lubricant provided and wipe away the excess. 2. Make sure the O-ring groove is free from any foreign material; the groove can be cleaned with the aid of a microfiber cloth.
- Page 5 MOUNT PORT ADAPTOR TO PORT 3 Turn the port adaptor anti-clockwise until the “O” mark on the port adaptor aligns with the “O” mark on the port. To lock the port adaptor, push the locking pin inwards. To unlock, insert a small screwdriver into the recess to lift the locking pin, then reverse the above procedures.
- Page 6 #21315 N120 to N100 15mm Port Adaptor times to avoid the accumulation of salt Dimensions: DIA132.2mm × 28.1mm residue; wipe the housing with a towel before opening. Extension length:...
