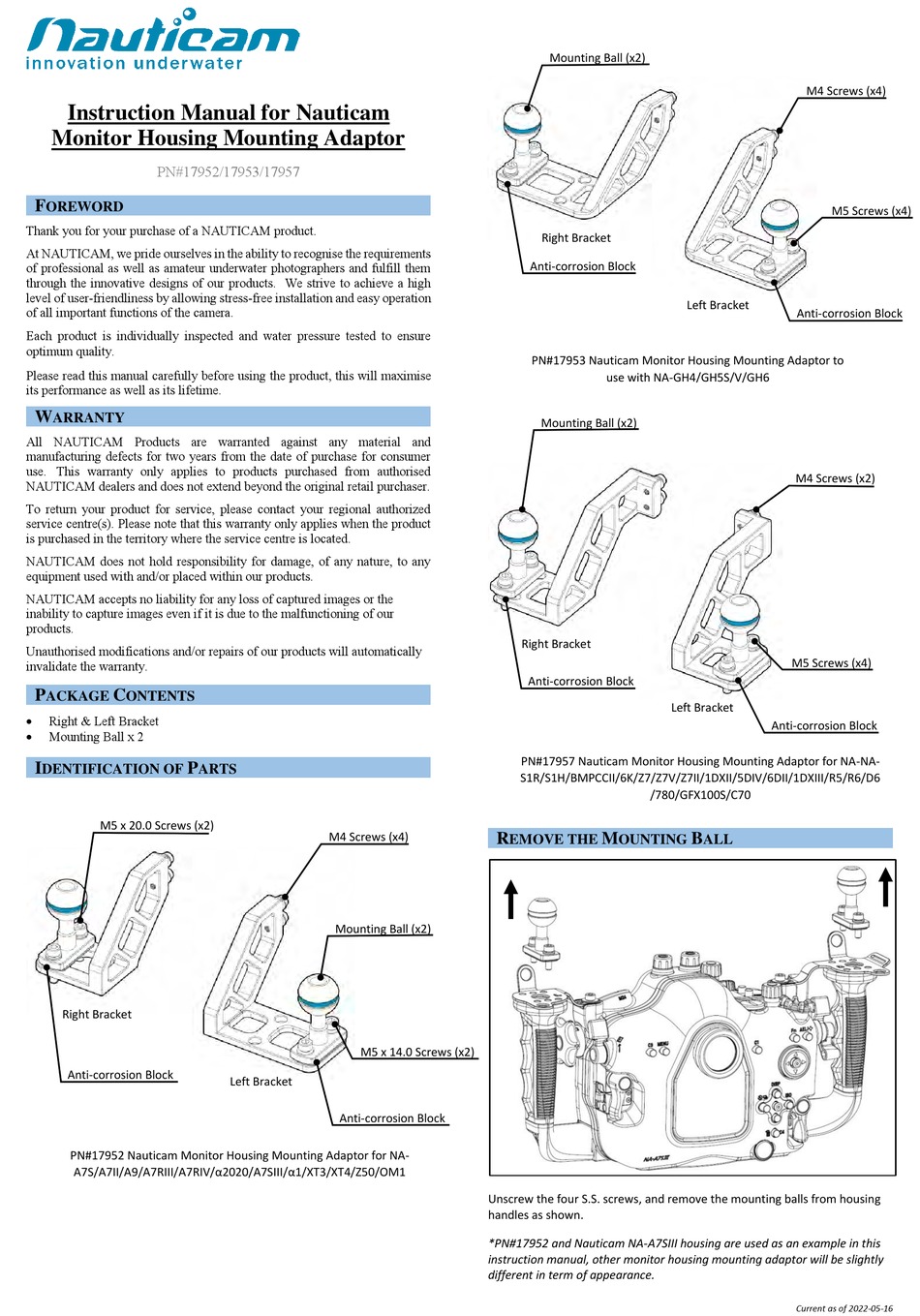

Nauticam 17952 Instruction Manual

Instruction Manual for Nauticam
Monitor Housing Mounting Adaptor
PN#17952/17953/17957
F
OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognise the requirements
of professional as well as amateur underwater photographers and fulfill them
through the innovative designs of our products. We strive to achieve a high
level of user-friendliness by allowing stress-free installation and easy operation
of all important functions of the camera.
Each product is individually inspected and water pressure tested to ensure
optimum quality.
Please read this manual carefully before using the product, this will maximise
its performance as well as its lifetime.
W
ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for consumer
use. This warranty only applies to products purchased from authorised
NAUTICAM dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authorized
service centre(s). Please note that this warranty only applies when the product
is purchased in the territory where the service centre is located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the
inability to capture images even if it is due to the malfunctioning of our
products.
Unauthorised modifications and/or repairs of our products will automatically
invalidate the warranty.
P C
ACKAGE ONTENTS

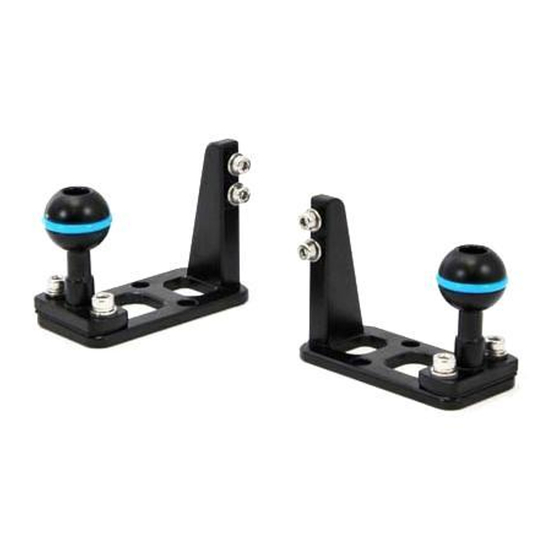

Right & Left Bracket

Mounting Ball x 2

I P
DENTIFICATION OF ARTS
M5 x 20.0 Screws (x2)
Right Bracket
Anti-corrosion Block
PN#17952 Nauticam Monitor Housing Mounting Adaptor for NA-
A7S/A7II/A9/A7RIII/A7RIV/α2020/A7SIII/α1/XT3/XT4/Z50/OM1
M4 Screws (x4)
Mounting Ball (x2)
M5 x 14.0 Screws (x2)
Left Bracket
Anti-corrosion Block
Mounting Ball (x2)
Right Bracket
Anti-corrosion Block
PN#17953 Nauticam Monitor Housing Mounting Adaptor to
use with NA-GH4/GH5S/V/GH6
Mounting Ball (x2)
Right Bracket
Anti-corrosion Block
PN#17957 Nauticam Monitor Housing Mounting Adaptor for NA-NA-
S1R/S1H/BMPCCII/6K/Z7/Z7V/Z7II/1DXII/5DIV/6DII/1DXIII/R5/R6/D6
/780/GFX100S/C70
R M
EMOVE THE OUNTING
Unscrew the four S.S. screws, and remove the mounting balls from housing
handles as shown.
*PN#17952 and Nauticam NA-A7SIII housing are used as an example in this
instruction manual, other monitor housing mounting adaptor will be slightly
different in term of appearance.
M4 Screws (x4)
M5 Screws (x4)
Left Bracket
Anti-corrosion Block
M4 Screws (x2)
M5 Screws (x4)
Left Bracket
Anti-corrosion Block
B
ALL
