The new-bought door sensors should be enrolled to the control

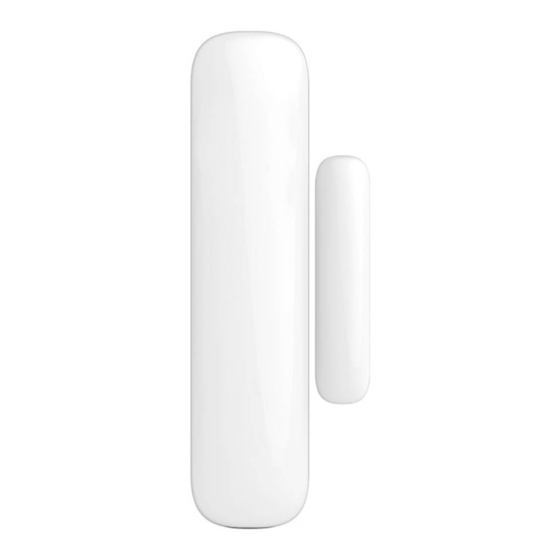

Door / Window Sensor
panel before use.
Press enroll button of control panel, trigger the sensor by moving the
User Manual
magnet away from the sensor. The enrolled sensors will automatically
appear in the Accessories Menu in the app. You can
customize the accessory name, select the zone
type and also delete the accessory from the app,
if required. For specified operation, please refer
to the manual of alarm system.
Specifications:
Power Supply: DC1.5V/AA battery
Standby Current: ≤25μA
Alarm Current: ≤70mA
Wireless Transmit Distance: ≤80m (in open area)
Wireless RF Frequency: FHSS 433MHz
Temperature: -10°C-55°C
Humidity: ≤80% (Non-condensing)
Detector Dimensions (L x W x H): 28 x 96.5 x 19.5 mm
Magnet Dimensions (L x W x H): 14 x 48 x 11 mm
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Watchguard ALL-RSW2
Summary of Contents for Watchguard ALL-RSW2
- Page 1 The new-bought door sensors should be enrolled to the control Door / Window Sensor panel before use. Press enroll button of control panel, trigger the sensor by moving the User Manual magnet away from the sensor. The enrolled sensors will automatically appear in the Accessories Menu in the app.
- Page 2 Features: Installation: The Door/Window Sensor can be Vertical Installation 1. Open the back cover of the sensor, pull out the battery tab and installed on doors, windows and check the battery is fitted properly. any other objects that open and 2.
