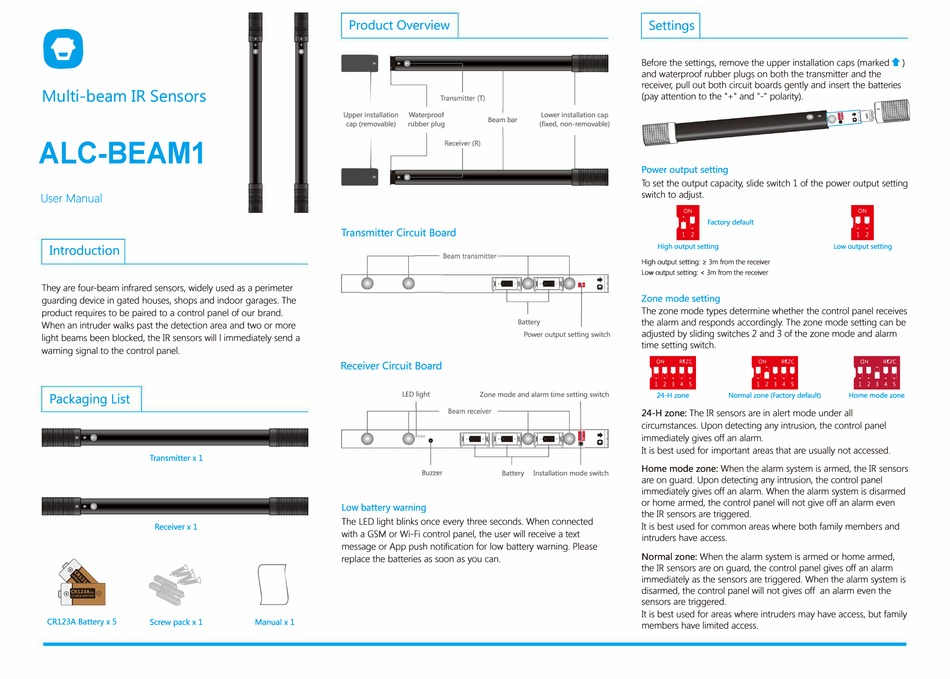

Multi-beam IR Sensors
ALC-BEAM1
User Manual
Introduction
They are four-beam infrared sensors, widely used as a perimeter
guarding device in gated houses, shops and indoor garages. The
product requires to be paired to a control panel of our brand.
When an intruder walks past the detection area and two or more
light beams been blocked, the IR sensors will I immediately send a
warning signal to the control panel.
Packaging List
Transmitter x 1
Receiver x 1
CR123A Battery x 5 Screw pack x 1
Product Overview
,
Upper installation Waterproof
J
cap (removable) rubber plug
Transmitter Circuit Board
Receiver Circuit Board
LED light
Buzzer
Low battery warning
The LED light blinks once every three seconds. When connected
with a GSM or Wi-Fi control panel, the user will receive a text
message or App push notification for low battery warning. Please
replace the batteries as soon as you can.
D
Manual x 1
I
Settings
Before the settings, remove the upper installation caps (marked -t-)
and waterproof rubber plugs on both the transmitter and the
receiver, pull out both circuit boards gently and insert the batteries
(pay attention to the"+" and"-" polarity).
Lower installation cap
Beam bar
(fixed, non-removable)
Power output setting
To set the output capacity, slide switch 1 of the power output setting
switch to adjust.
High output setting
High output setting: � 3m from the receiver
Low output setting: < 3m from the receiver
Zone mode setting
•
The zone mode types determine whether the control panel receives
Battery the alarm and responds accordingly. The zone mode setting can be
adjusted by sliding switches 2 and 3 of the zone mode and alarm
Power output setting switch
time setting switch.
Zone mode and alarm time setting switch 24-H zone
24-H zone:
.. .
circumstances. Upon detecting any intrusion, the control panel
immediately gives off an alarm.
g·
It is best used for important areas that are usually not accessed.
Home mode zone: When the alarm system is armed, the IR sensors
Battery Installation mode switch
are on guard. Upon detecting any intrusion, the control panel
immediately gives off an alarm. When the alarm system is disarmed
or home armed, the control panel will not give off an alarm even
the IR sensors are triggered.
It is best used for common areas where both family members and
intruders have access.
Normal zone:
the IR sensors are on guard, the control panel gives off an alarm
immediately as the sensors are triggered. When the alarm system is
disarmed, the control panel will not gives off an alarm even the
sensors are triggered.
It is best used for areas where intruders may have access, but family
members have limited access.
I
I
I
Factory default
Low output setting
II II
Home mode zone
Normal zone (Factory default)
The IR sensors are in alert mode under all
When the alarm system is armed or home armed,
