- Page 1 MDS Series Wireless Radio Speakers User Manual 11535W 83 Terrace, Lenexa, KS66214 Toll-Free. 800-456-2071(US Only) 913-859-9515 Website www.maxonamerica.com...
- Page 2 The speaker system consists of the speaker and a Bluetooth USB module for your PC that is used to program the speaker. The MDS Series uses a plug-in power supply that converts the AC voltage to 12VDC to power the speakers. MDS-1400/2400 versions can be either wall-mounted or stood on a book shelf. The MDS-3400 is a circular speaker that is hard mounted into a wall or ceiling.
-
Page 3: Product Photos

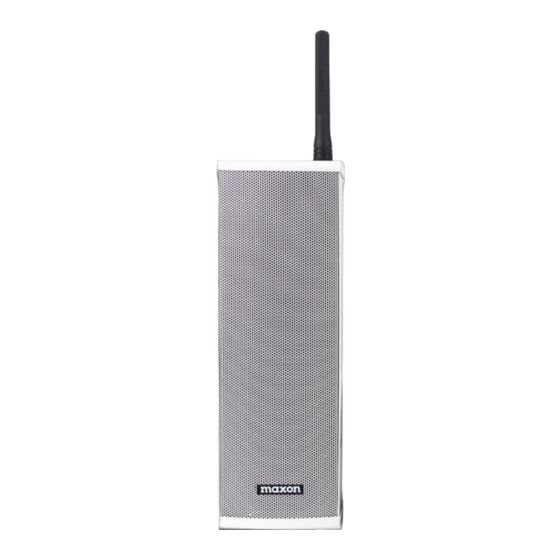

2. Product Photos MDS-1400 (10W) MDS-2400 (20W) MDS-3400 (10W) ID# on Serial Number label is the speaker’s OWN ID... - Page 4 3. Product Specs & Features Frequency Range (400~470MHz SW Programmable) Channel Spacing: 12.5KHz Frequency Stability: ±1.0ppm (-30 ~ +60℃) Digital Vocoder: AMBE++ Digital Protocol: ETSI TS 102 361 Receiver Specifications Sensitivity: 0.22uV BER 3% ...
-
Page 5: Operation
MDS speaker need to be programmed to be on the same UHF band radio frequency before using. (Color Code will also be needed for DMR use, contact your local Maxon dealer for programming). Once both the portable radio and the speaker are programmed, the user transmits audio to the speaker by talking clearly and loudly through the portable radio (press and hold PTT button on the portable radio while talking). - Page 6 **The speaker should be programmed and tested with a portable radio before installation. (Contact your local Maxon dealer for programming). Turn off power & battery to any additional speaker you are not programming so that the Bluetooth Dongle only picks up the speaker you intend to program.
- Page 7 Use a pencil and our cardboard stencil of the speaker to mark the location where to cut. MDS-3400 series speaker stencils are available free at www.maxonamerica.com. Installation videos may also be available. Check with your Maxon dealer. 1. Before installing the ceiling speaker, choose the best location for your audio speaker by checking the topside of your ceiling.
- Page 8 12. Turn back on the power at breaker to provide power to the speaker. 13. Test the operation. Since programming is done wirelessly, it is not necessary to remove the speaker from the ceiling. Refer to the MDS Programming Guide or contact your Maxon dealer for more information.
-
Page 9: Safety Notes
7. Safety Notes Please read the following recommendations for safe and effective use of the Radio. • Please do not remove or damage antenna, or use a damaged antenna. It affects the radio receiver’s performance. • Use only AC110V power. •... -
Page 10: Warranty Card
Warranty Card Thank you for purchasing Wireless Maxon Digital Speaker. 1. This product has passed strict quality control and testing procedures. 2. Warranty is three years from original date of purchase. • Failure of the product under normal operating conditions, during the warranty period may be repaired by a distributor, the head office, or service center free of charge.
