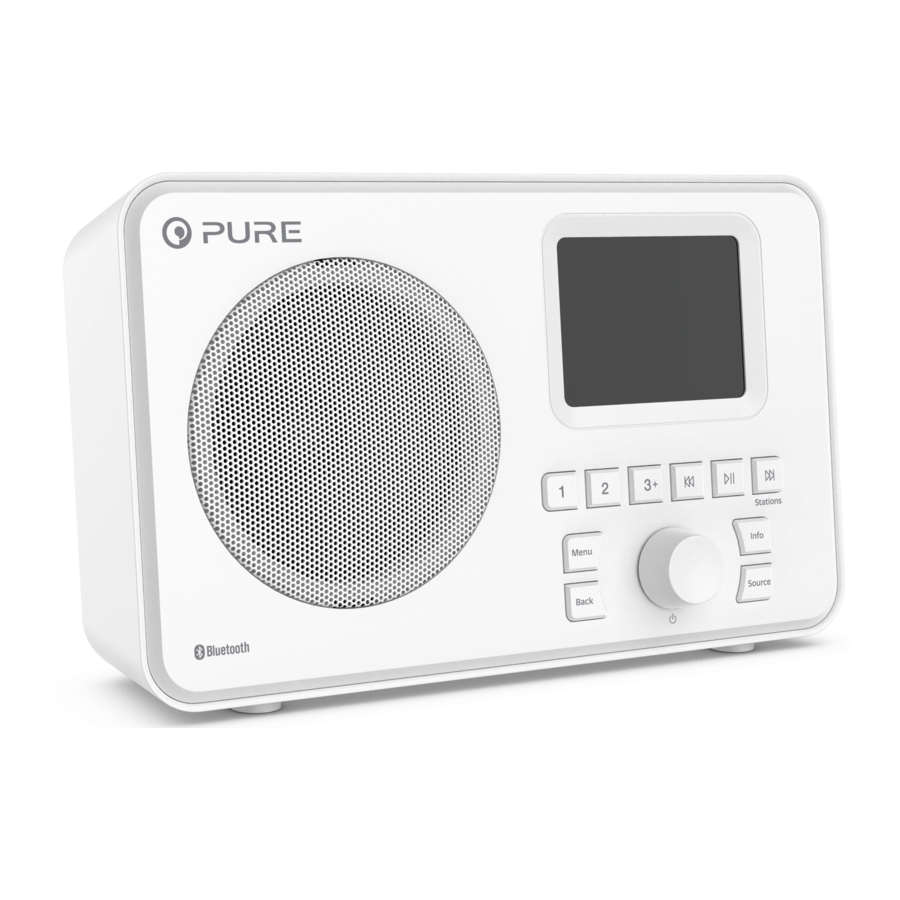

PURE Elan One - DAB+ & FM Radio With Bluetooth Quick Start Guide

Alarms and timers

Set an alarm

1. Press Menu and turn and press Select dial to select 'System Settings'

2. Turn and press Select dial to select 'Alarm'

3. Turn and press Select dial to select 'Alarm 1' or 'Alarm 2'

4. Turn and press the Select dial to adjust an alarm setting


Cancel an alarm

Snooze an alarm

Set sleep timer

Quick setup

1. Unclip (A) and extend aerial (B) and connect power to USB adapter (C)

2. Push to switch on

3. Wait for autotune to complete

4. Press Source button to display Source menu

5. Tap Source button to switch between (A) DAB radio, (B) FM radio and (C) Bluetooth (See 'Choose Source' for more information)


Controls

Tap to turn Elan on and long press for standby (off when powered by batteries)

Switch between digital radio, FM radio & Bluetooth

Change settings (including language)

Press to return to the previous screen

Press to change radio stations

Set and recall presets

Turn and press to select menu options. If listening to content, turn to adjust the volume & tap to mute the volume.

Rear panel connections

Micro USB Power input (software updates) 500mA - 2.0A

Input: 5V 2.0A

Stereo headphone output (3.5mm)

Choose source

Digital radio

Change digital radio station

FM radio

Seek to next station

Manual tune

Bluetooth

Pair with a Bluetooth device

Preset 1-2

Store

Select

Preset 3-20

Store

Select

Digital radio settings

Autotune

Warranty information

Pure International Limited warrants to the end user that this product will be free from defects in materials and workmanship in the course of normal use for a period of two years from the date of purchase. This guarantee covers breakdowns due to manufacturing or design faults; it does not apply in cases such as accidental damage, however caused, wear and tear, negligence, adjustment, modification or repair not authorised by us. Please visit www.pure.com/register to register your product with us. Should you have a problem with your unit please contact your supplier or contact Pure Support at the address shown on the rear of this manual.

Specifications

Radio Digital (DAB/DAB+): Frequencies Digital Band III 174–240 MHz

FM radio: Frequencies FM 87.5-108 MHz (with RDS)

Bluetooth: Frequency range: 2402 < 2480 MHz, Maximum power: 4.0 dBm (EIRP), A2DP support.

Display: 2.4", 320 x 240, TFT colour display

Software version: 1A4

Speaker: 2.5" full range driver, 3 Watts output

Input connectors: Micro USB, Micro USB to USB A cable included

Output connectors: 3.5mm stereo headphone socket

Power supply requirements: 5V DC, 500mA - 2.0A or 4x AA batteries

Dimensions: W:175mm x H:106mm x D:54mm Weight: 0.45kg

www.pure.com
support.pure.com

Pure International Limited
Concept House
Home Park Road
Kings Langley
Herts, WD4 8UD
United Kingdom

Pure Europe GmbH
Möslbichl 78
6250 Kundl
Austria

Approvals

CE marked. Hereby, Pure International Limited declares that this radio model Elan One is in compliance with the essential requirements of RED 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address http://www.pure.com/about/red

Elan One, Pure, the Pure logo are trademarks or registered trademarks of Pure International Limited.
© Copyright 2020 by Pure International Limited. All rights reserved.

108MS_09
