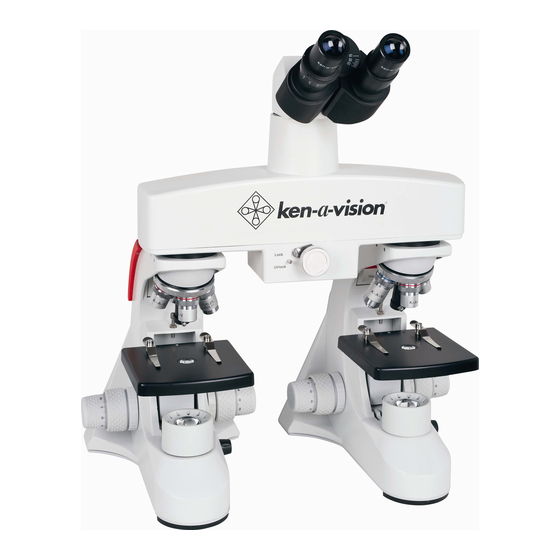

Ken A Vision T-1922 Instruction Manual

push, and turn clockwise . For fluorescent lamp pull out of socket and remove
to install push new lamp into socket.
c. Avoid touching the glass surface of the bulb with bare hand. Any oil
brought onto the bulb by the bare hand will negatively affect the heat dissi-
pation and shorten the life of the bulb. Clean the bulb surface if the user has
touched the bulb surface accidentally.
e. Replacement bulbs may be purchased on Ken-A-Vision web site under
accessories at www.ken-a-vision.com
C C A A R R E E A A N N D D M M A A I I N N T T E E N N A A N N C C E E
Your microscope is a fine precision instrument and should be treated with
care. When not in use it should be protected from dust by the plastic cover
provided. Lenses and eyepieces should be cleaned periodically with optical
lens tissue which is soft and lint free. Painted surfaces can be cleaned with a
moistened cloth.
When using the optional 100xR objective oil emersion lens, be sure not to
leave any oil on the lens after use. Dip a cotton swab or lens paper with a
small amount of denatured alcohol, and clean the lens surface carefully. Do
not use aggressive solvents to clean lens.
Ken-A-Vision has quality technicians on staff to repair or service your micro-
scopes. Ken-A-Vision recommends preventative maintence for optimal life of
the product. Contact us at 1.816.353.4787 for more details.
WARRANTY: TEN YEAR LIMITED WARRANTY AGAINST DEFECTIVE PARTS
AND WORKMANSHIP .
5615 Raytown Road, Kansas City, MO 64133 U.S.A 816-353-4787 Fax. 816-358-5072
Email: info@ken-a-vision.com www.ken-a-vision.com
part# INS-SC81922
Comparison S
Comparison S

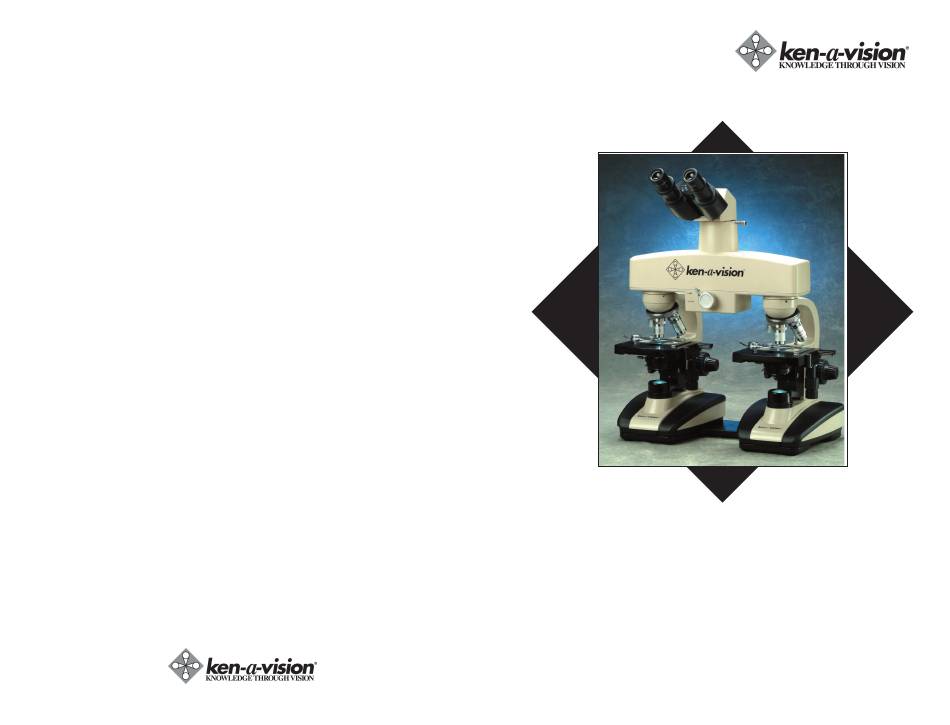

Instruction Manual
T-1922
T-1922C
c op e
c op e
