Installation And Operation Manual
FOR YOUR SAFETY - This product must be installed and serviced by a contractor who is licensed and qualified on pool
equipment in accordance with the latest applicable version of AS3633, along with any other applicable local or council
codes/standards. Before installing this product, read and follow all warning notices and instructions that accompany this
product. Failure to follow warning notices and instructions may result in property damage, personal injury, or death.
Improper installation and/or operation will void the warranty. Improper installation and/or operation can create unwanted
hazards which can cause serious injury, property damage, or death.

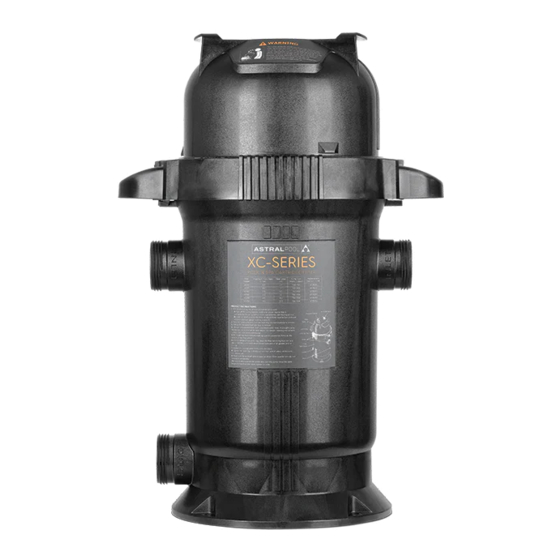

XC-SERIES
Pool & Spa Cartridge Filter
WARNING
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Astralpool XC Series
Summary of Contents for Astralpool XC Series

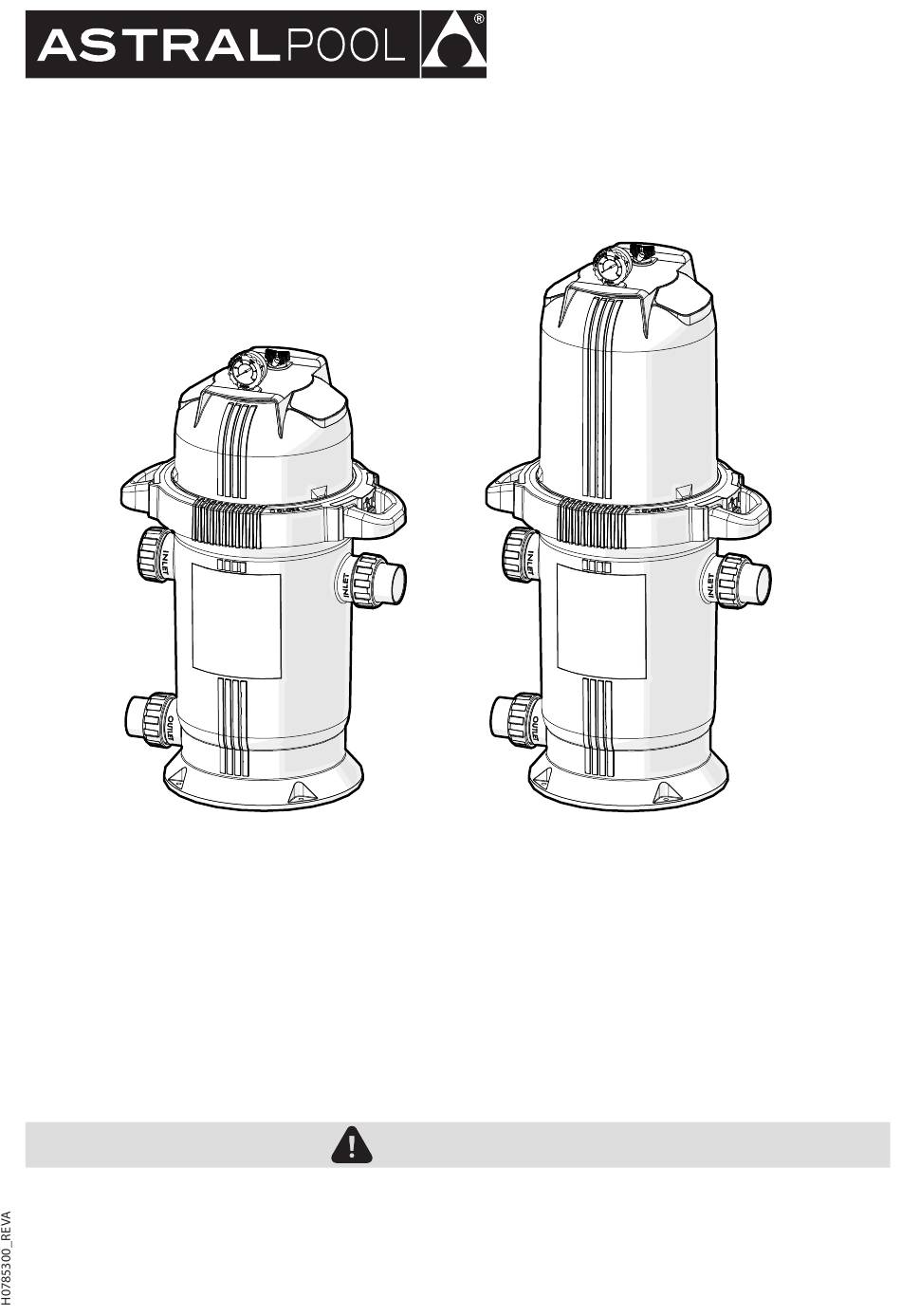

- Page 1 Installation And Operation Manual XC-SERIES Pool & Spa Cartridge Filter WARNING FOR YOUR SAFETY - This product must be installed and serviced by a contractor who is licensed and qualified on pool equipment in accordance with the latest applicable version of AS3633, along with any other applicable local or council codes/standards.
- Page 2 XC-SERIES™ • Installation And Operation Manual Record your equipment details here for quick reference: WARRANTY Model No. : REGISTRATION Serial No. : AUSTRALIA WARRANTY: For full warranty terms and conditions and to register your warranty, visit www.astralpool.com.au/warranty and complete your details. ...
-
Page 3: Table Of Contents
XC-SERIES™ • Installation And Operation Manual Table of Contents Section 1. Important Safety Instructions ......4 Section 2. -
Page 4: Important Safety Instructions
XC-SERIES™ • Installation And Operation Manual Section 1. Important Safety Instructions READ AND FOLLOW ALL INSTRUCTIONS This product should only be installed and serviced by a qualified pool professional and conform to all national, state, and local codes. When installing and servicing, basic safety precautions should always be followed, including the following: WARNING Do not connect system to an unregulated city water system or other external source of pressurised water producing... -
Page 5: Section 2. General Information
XC-SERIES™ • Installation And Operation Manual Section 2. General Information Description Cartridge filters do not require sand or diatomaceous Introduction earth as the filter medium. Instead, the filter contains filter elements which are easily removed for cleaning Congratulations on the purchase of your AstralPool or replacement. -
Page 6: Xc-Series Specifications And Dimensions
XC-SERIES™ • Installation And Operation Manual XC-Series Specifications and Dimensions MAX. MAX. 4 HR 6 HR MAX. REPLACEMENT FILTER SHIPPING FILTER MODEL FLOW FLOW TURN TURN WORKING PUMP ELEMENT AREA WEIGHT MODEL RATE RATE OVER OVER PRESSURE SIZE (W) CODE (M2) (KG) (L/MIN) -
Page 7: Installation Instructions
XC-SERIES™ • Installation And Operation Manual Section 3. Installation Instructions XC-Series Package Contents (Figure 2) Follow the step-by-step instructions to avoid any a. Air Relief Valve w/ O-ring accidents and to ensure proper installation of the filter. b. Pressure Gauge c. Filter Housing Inside the Box d. -
Page 8: Installation
XC-SERIES™ • Installation And Operation Manual Installation blocked using the blanking cap supplied with the product. 1. The cartridge filter must be installed on a clean, NOTE: Both inlets may be used in an optional stable and level base. configuration (second tail union not included). 2. - Page 9 XC-SERIES™ • Installation And Operation Manual 11. Assemble the pressure gauge with front and rear 9. Each inlet is fitted with a water deflector. These casings (Figure 9). deflectors must remain in place to prevent damage to the filter due to high-speed water flow from the pump (Figure 7).
-
Page 10: Start-Up And Operation
XC-SERIES™ • Installation And Operation Manual Section 4. Start-Up and Operation Drain Outlet Inlet Pump Check XC-Series Valve Filter Heater Valve Valve Pool Return From Pool Figure 11. Basic Pool Plumbing 7. Stand clear of the filter. Start pump and open the 1. -
Page 11: Maintenance
XC-SERIES™ • Installation And Operation Manual Section 5. Maintenance Filter Cartridge Cleaning/Replacement 1. Turn off the pump and any additional power General Maintenance source that is connected to assure the system will not inadvertently start during service. Filter incorporates moving parts and withstands high velocity water with chemicals in it. - Page 12 XC-SERIES™ • Installation And Operation Manual 6. Once lid is free of the body, lift lid and locking 9. Inspect the main O-ring at the lid for cracks and ring together and place in a clean location. You wear marks. Replace if necessary. Use only a non- can now remove the filter cartridge (Figure 16).
-
Page 13: Troubleshooting
XC-SERIES™ • Installation And Operation Manual Section 6. Troubleshooting 1. For a list of common problems and solutions see the Troubleshooting Guide below. 2. AstralPool recommends that you call a qualified service technician to do any work on the filter/ pump system. For technical service, in Australia please call 1300 186 875, in New Zealand please call 0800 807 665. - Page 14 XC-SERIES™ • Installation And Operation Manual NOTES...
- Page 15 XC-SERIES™ • Installation And Operation Manual NOTES...
- Page 16 Fluidra Group Australia Pty Ltd PO Box 7238, Wetherill Park NSW 2164 ABN: 87 002 641 965 1300 763 021 | AstralPool.com.au Fluidra NZ Ltd 13 Douglas Alexander Parade Rosedale, Auckland 0632 NZBN: 942 903 181 70759 0800 807 665 | AstralPool.co.nz ©2022 Fluidra S.A.
