Arduino® Nano 33 BLE Sense Rev2

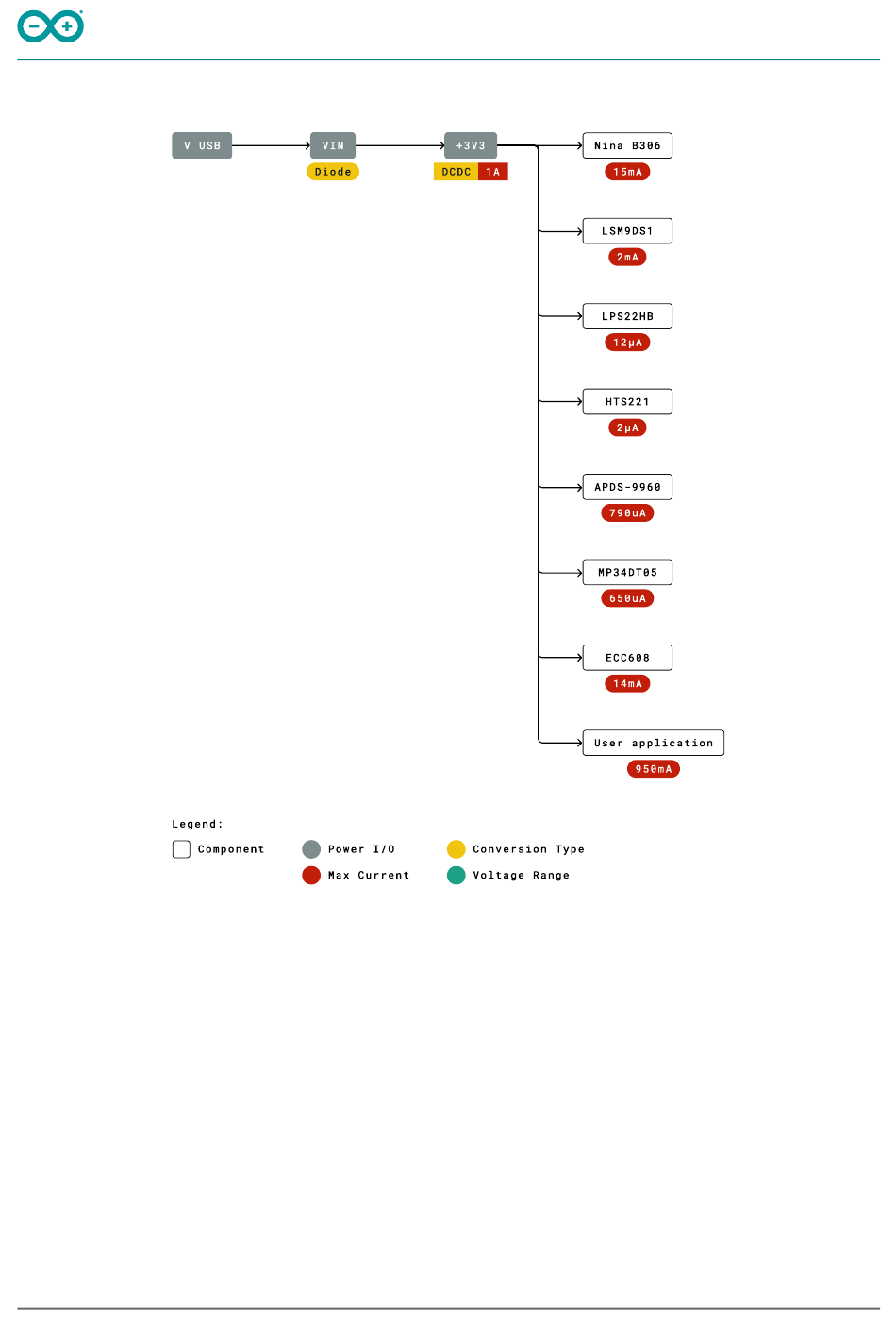

Power tree
NOTE: Since V
feeds V
via a Schottky diode and a DC-DC regulator specified minimum input voltage is 4.5V the
USB
IN
minimum supply voltage from USB has to be increased to a voltage in the range between 4.8V to 4.96V depending
on the current being drawn.
11 / 19
Arduino® Nano 33 BLE Sense Rev2
Modified: 12/01/2023
