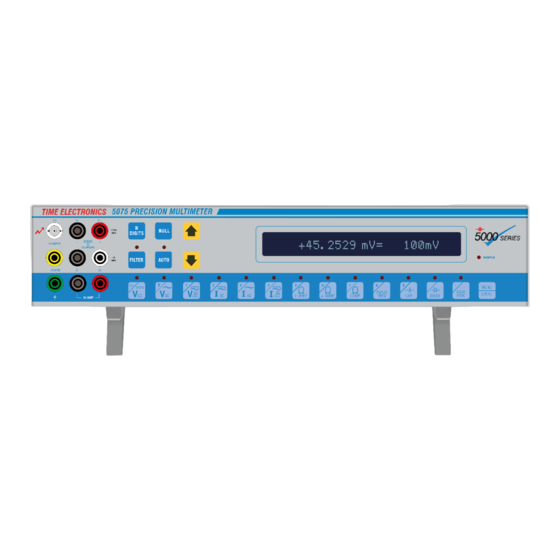

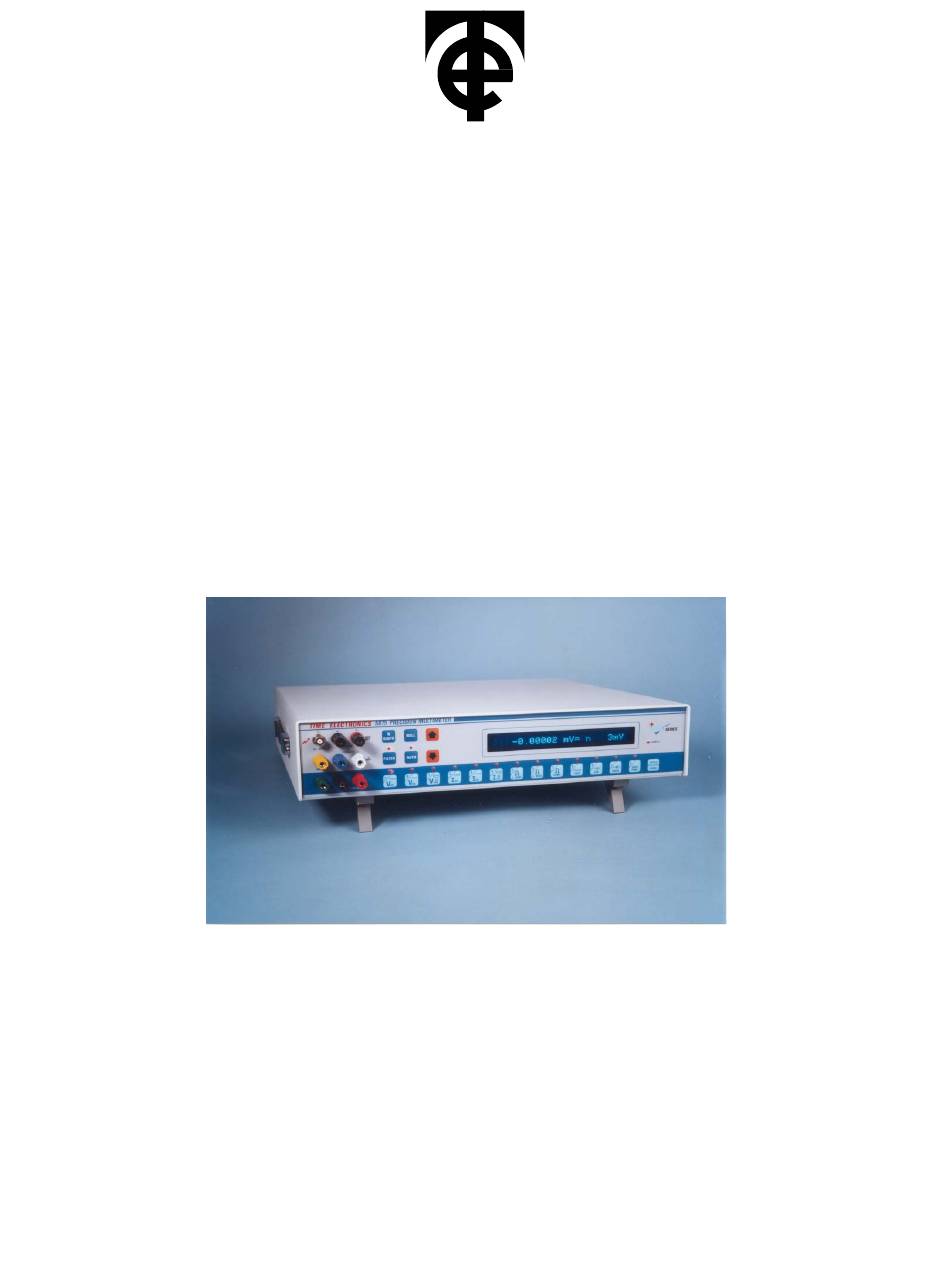

- Page 1 5075 Precision Digital Multimeter GPIB Command Guide Time Electronics Ltd Unit 11 Botany Industrial Estate Tonbridge, Kent, TN9 1RH Tel: 01732 355993 Fax: 01732 770312 E-Mail: mail@TimeElectronics.co.uk Web Site: www.TimeElectronics.co.uk V1 07/12/06...
- Page 2 Repetitive calibration work can be speedily and accurately carried out, giving printed results if required. The 5075 is compatible with the IEEE - 488 (1978) interface bus. The IEEE - 488 standard defines a complete interface system for the interconnection of instruments and computers using a bit parallel, byte serial bi-directional bus.
- Page 3 1.5. IEEE Connector The pin connections and dimensions of the IEEE connector are illustrated in Figure 6.1 and in Table 6.1. Figure 6.2 illustrates the connections. IEEE - 488 IEC - 625 PIN NUMBER STANDARD FUNCTION FUNCTION DIO 1 DIO 1 DIO 2 DIO 2 DIO 3...
- Page 4 1.7. Local/Remote Operation The 5075 is switched into remote operation when a valid command is received on the IEEE bus. The unit will remain in remote control until the MENU/LOCAL key is pressed on the DMM or until the unit is switched off.
- Page 5 QuickBasic language by Microsoft command. Refer to your IEEE controller for specific commands. The 5075 command string consists of commands from the 5075 Instruction set. These commands will instruct the 5075 to perform measurement functions or other operations.
- Page 6 MEASUREMENT FUNCTION SINGLE CHARACTER COMMANDS DC VOLTAGE NULL AC VOLTAGE TAKE READING AC/DC COUPLED VOLTAGE TRANSMIT VALUE TO IEEE DC CURRENT RESET AC CURRENT AC/DC COUPLED CURRENT 2 WIRE RESISTANCE 4 WIRE RESISTANCE OUTPUT MODES FREQUENCY CAPACITANCE DIODE CHECK OUTPUT VALUE OUTPUT VALUE AND FUNCTION RESOLUTION...
- Page 7 1.14. Programming Example The following simple demonstration program written in Basic takes one reading from the DMM. The IEEE interface card in your computer may be different from the one used in this example program. The following program will allow the operator to send a valid IEEE command to the DMM, to set a range or filter and then display the result.
- Page 8 Guarantee Period The 5075 is guaranteed against defects in materials and workmanship for a period of one year from its delivery to the customer. We maintain comprehensive after sales Facilities and the unit can, if necessary be returned to us for servicing.
