- Page 1 24-Port Gigabit Ethernet Unmanaged Switch DC-S-24M Sku: 45123 User Manual Version 1.0 Updated 10/29/2021...
- Page 2 Copyright Statement Our company reserves all copyrights of this document. Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of our company is prohibited. Exemption Statement This document is provided "as is".
-
Page 3: Table Of Contents
Table of Content 1 Product Introduction ..........................1 1.1 DC-S-24M ..................Error! Bookmark not defined. 2 Installing and Connecting the Switch ...................... 5 2.1 Installation ............................. 5 2.1.1 Desktop Installation ......................5 2.1.2 Rack-mountable Installation in 19-inch Cabinet ..............5 2.1.3 Power on the Switch ...................... -
Page 4: Product Introduction

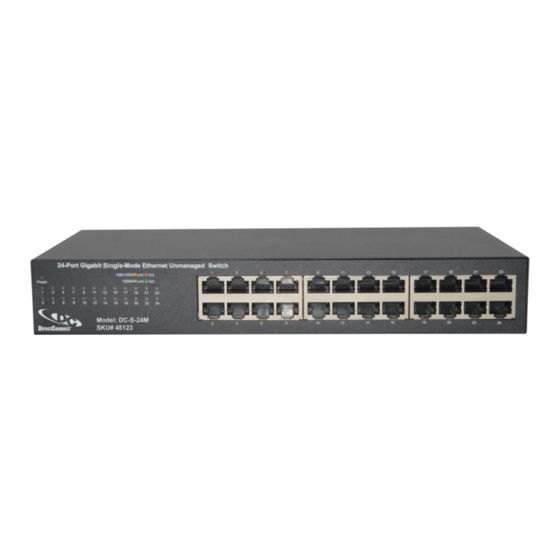

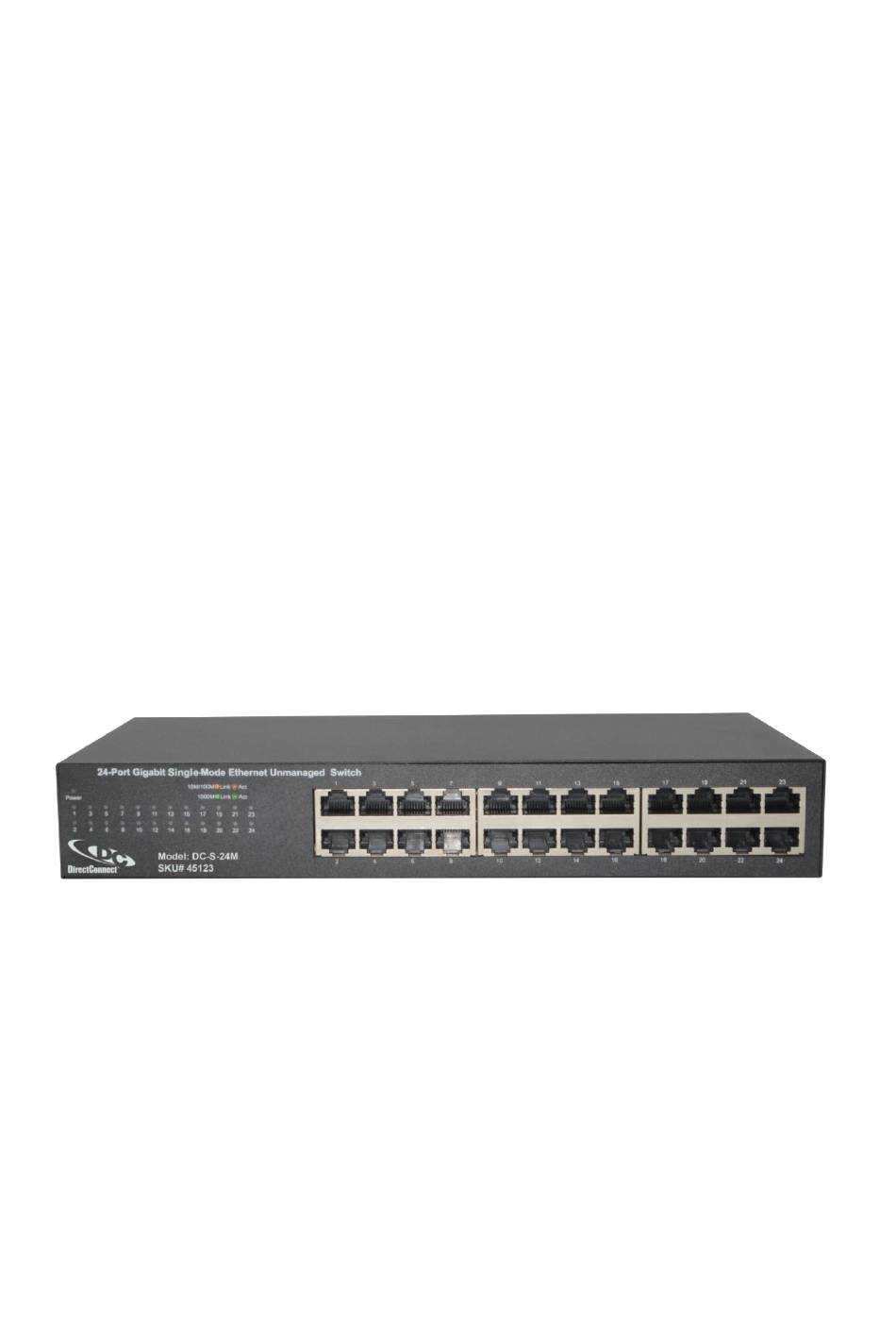

Thank you for choosing DirectConnect Networking! DC-S-24M provides the seamless network connection. This device integrates 1000Mbps Gigabit Ethernet, 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities in a highly flexible package. The Switch is a high performance upgrade to a 1000Mbps Gigabit network. Based on Gigabit Ethernet Technology. - Page 5 24*10/100/1000Mbps Adaptive Ethernet port, a series of LED indicators. The rear panel provides a AC power connector, a Ground Terminal. Its appearance is shown below: Figure 1-1 DC-S-24M Product appearance drawing Figure 1-1 Front Panel Figure 1-2 DC-S-24M Front Panel Diagram Figure 1-2 【Annotation】...
- Page 6 Cooling Solution DC-S-24M adopts a fanless design. To ensure good hear dissipation, when placing the chassis, a space of 10cm should be reserved on both sides of the chassis and the rear panel to facilitate air circulation. Avoid blocking the openings the chassis, otherwise the heat dissipation effect may be affected.
- Page 7 24-Port Gigabit Ethernet Unmanaged Switch Solid green The port is connected at 1000Mbps. Blinking The port 1000M data transceiver.
-
Page 8: Installing And Connecting The Switch
24-Port Gigabit Ethernet Unmanaged Switch Installing and Connecting the Switch This part describes how to install your Ethernet Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. 2.1 Installation Please follow the following instructions in avoid of incorrect installation causing device damage and security threat. -
Page 9: Power On The Switch
24-Port Gigabit Ethernet Unmanaged Switch Figure 2-2 - Rack Installation 2.1.3 Power on the Switch The Switch is powered on by the AC 100-240V 50/60Hz internal high-performance power supply. Please follow the next tips to connect: AC Electrical Outlet: It is recommended to use single-phase three-wire receptacle with neutral outlet or multifunctional computer professional receptacle.
