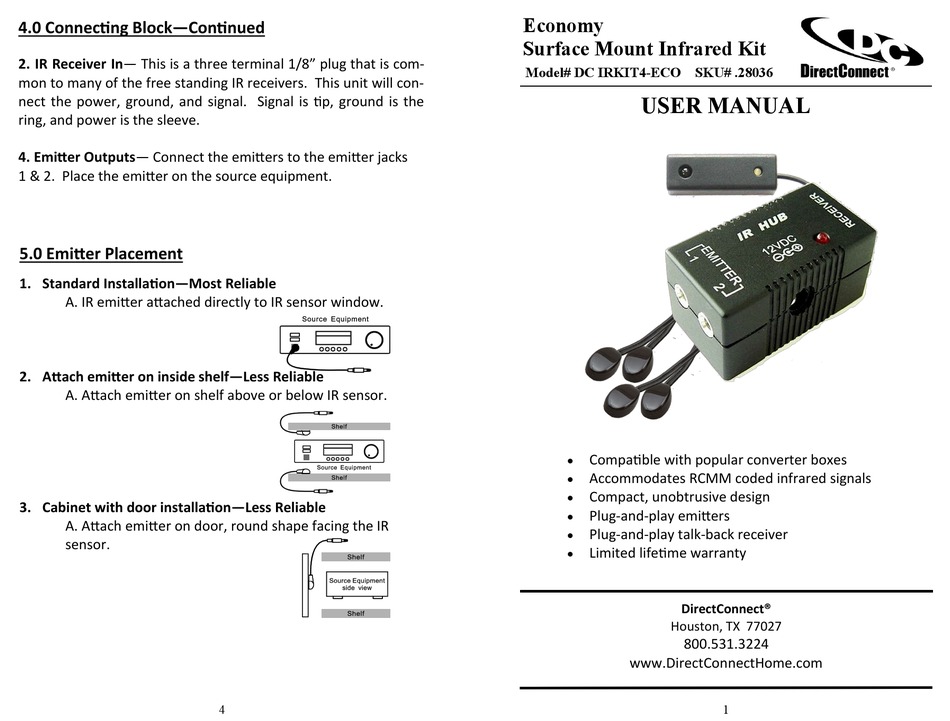

DirectConnect DC IRKIT4-ECO User Manual

4.0 Connecting Block—Continued
2. IR Receiver In— This is a three terminal 1/8" plug that is com-
mon to many of the free standing IR receivers. This unit will con-
nect the power, ground, and signal. Signal is tip, ground is the
ring, and power is the sleeve.
4. Emitter Outputs— Connect the emitters to the emitter jacks
1 & 2. Place the emitter on the source equipment.
5.0 Emitter Placement
1. Standard Installation—Most Reliable
A. IR emitter attached directly to IR sensor window.
2. Attach emitter on inside shelf—Less Reliable
A. Attach emitter on shelf above or below IR sensor.
3. Cabinet with door installation—Less Reliable
A. Attach emitter on door, round shape facing the IR
sensor.
4
Economy
Surface Mount Infrared Kit
Model# DC IRKIT4-ECO SKU# .28036

USER MANUAL


Compatible with popular converter boxes

Accommodates RCMM coded infrared signals

Compact, unobtrusive design

Plug-and-play emitters

Plug-and-play talk-back receiver

Limited lifetime warranty
DirectConnect®
Houston, TX 77027
800.531.3224
www.DirectConnectHome.com
1
