Summary of Contents for DirectConnect DCFG161000M

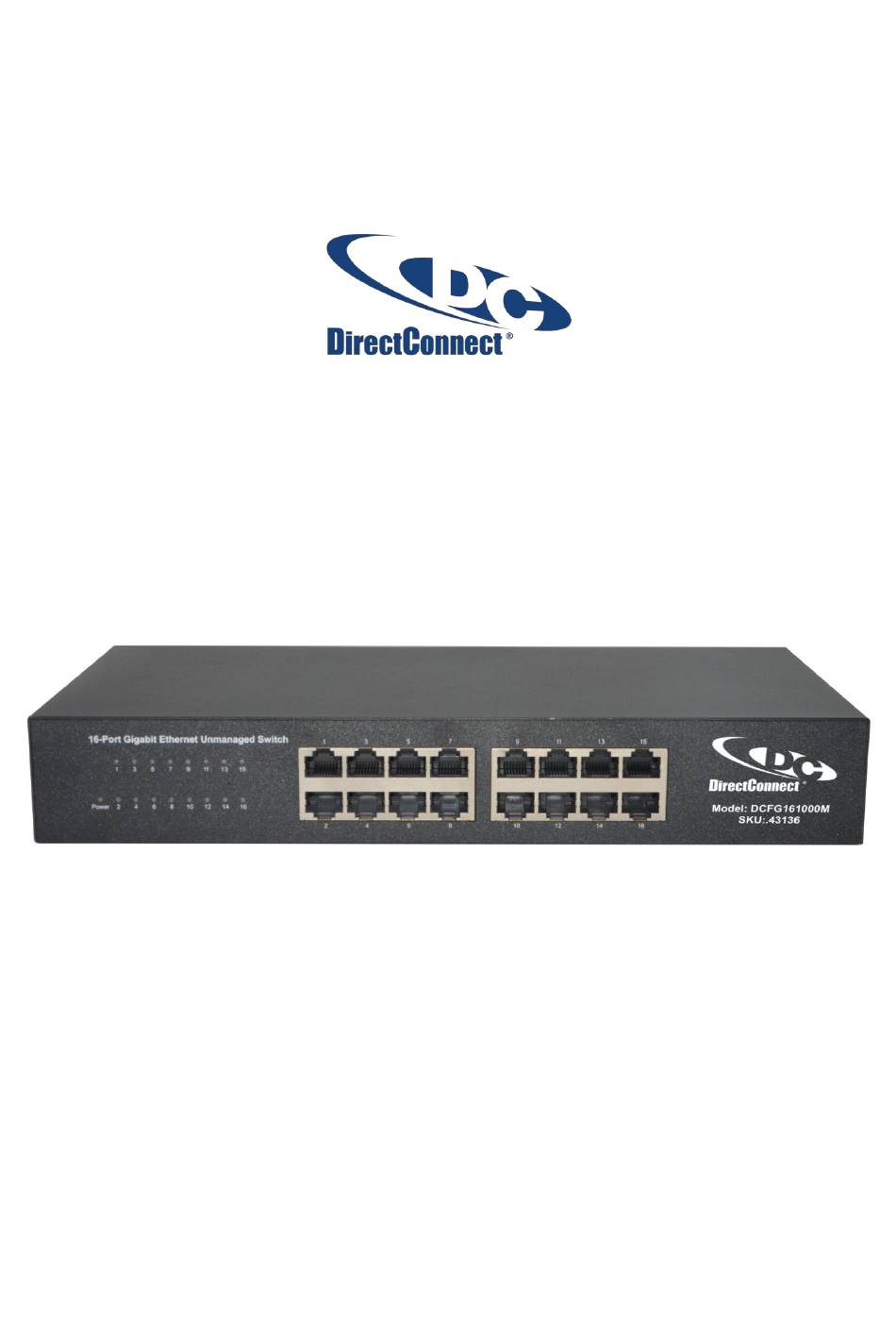

- Page 1 16-Port Gigabit Ethernet Unmanaged Switch User Manual Version 1.0 | 08/01/2020...
- Page 2 This document is provided "as is". The contents of this document are subject to change without any notice. Please obtain the latest information through our company website. DirectConnect endeavors to ensure content accuracy and will not be responsible for losses and damages caused due to content...
-
Page 3: Table Of Contents
Table of Contents 1. Product Introduction............................1 1.1. Product Overview............................1 1.2. Features...............................1 1.3. Package Contents............................1 2. External Component Description........................2 2.1. Front Panel..............................2 2.2. Rear Panel..............................3 3. Installing and Connecting the Switch......................4 3.1. Installation method.............................4 3.2. Installation..............................4 3.2.1. -
Page 4: Product Introduction
User Manual x 1 DC Power Adapter x 1 Note : If any part is lost or damaged, please contact DirectConnect immediately. In addition, make sure that you have the necessary tools available to install the switch. -
Page 5: External Component Description
16-Port Gigabit Ethernet Unmanaged Switch 2. External Component Description 2.1. Front Panel Switch front panel consists of a series of LED lights and (16) 10/100/1000Mbps RJ45 ports, as shown in the following figure. Figure 1 - Front Panel 10/100/1000Mbps RJ45 ports (1~16): Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or 1000Mbps. -
Page 6: Rear Panel
16-Port Gigabit Ethernet Unmanaged Switch at a speed of 1000Mbps Sending or receiving data at a Blinking green speed of 1000Mbps 2.2. Rear Panel The rear panel of the Switch contains grounding terminal and DC power connector shown in the figure below. -
Page 7: Installing And Connecting The Switch
16-Port Gigabit Ethernet Unmanaged Switch 3. Installing and Connecting the Switch This part describes how to install your Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. 3.1. Installation Method Follow the below guide to install the switch: Please install the switch in a fairy cool and dry place. -
Page 8: Power On The Switch
16-Port Gigabit Ethernet Unmanaged Switch Figure 4 - mounting bracket Use the screws provided with the equipment rack to mount the Switch on the rack and tighten it. Figure 5 - Install into the rack 3.2.3. Power on the Switch The Switch is powered on by an external power supply. - Page 9 16-Port Gigabit Ethernet Unmanaged Switch Figure 6 - connecting Switch and PC...
-
Page 10: Appendix: Technical Specifications
16-Port Gigabit Ethernet Unmanaged Switch Appendix: Technical Specifications Hardware Specifications IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE Standards and Protocols 802.1Q, IEEE 802.3x, IEEE 802.3az Number of Ports 16 x 10/100/1000Mbps Auto-Negotiation ports 10Base-T: UTP category 3,4,5 cable (maximum 100m) Network Media (Cable) 100Base-Tx: UTP category 5,5e cable (maximum 100m) 1000Base-T: UTP category 5e,6 cable (maximum 100m)
