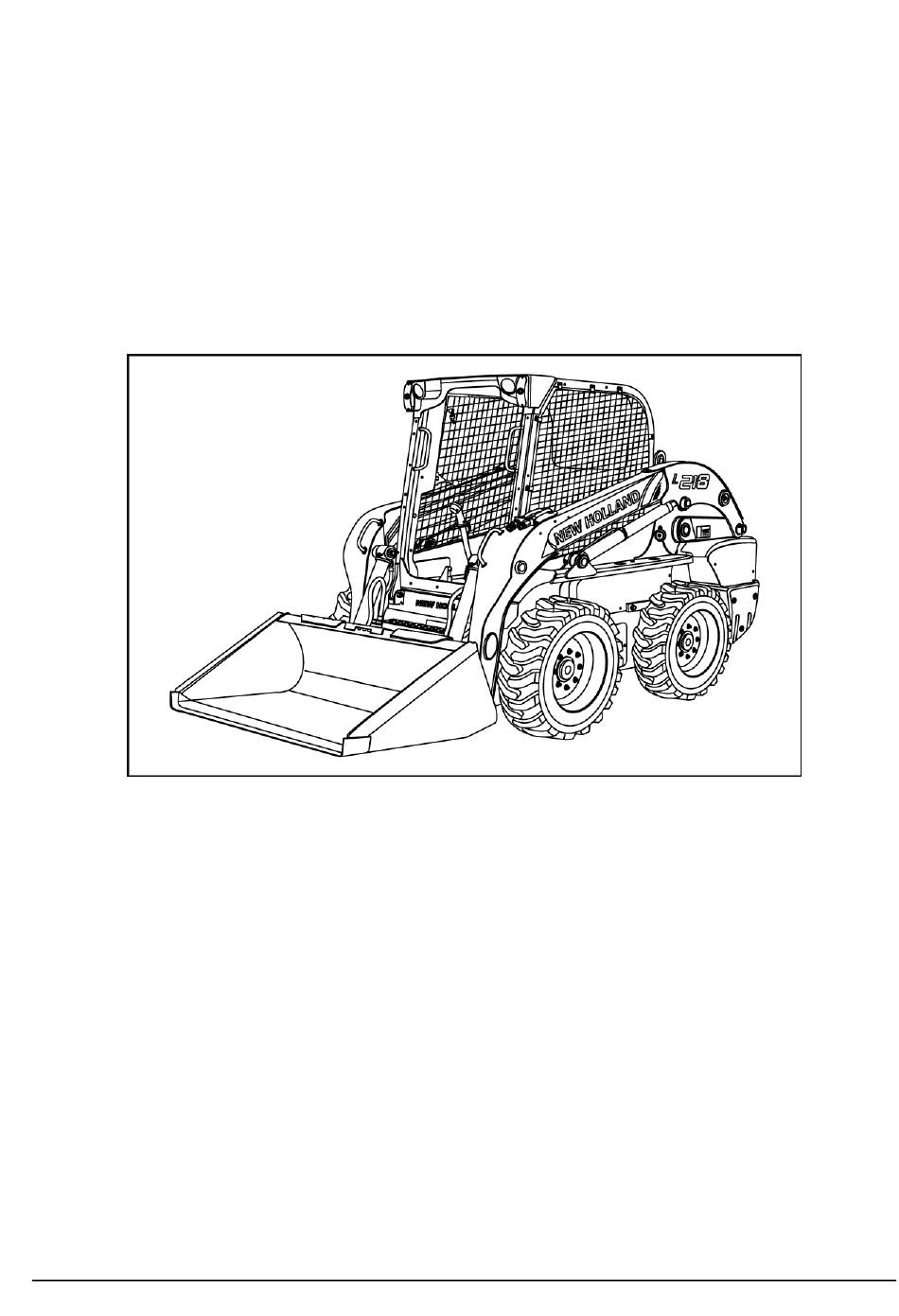

- Page 1 SERVICE MANUAL C227 , C232 , C238 , L213 , L215 , L218 , L220 , L223 , L225 , L230 84522361 15/06/2011...
- Page 2 Contents INTRODUCTION HYDRAULIC, PNEUMATIC, ELECTRICAL, ELECTRONIC SYSTEMS A PRIMARY HYDRAULIC POWER SYSTEM ..........A.10.A SECONDARY HYDRAULIC POWER SYSTEM.
- Page 3 USER CONTROLS AND SEAT ............E.32.A USER CONTROLS AND SEAT Operator seat .
- Page 4 INTRODUCTION 84522361 15/06/2011...
-
Page 5: Table Of Contents
Contents INTRODUCTION Foreword - Ecology and the environment ............3 Safety rules . -
Page 6: Foreword - Ecology And The Environment
Do not open the air-conditioning system yourself. It contains gases which should not be released into the at- • mosphere. Your NEW HOLLAND CONSTRUCTION dealer or air conditioning specialist has a special extractor for this purpose and will have to recharge the system properly. -
Page 7: Safety Rules
INTRODUCTION Safety rules 2 - Series Personal safety This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible death or injury. Throughout this manual and on machine decals, you will find the signal words DANGER, WARNING, and CAUTION followed by special instructions. -
Page 8: Safety Rules - Personal Safety
When transporting on a road or highway, use accessory lights and devices for adequate warning to the operators of other vehicles. In this regard, check local government regulations. Various safety lights and devices are available from your NEW HOLLAND CONSTRUCTION dealer. Practice safety 365 days a year. -
Page 9: Basic Instructions - Important Notice Regarding Equipment Servicing
Some information could not be updated due to modifications of a technical or commercial type, or changes to the laws and regulations of different countries. In case of questions, refer to your NEW HOLLAND CONSTRUCTION Sales and Service Networks. 84522361 15/06/2011... -
Page 10: Torque - Minimum Tightening Torques For Normal Assembly
INTRODUCTION Torque - Minimum tightening torques for normal assembly 2 - Series METRIC NON-FLANGED HARDWARE NOM. LOCKNUT LOCKNUT SIZE CL.8 CL.10 CLASS 8.8 BOLT and CLASS 10.9 BOLT and W/CL8.8 W/CL10.9 CLASS 8 NUT CLASS 10 NUT BOLT BOLT PLATED PLATED UNPLATED UNPLATED... - Page 11 INTRODUCTION METRIC FLANGED HARDWARE NOM. CLASS 8.8 BOLT and CLASS 10.9 BOLT and LOCKNUT LOCKNUT SIZE CLASS 8 NUT CLASS 10 NUT CL.8 CL.10 W/CL8.8 W/CL10.9 BOLT BOLT PLATED PLATED UNPLATED UNPLATED W/ZnCr W/ZnCr 2.4 N·m (21 lb 3.2 N·m (28 lb 3.5 N·m (31 lb 4.6 N·m (41 lb 2.2 N·m (19 lb...
- Page 12 INTRODUCTION Manufacturer's Identification Property Class Clock Marking of Property Class and Manufacturer's Identification (Optional), i.e. marks 60 ° apart indicate Class 10 properties, and marks 120 ° apart indicate Class 8. INCH NON-FLANGED HARDWARE LOCKNUT LOCKNUT NOMINAL SAE GRADE 5 BOLT SAE GRADE 8 BOLT GrB W/ Gr5 GrC W/ Gr8...
- Page 13 INTRODUCTION INCH FLANGED HARDWARE NOM- LOCKNUT LOCKNUT SAE GRADE 5 BOLT and SAE GRADE 8 BOLT and INAL GrF W/ Gr5 GrG W/ Gr8 SIZE BOLT BOLT UNPLATED PLATED UNPLATED PLATED or PLATED W/ZnCr or PLATED W/ZnCr SILVER GOLD SILVER GOLD 12 N·m (106 lb 13 N·m (115 lb...
- Page 14 INTRODUCTION Inch Lock Nuts, All Metal (Three optional methods) 20090268 Grade Identification Grade Corner Marking Method (1) Flats Marking Method (2) Clock Marking Method (3) Grade A No Notches No Mark No Marks Grade B One Circumferential Notch Letter B Three Marks Grade C Two Circumferential Notches...
-
Page 15: General Specification - General Welding
INTRODUCTION General specification - General Welding WARNING Explosion hazard! Batteries emit explosive gases. Always ventilate when using in an enclosed area or when charging. Keep the battery away from sparks, open flames, and other ignition sources. Failure to comply could result in death or serious injury. W0369A Use a 7013 or 7011 welding rod or wire that meets the following American Welding Society (AWS) specifications: ER80S-D2, ER70S-6 or E70C-M6-H4. - Page 16 ENGINE AND PTO IN - ENGINE ENGINE - Remove L213, L215, L218, L220 Prior operation: Tilt system - Tilt (E.34.A). Prior operation: Battery - Disconnect (A.30.A). Remove the hood strut (1) from hood 931001682 Remove hood mounting hardware (2) from left and right hand side 931002025 Remove the hood (3).
- Page 17 ENGINE AND PTO IN - ENGINE Remove the four mounting bolts (4) and slide the fan off the hub. 931002027 Remove the five mounting bolts (5) retaining the muf- fler inlet pipe mounting flange to the turbocharger and remove muffler. 931002028 Remove the two retaining bolts (6) from the muffler support.
- Page 18 ENGINE AND PTO IN - ENGINE Loosen the hose clamps on the intake tube at both ends, remove the intake tube (8), cover turbocharger inlet to avoid entry of debris. 931002031 Remove air cleaner housing (9). 931002032 Loosen hose clamp and remove upper radiator hose (10) from engine.
- Page 19 ENGINE AND PTO IN - ENGINE Disconnect the starter connections (13). 931002035 Disconnect the alternator connection (14). 931002036 Disconnect temperature sender wire (15). 931002037 Disconnect oil pressure sender wire (16) and wire clamp (17). 931002038 84522361 15/06/2011 B.10.A / 6...
- Page 20 ENGINE AND PTO IN - ENGINE Disconnect throttle cable by removing the nut (A)and bolt (B) from the throttle body. Remove cable support clamp (C) by loosening the two hex head bolts (D). 931002039 Disconnect wire harness (18) and clamps (19) from the top of the flywheel housing.
- Page 21 ENGINE AND PTO IN - ENGINE Disconnect the spade connector (E)from the back side of the fuel shut off solenoid. 931002043 Place a suitable container under the remote engine oil filter lines. Label and disconnect oil filter lines (22). NOTE: Cap the ends to avoid entry of debris. 931002044 Disconnect the ground from the engine (23) to the battery quick disconnect.
- Page 22 ENGINE AND PTO IN - ENGINE Remove engine oil pan drain hose clamp (F). 931002050 Remove the front engine mounts (25). 931002047 Remove the rear engine mount (26). 931002048 Remove the four mounting bolts (27) from the fixed hood, remove hood. 931002049 84522361 15/06/2011 B.10.A / 9...
- Page 23 ENGINE AND PTO IN - ENGINE Place a suitable support beam across the skid steer frame. Tie a suitable strap around the pump and secure to the support beam, as shown. 931002051 Attach proper lifting straps to the eye hooks (28) pro- vided on the engine.
