LAIA B&H PC PRO WIFI User Manual

B&H PC PRO WIFI
P/N: BHC-110WF
User manual

Know your product

1
Universal mounting clip
Pairing button
USB-C Power connection port
Tripod thread
Concepted & designed in EU I Copyright © 2017 All rights reserved - www.laiatech.com
THE AI & IoT CAMERA COMPANY
Power ON/OFF button
Led indicator
Pairing button
What´s in the box
2
x1 USB A - USB C 116cm
cable
x1 USB-A dongle receiver

Product features

3

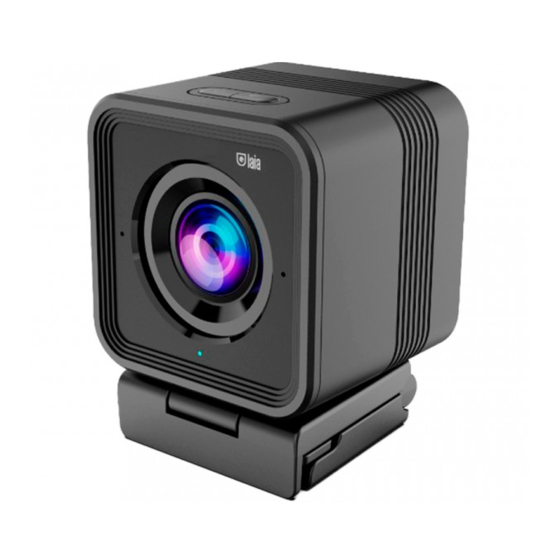

Laia PC Pro Wifi is a wireless 2.4 GHz camera that does not requires a cable
connection. Powered by its built-in lithium battery offers you more than 3 hours of
use with a single charge, but it is also possible to use it while charging through
USB-C cable. In addition, its built-in universal mounting clip offers 360° rotation an
110° inclination for quick and easy camera placement and adjustments.
PC Pro Wifi can be used at a maximum distance of about 20 meters in a straight
line without obstacles in a proper RF environment. The range of use varies greatly
depending on the environment. Support UVC and UAC (2.0 and downward
compatible) protocol, so it is not necessary to install any extra drivers. Simply plug-
in the included USB receiver and it will work automatically.
It is also compatible with the main video conferencing services on the market such
as Microsoft Teams, Zoom and Skype. Supporting 1080P FullHD can provide
image encoding output of 1080@30fps thanks to its USB 2.0 interface. The field of
view offers up to 65.5º degrees horizontally and 73º degrees diagonally, along with
the built-in microphone that offers room sound pickup at a 180º angle.

Safety precautions

4
Product handle
Do not handle any element or touch the product itself with wet hands, and do not
allow substances such as liquids and metals to get inside the product as this could
cause a short circuit.
Before cleaning the product, it must be completely disconnected from the
power supply. To connect and disconnect the cable from the product, hold the
connector firmly, without applying excessive force.
As it is an electrical product, if you notice smoke or a strange smell coming
from the product, immediately turn off the device and disconnect its power
supply.
Transportation and installation
The transportation and installation process must be done carefully to avoid
vibrations and impacts that may damage the product or affect its correct operation.
Do not step on or deform the charging cable or place it near a heat source, as it
may cause malfunction and risk of short circuit.
Do not disassemble
This product has no user-serviceable parts. Damage caused by the user is not
covered under warranty.
* If you use a router or firewall to connect to the Internet, you may not be able to
use Internet-based functions such as video chat.
x1 Wireless cam
x1 User manual
