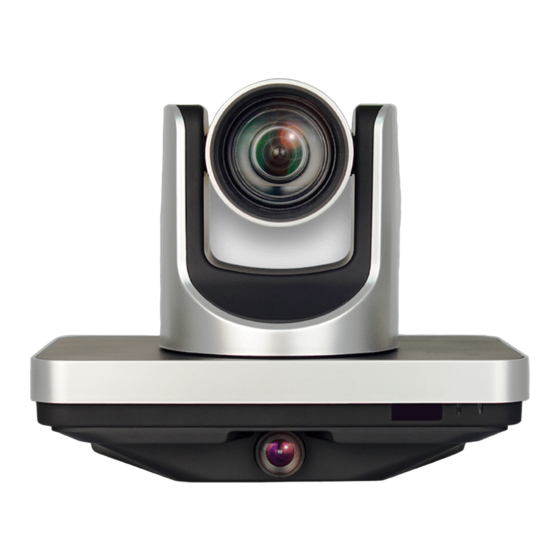

Summary of Contents for LAIA Follower
- Page 1 Follower User Manual Copyright © 2019 Laia · www.laiatech.com All rights reserved...
- Page 2 Product specifications and information which were referred to in this document are for reference only, and the content will be updated at any time without prior notice Copyright © 2019 Laia · www.laiatech.com All rights reserved...
-
Page 3: Table Of Contents
Size _____________________________________________________ 12 IR Remote Controller Explanation ____________________________ 13 RS-232 Interface __________________________________________ 15 VISCA Network Configuration ________________________________ 16 Serial Communication Control _______________________________ 17 Menu Setting _____________________________________________ 18 Network Function _________________________________________ 23 Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 4: Note
The specific frequency of electromagnetic field may affect the image of the camera! Supplied Accessories When you unpack, check that all the supplied accessories are included: Camera ................1PCS AC power adaptor ............. 1PCS Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 5: Quick Start
Step1. Please check connections are correct before starting Step2. Setting of the system select switch The option of video format: VIDEO SYSTEM 1080p60 720p30 1080p50 720p25 1080i60 1080i50 720p60 720p50 1080p30 1080p25 Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 6: Features
Easy Configuration Easy to make a configuration for tracking, direct connect by Ethernet, just need make some base parameters for configuration, large engineering debugging time and cost will be save. Copyright © 2019 Laia · www.laiatech.com All rights reserved... - Page 7 Low-light High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear. Copyright © 2019 Laia · www.laiatech.com All rights reserved...
- Page 8 Pan Speed Range 1.7° ~ 100°/s Tilt Speed Range 1.7° ~ 69.9°/s H & V Flip Support Image Freeze Support Local Storage Support Number of Preset Preset Accuracy 0.1° Panorama Camera Copyright © 2019 Laia · www.laiatech.com All rights reserved...
- Page 9 Audio Bit Rate 96Kbps, 128Kbps, 256Kbps Support protocols TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. Input/Output Interface 1xHDMI: Version 1.3 HD Output 2x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard Copyright © 2019 Laia · www.laiatech.com All rights reserved...
- Page 10 Generic Specification Input Voltage DC 12V Current Consumption 1.5A (Max) Operating Temperature -10°C ~ 40°C (14°F ~ 104°F) Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F) Power Consumption 18W (Max) MTBF >30000h Copyright © 2019 Laia · www.laiatech.com All rights reserved...
-
Page 11: Main Unit
11. Power switch 4. RJ45 interface 12. POWER lamp 5. LINE-IN interface 13. RJ45 interface 6. RS485 interface 14. HD-SDI interface 7. HD-SDI interface 15. RS232 OUT interface 8. HDMI interface Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 12: Size
Size Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 13: Ir Remote Controller Explanation
L/R Set +1[STD]: set the Pan-Tilt turn the same direction as the L/R Set L/R Set +2[REV]: set the Pan-Tilt turn the opposite direction as the L/R Set 9. Focus Buttons Used for focus adjustment. Copyright © 2019 Laia · www.laiatech.com All rights reserved... - Page 14 16. BLC (Backlight Compensation) Button [*]+[＃]+[6]: Quickly recover the default BLC ON/OFF: Press this button to enable the [*]+[＃]+[8]: Look the camera version backlight compensation. Press it again to disable [*]+[＃]+[9]: Quickly set up inversion Copyright © 2019 Laia · www.laiatech.com All rights reserved...
-
Page 15: Rs-232 Interface
6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI Camera Mini DIN Function 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND 7.IR OUT 7.NC 8.NC 8.NC IR OUT Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 16: Visca Network Configuration
VISCA Network Configuration Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 17: Serial Communication Control
(Note: If the position preset 0 has been stored, the position preset 0 will be called up after initialization) Then the users can control the camera with commands in the command list. Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 18: Menu Setting
Optional items: On, Off (Effective only in Auto mode ) DRC: DRC strength, Optional items: 0 ~ 8. Bright: Intensity control, Optional items: 00~17. Copyright © 2019 Laia · www.laiatech.com All rights reserved... - Page 19 Move the cursor to the Image item in the main WB Mode Auto menu and press [home] button, IMAGE menu RG Tuning appears, as shown in the following figure. BG Tuning Saturation AWB sens Select Item Change Value [Menu] Back Copyright © 2019 Laia · www.laiatech.com All rights reserved...
- Page 20 Gamma: Optional items: Default, 0.45, 0.5, the main menu and press [home] button, NOISE 0.56, 0.63 REDUCTION menu appears, as shown in the Style: Optional items: Norm, Clarity, Bright, Soft, following figure. Copyright © 2019 Laia · www.laiatech.com All rights reserved...
- Page 21 0 ~ 31 V_AddrFix: If I can change through the serial port of infrared switch, Optional items: On, Off （When set to On, useless in 88 30 01 FF Command） Copyright © 2019 Laia · www.laiatech.com All rights reserved...
- Page 22 Change Value [Home] OK [Menu] Back Note: Press [HOME] button to confirm, All parameter restore default, Include IR Remote address and VISICA Address Restore: Confirm restore factory settings. Optional items: Yes, No Copyright © 2019 Laia · www.laiatech.com All rights reserved...
-
Page 23: Network Function
Picture 1.1 connect by internet cable Picture 1.2 Connect by router /interchanger 4 IP camera visited/ controlled by LAN 4.1 Setup IP address Feature camera default IP address "192.168. 100.81", panorama camera default IP address"192. Copyright © 2019 Laia · www.laiatech.com All rights reserved... - Page 24 After login, shown as below: Input URL address: rtsp://ip: port number/1 (First stream); rtsp://ip: port number/2 (Second stream). NOTE！ RTSP port number default 554. NOTE！ Copyright © 2019 Laia · www.laiatech.com All rights reserved...
- Page 25 "Set" button, when PTZ turn to other 2) Audio control buttons: can set slient mode. position, click "Call" button, PTZ turn back to 3) Full screen switch button. preset position. PTZ Setup Language selection Copyright © 2019 Laia · www.laiatech.com All rights reserved...
- Page 26 9) Bit Rate control 3) Encode Protocol Code stream control way: Support H.264 and H.265 and MJPEG three Constant bit rate: video coder will be coding according to preset speed formats. Copyright © 2019 Laia · www.laiatech.com All rights reserved...
- Page 27 Contrast0~14, slider control, on the right Bit rate 96k,128k,256k,selectable shows the corresponding numerical. Default 6. 4) Input Type 4) Sharpness line in only 5) Input VolL Sharpness0~15, slider control, on the right Copyright © 2019 Laia · www.laiatech.com All rights reserved...
- Page 28 WEB SERVER program using which port to transmit. The user can modify the password (letters and When port mapping, need to be consistent with Numbers only) the port number(default port: 80) Copyright © 2019 Laia · www.laiatech.com All rights reserved...
- Page 29 Setting multicast "On", "Off", and multicast address(default address 224.1.2.3)and port(default 6688) 8) Apply / Cancel Modify network parameters then press "Apply" button to modify network parameters, press "Cancel" button to cancel network parameters. Copyright © 2019 Laia · www.laiatech.com All rights reserved...
- Page 30 Installation: Visit IP Camera address, click [Download ], download dialog box will pop up, select [Run] or [Save] to download. After downloading finished, the installation interface pops up, it will automatically Copyright © 2019 Laia · www.laiatech.com All rights reserved...
- Page 31 3. Check IR address of the Remote Commander is set correctly. Serial communication cannot control the camera 1. Check the camera working mode. 2. Check control cable is connected correctly. Copyright © 2019 Laia · www.laiatech.com All rights reserved...
