Summary of Contents for LAIA CUTE 30X

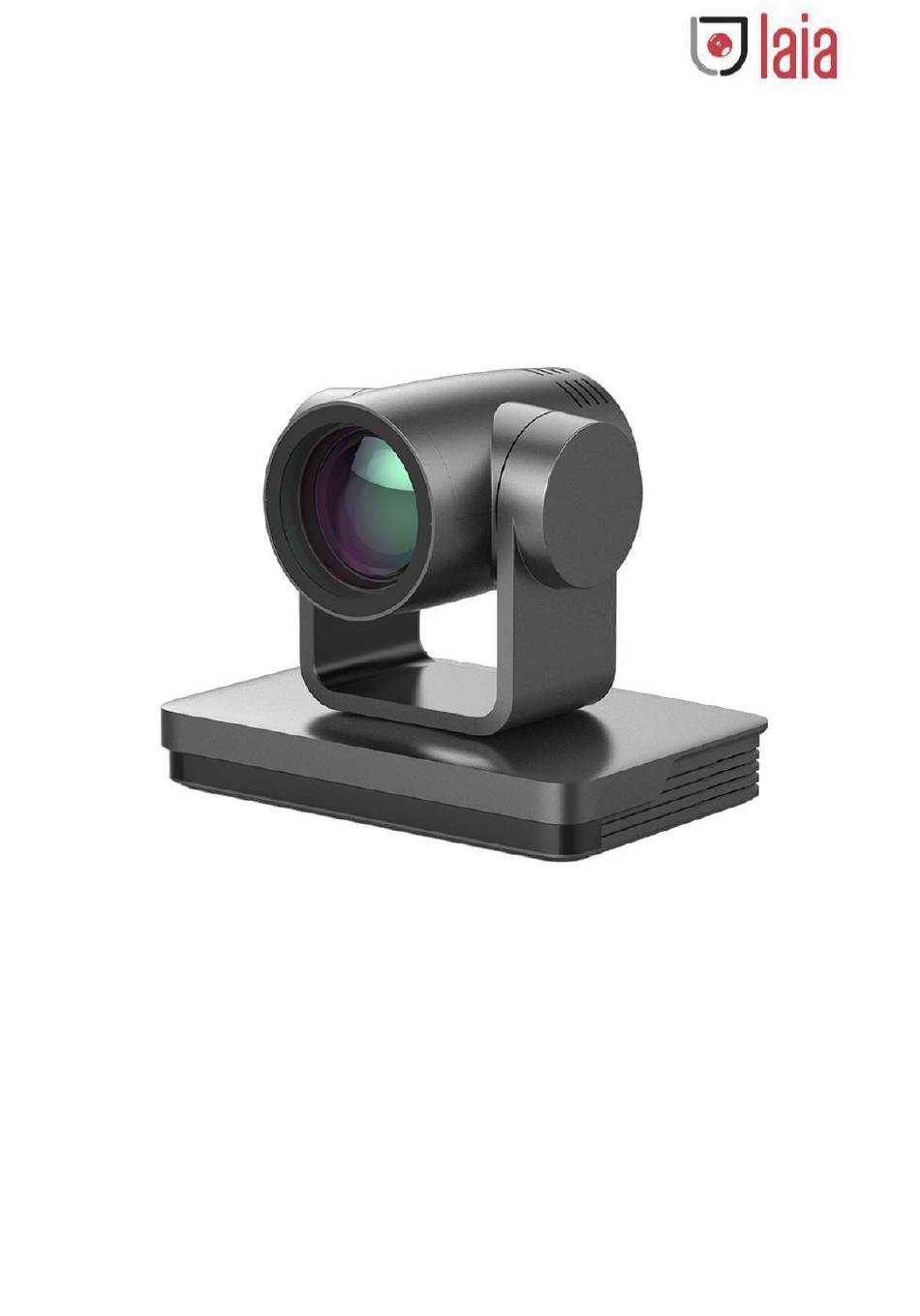

- Page 1 CUTE 12/30X User Manual Copyright © 2021 Laia · www.laiatech.com All rights reserved...
- Page 2 Copyright © 2021 Laia · www.laiatech.com All rights reserved...
- Page 3 ★ The product uses DC 12V power supply, and the polarity of power plug is as shown in the right picture. 3. Careful installation Copyright © 2021 Laia · www.laiatech.com All rights reserved - 1 -...
- Page 4 ★ The electromagnetic field at a specific frequency may affect the local image.The product is Class A product. Radio interference may occur in the home environment, and users need to take appropriate measures. Copyright © 2021 Laia · www.laiatech.com All rights reserved - 2 -...
-
Page 5: Table Of Contents
PROTOCOL COMMAND LIST 6. MAINTENANCE AND TROUBLESHOOTING ......................- 25 - 6.1. P ..........................- 25 - RODUCT MAINTENANCE 6.2 T ............................- 25 - ROUBLESHOOTING COPYRIGHT ................................- 26 - Copyright © 2021 Laia · www.laiatech.com All rights reserved - 3 -... -
Page 6: Fast Installation
16. RS485 input interface (left plus right minus) 5. Tripod Screw Hole 11. USB2.0 Interface Disk 17. Rotary dial switch Storage) 6. Tripod Screw Hole 12. CVBS Output Interface 18. Network LAN Interface Copyright © 2021 Laia · www.laiatech.com All rights reserved - 4 -... -
Page 7: Product Overview
USB3.0 Cable (U3 Model) WR Remote controller 1 piece RS232 Cable Wall mounting bracket Accessory Upside-down mounting User manual 1 bracket Double-side glue shim Warranty card 1 piece Copyright © 2021 Laia · www.laiatech.com All rights reserved - 5 -... -
Page 8: Rs-232 Interface
No Connection RS232(DB9)Port 3） Definition Port Data Carrier Detect Receive Data Transmit Data Data Terminal Ready System Ground Data Set Ready Request to Send Clear to Send Ring Indicator Copyright © 2021 Laia · www.laiatech.com All rights reserved - 6 -... -
Page 9: Main Features
Audio and video storage: USB2.0 interface supports U disk storage function, real-time recording and storage 8. Built-in gravity sensor: Built-in gravity sensor, supporting the automatic overturn function of the platform, convenient for engineering installation. Copyright © 2021 Laia · www.laiatech.com All rights reserved - 7 -... -
Page 10: Technical Specification
Auto / Manual/ One White Balance Push/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K Focus/Aperture/ Auto/Manual/One Push Focus Electronic Shutter Iris Auto/Manual Shutter Auto/Manual ON/OFF OFF/ Dynamic level adjustment Video Adjustment Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve >55dB Copyright © 2021 Laia · www.laiatech.com All rights reserved - 8 -... - Page 11 Weight 1.38KG Attachment 12V/1.5A Power supply, RS232 control cable, USB3.0 connection cable(U3 model), Package USB2.0 connection cable(U2 model), Remote Controller, Manual, Warranty Card Accessories Optional Mount (Extra Cost) Copyright © 2021 Laia · www.laiatech.com All rights reserved - 9 -...
-
Page 12: Remote Controller
When working, no operation immediately enters the sleep mode and wakes up by pressing any key. The keys of infrared remote controller and wireless remote controller are the same. Copyright © 2021 Laia · www.laiatech.com All rights reserved - 10... -
Page 13: Keys Instruction
【zoom＋】： Close the picture and increase the lens multiples 【zoom－】：Scene widening and lens multiples narrowing If these two keys are pressed for a long time, they will continue to pull closer/farther and stop when they are Copyright © 2021 Laia · www.laiatech.com All rights reserved - 11... - Page 14 8. Remote Controller Address Settings 【*】+【＃】+【F1】：Set Address No. 1 【*】+【＃】+【F2】：Set Address No. 2 【*】+【＃】+【F3】：Set Address No. 3 【*】+【＃】+【F4】：Set Address No. 4 9. Combination key function 【#】+【#】+【#】：Cancel all presets 【#】+【#】+【0】：Switching Video Format 1080P60 Copyright © 2021 Laia · www.laiatech.com All rights reserved - 12...
-
Page 15: Menu Introduction
Note: To modify the parameters in the menu, you need to exit the menu before you can save it by power off. Menu Control Key 1） 【MENU】：Enter/exit OSD menu or return to previous menu 【HOME】：Go to the next menu 【↑】【↓】：Select controls 【←】【→】：Modify parameter values English menu interface 2） Copyright © 2021 Laia · www.laiatech.com All rights reserved - 13... - Page 16 Copyright © 2021 Laia · www.laiatech.com All rights reserved - 14...
-
Page 17: Network Connection
255.255.255.0) in the IP browser as picture shown below. Click the “Confirm” to finish the adding of IP segment. User can add the corresponding network segment according to the revised IP address of the camera. Copyright © 2021 Laia · www.laiatech.com All rights reserved - 15... - Page 18 IP address needs to be verified before adding. Click the “Start” and select “Operation” to input cmd as picture below to verify if the network segment has been successfully added. Copyright © 2021 Laia · www.laiatech.com All rights reserved - 16...
-
Page 19: Internet Explorer Log In
Enter the username and password, click login (initial default username and password is "admin". After entering, you can change the username and password by yourself), and enter the Web client management interface. Copyright © 2021 Laia · www.laiatech.com All rights reserved - 17... -
Page 20: Serial Communication Control
= 0(low) - F(high) Wide(Variable) 8x 01 04 07 3p FF Direct 8x 01 04 47 0p 0q 0r 0s FF pqrs: Zoom Position Stop 8x 01 04 08 00 FF Copyright © 2021 Laia · www.laiatech.com All rights reserved - 18... - Page 21 CAM_Gain Limit Gain Limit 8x 01 04 2C 0p FF p: Gain Positon Reset 8x 01 04 0D 00 FF CAM_Bright Bright Setting 8x 01 04 0D 02 FF Copyright © 2021 Laia · www.laiatech.com All rights reserved - 19...
- Page 22 8x 01 04 A2 00 00 0p 0q FF pq: Contrast Position 8x 01 04 A4 00 FF CAM_Flip Single Command For Video Flip Flip-H 8x 01 04 A4 01 FF Copyright © 2021 Laia · www.laiatech.com All rights reserved - 20...
-
Page 23: Inquiry Command
50 06 FF 6500K y0 50 07 FF 3500K y0 50 08 FF 4500K y0 50 09 FF 5500K y0 50 0A FF 6000K y0 50 0B FF 7000K Copyright © 2021 Laia · www.laiatech.com All rights reserved - 21... - Page 24 : ARM Version vw : reserve P: 0~E Video format 0:1080P60 8:720P30 1:1080P50 9:720P25 VideoSystemInq 8x 09 06 23 FF y0 50 0p FF 2:1080i60 A：1080P59.94 3:1080i50 Copyright © 2021 Laia · www.laiatech.com All rights reserved - 22...
-
Page 25: Pelco -Dprotocol Command List
Address 0x00 0x5B Response Byte Byte Query Zoom Position 0xFF Address 0x00 0x55 0x00 0x00 Query Zoom Position Value High Value Low 0xFF Address 0x00 0x5D Response Byte Byte Copyright © 2021 Laia · www.laiatech.com All rights reserved - 23... -
Page 26: Pelco -Pprotocol Command List
Value Low Byte 0xAF Response Query Zoom Position 0xA0 Address 0x00 0x55 0x00 0x00 0xAF Query Zoom Position 0xA0 Address 0x00 0x5D Value High Byte Value Low Byte 0xAF Response Copyright © 2021 Laia · www.laiatech.com All rights reserved - 24... -
Page 27: Maintenance And Troubleshooting
Serial Port Can't Be Controlled 5） Solution: A. Whether to allocate control lines for our company? B. Check whether the protocol, baud rate and address of serial devices are consistent with the equipment. Copyright © 2021 Laia · www.laiatech.com All rights reserved - 25... -
Page 28: Copyright
The product specifications and information mentioned in this manual are for reference only and will be updated at any time without further notice. Copyright is reserved and may not be reproduced. Copyright © 2021 Laia · www.laiatech.com All rights reserved - 26...
