Summary of Contents for ALDI Ferrex FAH 20-I

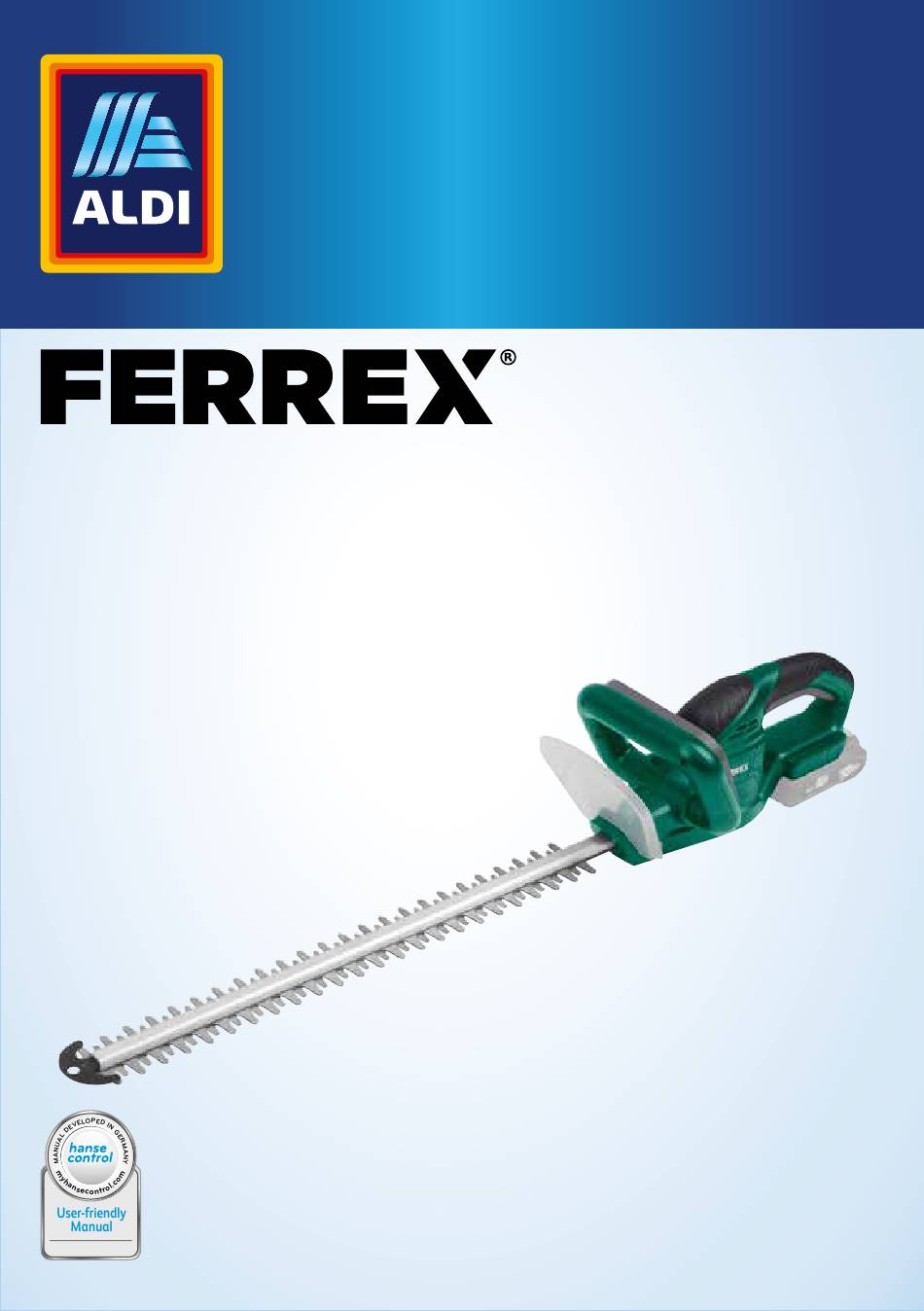

- Page 1 User Manual 20 V LI-ION CORDLESS HEDGE TRIMMER FAH 20-I Original instructions ID: #05007...
-
Page 2: Table Of Contents
Table of contents Scope of delivery ..............3 Components ................6 General information ............7 Reading and storing the user manual ........7 Proper use ..................7 Residual risks ................8 Explanation of symbols ............8 Safety ...................9 Explanation of notes ............... 9 General power tool safety instructions ........ -
Page 3: Scope Of Delivery
Scope of delivery Scope of delivery... - Page 4 Scope of delivery 15° 15° 15° 15°...
- Page 5 Scope of delivery...
-
Page 6: Components
Scope of delivery Components Cutter bar (with double cutting blade) Hand guard Guide handle (with pressure switch) Handle (with pressure switch) Protective blade cover Impact protection Release button Rechargeable battery (not included) Battery holder... -
Page 7: General Information
General information General information Reading and storing the user manual This user manual accompanies this 20 V Li-ion cordless hedge trimmer (referred to below only as the ‘product’). It contains important informa- tion on safety, usage and care. Before using the product, read the user manual carefully. Pay particular attention to the safety notes and warnings. -
Page 8: Residual Risks
General information Residual risks Despite proper use, inconspicuous residual risks cannot be completely ruled out. The following risks may arise due to the design of the product: • touching the moving or stationary cutting blades in uncovered areas; • reaching into the running cutting blades (cutting injury); •... -
Page 9: Safety
Safety 20 V AC battery voltage and DC symbol Cut length Guaranteed sound power level Safety Explanation of notes The following symbols and signal words are used in this user manual. Indicates a hazardous situation that, if not avoid- ed, could result in death or serious injury. WARNING! Designates a dangerous situation that may result in minor or moderate injury if not avoided. - Page 10 Safety b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool.
- Page 11 Safety c) Prevent unintentional starting. Ensure the switch is in the off-po- sition before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or connecting the power tool to a power supply while the switch is set to “on”...
- Page 12 Safety read these instructions operate this power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and insertion tools with care. Check for mis- alignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation.
- Page 13 Safety e) Do not use a damaged or modified rechargeable battery. Dam- aged or modified rechargeable batteries can be unpredictable and may result in fire, an explosion or a risk of injury. f) Do not expose a rechargeable battery to fire or excessively high temperatures.
-
Page 14: Supplementary Safety Instructions
Safety Supplementary safety instructions Despite proper use, inconspicuous residual risks cannot be completely ruled out. WARNING! Danger of suffocation! Parts of the product are packed in plastic film or plastic bags when delivered. Children may get caught in these when playing and suffocate. −... - Page 15 Safety − Familiarise yourself with your environment before starting work. Be aware of your environment during work. Be aware of potential hazards that you may not be able to hear because of the noise of the product. − Stand firmly when using the product. This is particularly important if you are stood on uneven ground or a ladder or similar whilst working.
- Page 16 Safety CAUTION! Hearing damage! You may damage your hearing if you use the product over a longer period of time. − Wear ear protection. CAUTION! Danger to health! You may damage your health if you use the product over a longer period of time due to the hand-arm vibration.
-
Page 17: First Use
First use First use Checking the product and package contents 1. Lift the product out of the packaging with both hands. 2. Place the product on a level, stable base, such as a workbench. 3. Check to make sure that all the contents have been received (see Fig. A). 4. - Page 18 NOTICE! Risk of damage! Using the wrong batteries or handling them incorrectly, including inserting a battery incorrectly, may damage the product. − Read and follow the instructions in the user manual for the battery and charger used. − To charge the battery, follow the instructions in the user manuals for the battery and charger which are being used.
-
Page 19: Cutting Hedges
Cutting hedges WARNING! Risk of injury! The product has a cutter bar with cutting blades that move in opposite direc- tions. Contact with running cutting blades can result in severe cuts or lacera- tions. − Keep all body parts away from running cutting blades. Never reach into the running cutting blades. - Page 20 WARNING! Risk of injury! Improper or negligent handling of the product can result in serious injury. − Handle the product with extra care when cutting hedges, shrubs and bushes. Hold the product with both hands when working. − Wear protective goggles when working to prevent flying cuttings from hitting your eyes and injuring them.
- Page 21 5. Hold the product with both hands. Make sure that you hold the handle the guide handle firmly in your hands (see Fig. C). If you are right-handed, hold the guide handle in your right hand and the handle in your left. If you are left-handed, hold the guide handle in your left hand and the handle in your right.
-
Page 22: Troubleshooting
Troubleshooting Troubleshooting Problem Possible causes Solution The product Use a charged battery. The battery is flat. doesn’t run or The product is defective. Contact the manufacturer at the switches off dur- service address specified on the ing work. warranty card. Poor performance The cutting blades of the Switch the product off, wait... -
Page 23: Cleaning
Maintenance and care − Do not touch the cutting blades with bare hands. Wear suitable protective gloves. NOTICE! Risk of damage! Water or other liquids that have penetrated the housing may cause a short cir- cuit. − Never submerge the product in water or other liquids. −... -
Page 24: Storage
Technical data If you identify any damage, you must have it repaired by a specialist workshop to prevent risks. Storage 1. Clean the product thoroughly prior to storage (see chapter “Cleaning”). 2. Make sure the protective blade cover is pushed onto the cutter bar 3. -
Page 25: Important Specifications For The Rechargeable Battery And Charger
Noise/vibration information Important specifications for the rechargeable battery and charger Only use the product in combination with Activ-Energy® batteries and chargers with the following technical specifications: Batteries of type 20 V / 36 Wh / Li-ion Models: AEB 20-2.0I / AEB 20-2.0N XYZ561 Charging time: 20 V... - Page 26 Noise/vibration information The aforementioned values are noise emission values and therefore do not neces- sarily represent safe values for the workplace. The correlation between emission and emission levels cannot reliably provide for a conclusion as to whether additional cau- tionary measures are necessary or not. Factors that could affect the respective immission level at the workplace involve the specification of the work area, the surrounding area, the duration of exposure, other noise sources, etc.
-
Page 27: Disposal
Disposal Disposal Disposing of the packaging Sort the packaging before you dispose of it. Dispose of paperboard and cardboard with the recycled paper service and wrappings with the ap- propriate collection service. Recycle Disposing of the product − Dispose of the product in accordance with the disposal regulations in force in your country. -
Page 28: Declaration Of Conformity
Declaration of Conformity Declaration of Conformity Conmetall Meister GmbH Oberkamper Straße 39 42349 Wuppertal Germany EC Declaration of Conformity We declare with sole responsibility, 20 V LI-ION CORDLESS HEDGE TRIMMER that the product listed below … FAH 20-I WU5420113/WU5420114 • 805005 • 05/2021 …... - Page 29 PRODUCED IN CHINA FOR: ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. ALDI STORES (IRELAND) LTD.
