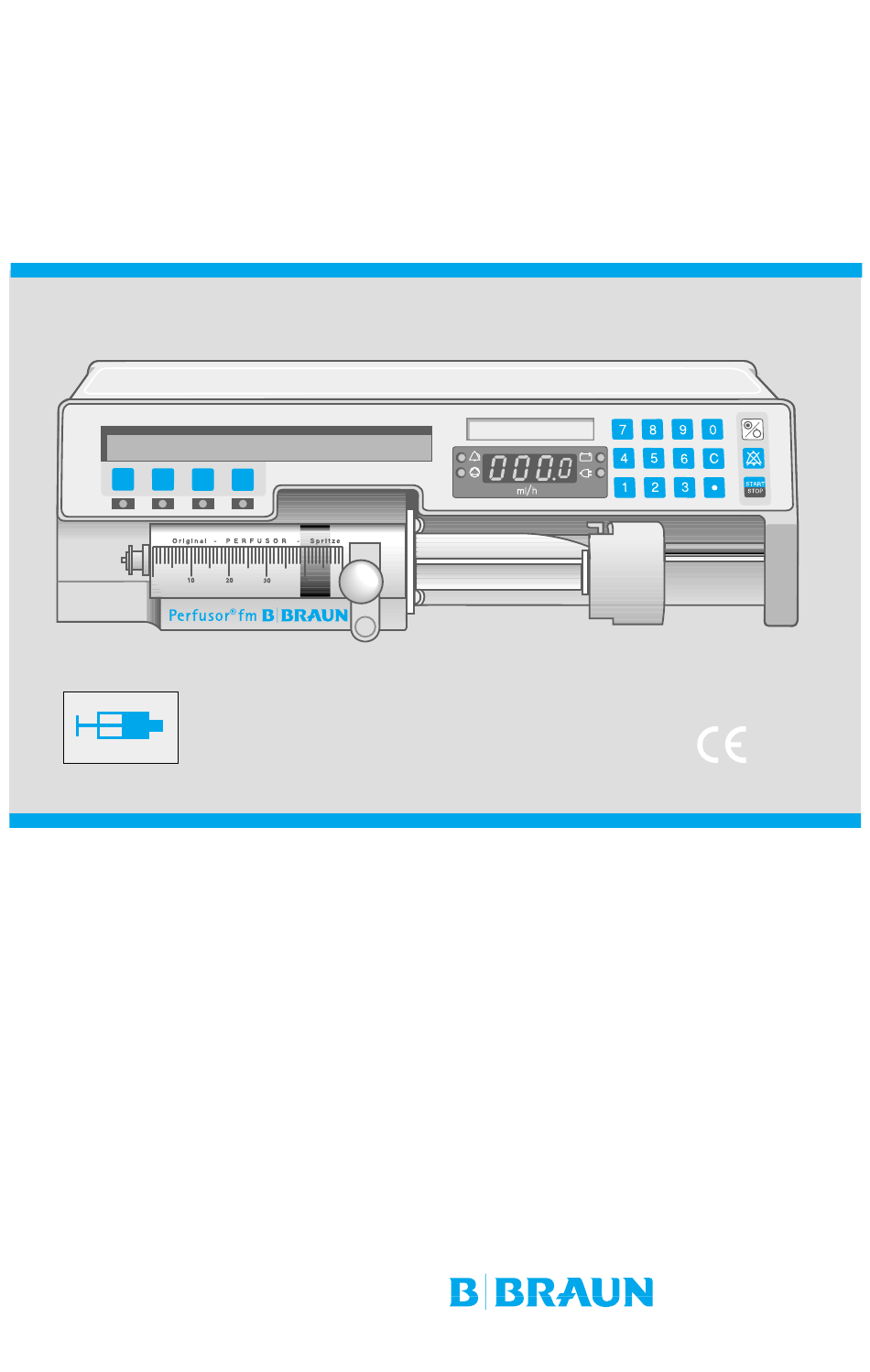

  • Page 1 ® Perfusor Instructions for Use 0123 Software PFAE...
  • Page 2 Never place more than 3 fixation because of uncontrolled drawing. Perfusor fm units on top of one another. Possible explosion hazard if used in presence Prior to use: of flammable anaesthetics.

  • Page 3: Table Of Contents

    For further details please refer to these Instructions for Use. Special functions broaden the scope of applications. Additional memory cards can The Perfusor fm is used primarily for the highly provide yet more functions, for example precise, reproducible infusion of medication in conversion to patient-controlled analgesia large and small quantities.

  • Page 4: Overview

    Overview Function keys Display and user prompting The function of the 4 keys is governed by the All important data are given in plain language respective situation. This is indicated in the or can be called up. display above. Thus, for example: Display with unobtrusive green light for Call up special functions optimum legibility.
  • Page 5 Pole clamp, back Aluminium casing Attach to infusion stand. Fit Easy upkeep, drip-proof and resistant to Perfusor fm from above and disinfectant. engage. To release, press Memory-card window black button. Scope of functions can be extended for exemple by way of a PCA memory card (please ask for information).

  • Page 6: Operation

    Operation Start of infusion Syringe change Ensure reliable installation To avoide incorrect dosing, always interrupt Connect up staff call if appropriate. patient connection when changing syringe. Switch on unit with . A short self-test is Press STOP performed. Drive moves into position. Green operating indicator goes out.
  • Page 7 Additional settings the target volume has to be displayed as ---,- To Change the Delivery Rate Press STOP. ml or a new target volume has to be set. Press C. Display is reset to 000. Target Time (Time Pre-selection) Press key beneath TIME. Enter new delivery rate.

  • Page 8: Special Functions

    Special functions Select special functions SF To stop bolus: Depending on the version, several functions Press key below STOP. may be deactivated. Contact service. Bolus without volume pre-selection To set special functions, press key below SF Press and hold BOL until a second BOL is repeatedly until desired special function is displayed.
  • Page 9 Enter length/duration of interruption Occlusion Pressure interval or confirm time displayed. For shorter alarm triggering times, occlusion pressure limit can be adjusted in 9 stages. Correction: Press C. Display 00h 00m. Optimum setting: New entry. Max. 2 - 3 bars can be seen in the course of infusion.
  • Page 10 Special functions Dosage Calculation (Overview) After confirming value weight with OK select The dosage calculation automatically calculates dosage requested (quantity- and time unit). the delivery rate in ml/h. Setting parameters: Enter values (at flashing star as described) 1. Syringe concentration and confirm with OK.
  • Page 11 Note: Always out of basic menu. until it is switched off in Special Functions. If If necessary, press END until display basic menu the Perfusor fm is switched off in the mean- is VOL TIME -- SF. time all previous values except the body weight are maintained.

  • Page 12: Reasons For Alarm

    Reasons for alarm Operating alarms Device Alarms Remedy failure and restart infusion When display indicates "device alarm" an audible alarm sounds permanently. Pressure alarm Occlusion? - Check the free flow and insert Press ON/OFF-key repeatedly until display infusion line free of kinks. Bolus is automatically indication "do not press any key until display is reduced.

  • Page 13: Cleaning / Battery

    2 months. Before operation the device allows to vent for at least 1 min. B. Braun recommends Battery is charged - even during infusion - Meliseptol. if 12 V or 230 V AC are connected.

  • Page 14: Start-Up Graphs And Trumpet Curves

    Start-up graphs and trumpet curves Max. bolus volume Start-up graphs /trumpet curves The graphs on page 7 are designed to show the accuracy/ Max. bolus volume according to uniformity of flow versus time. pressure stage and syringe type Note: The delivery behaviour/delivery accuracy is essentially influenced by the types of syringe used (disposables).
  • Page 15 20 ml OPS deviation flow 20 ml OPS Delivery rate = 10 ml/h 10 ml/h deviation flow 50 ml OPS 50 ml OPS Delivery = 1 ml/h 1 ml/h flow 50 ml OPS deviation 50 ml OPS Delivery rate = 25 ml/h 25 ml/h Alarm signalling times Time (min)

  • Page 16: Technical Data

    Technical data Type of unit Syringe Pump Classification (acc. to IEC/EN 60601-1) defibrillator-proof; Type CF Protection Class I Class (acc. to Directive 93/42 EEC) II b Moisture Protection IP 22 (drip protected for horizontal use) Rated voltage/current 230 VAC (0.07 A), 50/60 Hz Fuse 0.2 A slow-blow (IEC 127) 200/230/240 VAC switch-selectable (0.07 A) 50/60 Hz...
  • Page 17 In case of incorrect delivery < 0.01 ml due to apparatus malfunction the pump switches off automatically. Syringe table Manufacturer Display / Type Syringe size / Reference article number 10/12 ml 20 ml 50/60 ml B. Braun Perfusor 8728615 8728810 Proinjekt 8728917 Omnifix 4617100 4617207 4617509...

  • Page 18: Warranty

    Service B. Braun provides 24 months' warranty as of The Perfusor fm is sturdy and hard-wearing. It the date of delivery for every Perfusor fm. This nevertheless requires a safety check and the includes the repair or replacement of damaged...

  • Page 19: Order Data

    872 2889 PVC, with sterile filter 0.22 µ, with Luer lock connectors, pressure-resistant, 200 cm 872 3001 Perfusor fm 871 3820 Recommended accessories for Perfusor fm MFC-Connecting lead for staff call 871 1682 Connecting lead for potential equalisation 870 1628...
  • Page 20 HOSPITAL CARE B. Braun Melsungen AG Postfach 1120 D-34209 Melsungen Tel (05661) 71- 0 Drawing no. M 637 010 014 F04d Raw material no. 3891009/8 Fax (05661) 71- 20 44 05/01 Printed on pulp bleached 100% chlorine-free...
