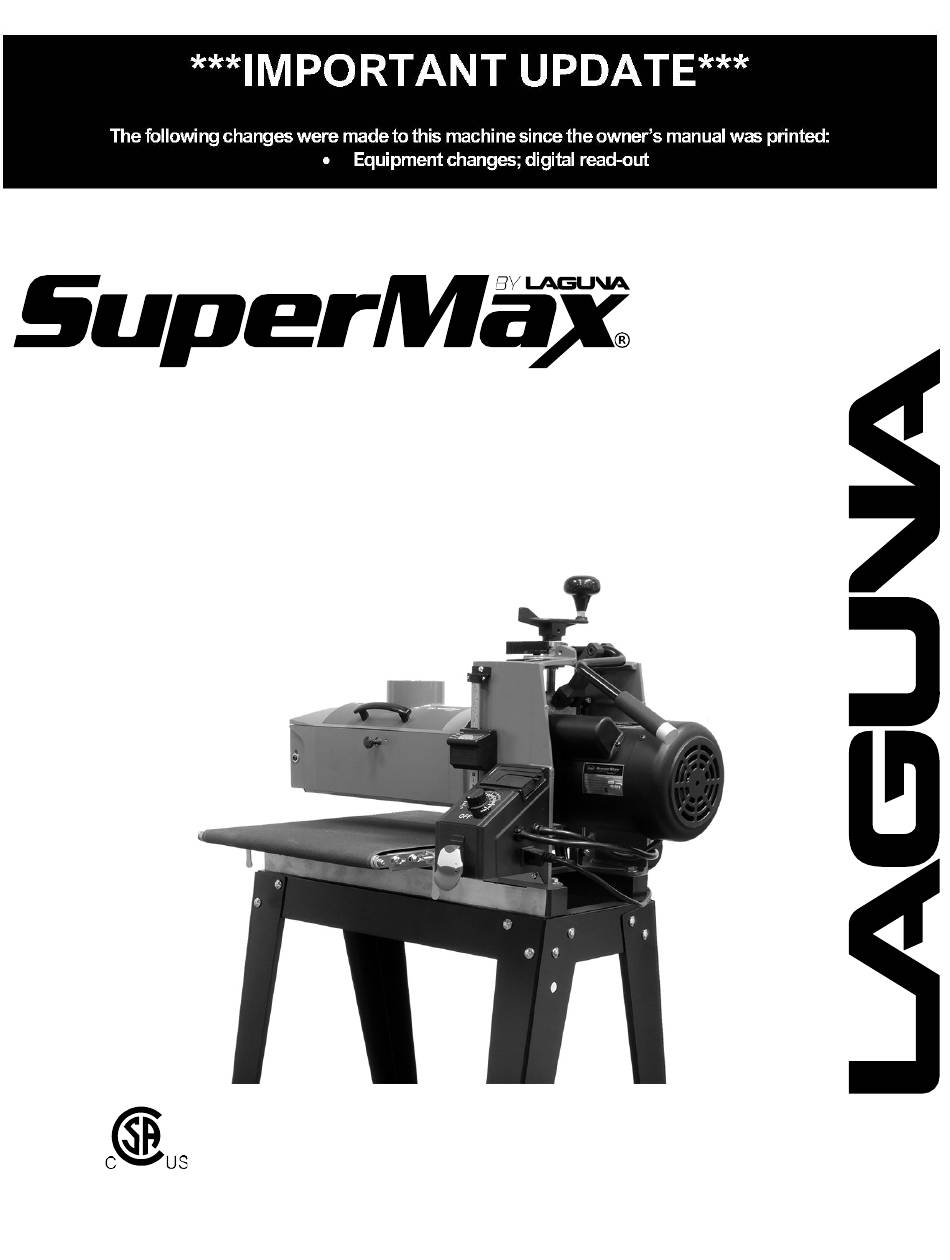

- Page 1 16-32 Drum Sander Owner’s Manual Lagunatools.com...
- Page 2 Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. We will repair or replace, without charge, any parts determined by Laguna Tools, Inc.
-
Page 3: Specifications
Using The DRO Specifications Resolution: Decimal = .005 in. Fraction = 1/32 in. = 0.1 mm Accuracy: Decimal = +/- .0025 in. Fraction= +/- 1/500 in. Metric = +/- .05 mm Battery: 2 AAA (not included) Functions: - Constant memory retains calibration even when OFF - Incremental measuring mode - Absolute measuring mode... - Page 4 Button Reference and Use It is helpful to familiarize these buttons and their purpose with the Wixey DRO...
- Page 5 Calibration There are three typical variations of calibration. The first variation (Type 1) is for the DRO to show the sanded thickness of the material. The second variation (Type 2) is to show how much stock is being removed with each pass of the sander. Another method (Type 3) to show the amount of material being removed per pass without recalibrating the Type 1 setting.
- Page 6 4. Press and hold the “CAL” button for 3 seconds until “0.00” appears. Type 3 Calibration INC: This method allows saving the original calibration from Type 1 and confirming the amount of material being removed per pass. 1. Make one pass sanding your stock. Without changing the drum height press the “ABS/INC” button to read “0.00”. This changes the readout from “ABS”...
- Page 7 ***IMPORTANT UPDATE*** Parts Never perform and setup, maintenance or adjustments with the machine connected to the power source! Only use authentic Laguna Tools parts for replacements. Customer Support: (949)-474-1200 or customerservice@lagunatools.com Part Number Description Specification 71632-101 Motor 480BS-102 Strain Relief, motor...
- Page 8 ***IMPORTANT UPDATE*** 480BS-152 Spring 71632-153 Tension Roller 480BS-154 Bushing, Oilite 480BS-180 Tension Roller Bracket, Outer Left 480BS-156 Screw 5/32"-32x1" 480BS-157 Spring, Tension Roller 480BS-179 Tension Roller Bracket, Outer Right 480BS-159 Pad, Bracket-Tension Roller 71632-160 Bracket 480BS-161 Plate 71632-162 Base 480BS-163 Adjusting Lever (FAST) 480BS-164 Adjusting Rod...
- Page 9 ***IMPORTANT UPDATE*** 71632-1117 Socket Head Cap Screw 5/16"-18x1-3/4" 71632-1121 Flat Washer 71632-1122 Tool Storage 71632-1123 Fixed Plate, DRO 71632-1124 Wixey Digital Readout (AAA Batteries not included)
- Page 10 ***IMPORTANT UPDATE***...
