Summary of Contents for Prince Castle 625 Series

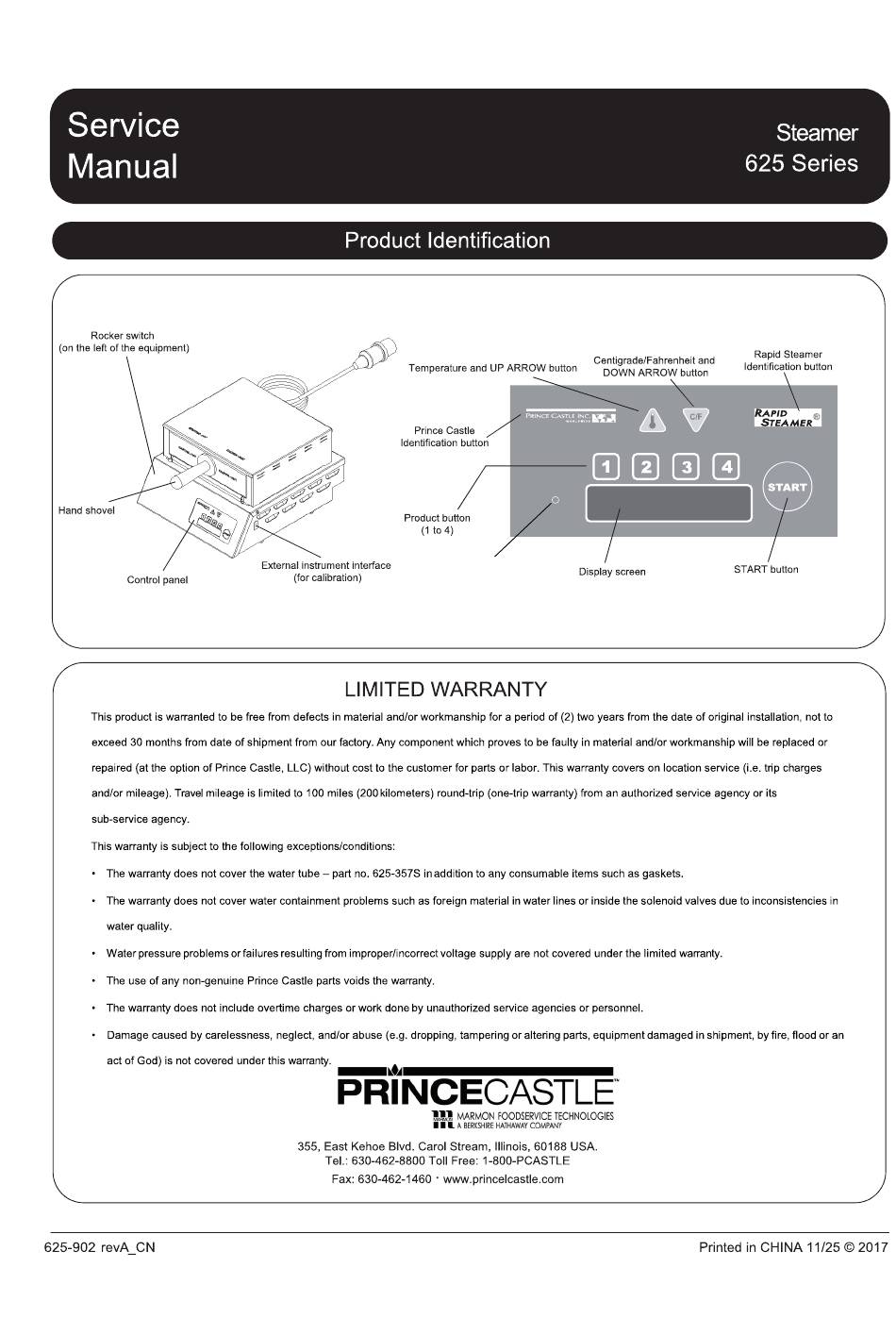

- Page 1 Indicator Light...
- Page 2 Replacing the Auto Reset Hi-Limit Table of Contents...
- Page 3 training and perform any maintenance on turned off and unplugged.
- Page 4 Philips Flat headed...
- Page 5 Unplug the connector on the water pipe whenever the equipment is under maintenance. Shut down unit from the power supply and make sure power cord is unplugged. It will result in severe personal injury Unscrew the black rotary knob using a flat headed or death if the power supply on the screwdriver and remove the fuse.
- Page 6 Unplug the connector on the water pipe, whenever the equipment is under maintenance. Shut down unit from the power supply and make sure power cord is unplugged. It will result in severe personal injury or death if the power supply on the unit isn’t disconnected prior to maintenance.
- Page 7 Remove the retaining screw by using the Philips head screwdriver to remove the connecting wire. Unscrew the retaining nut using a socket wrench and remove the relay. Unplug the connector on the water pipe whenever the equipment is under maintenance. Shut down unit from the power supply and make sure power cord is unplugged.
- Page 8 Unscrew the retaining nut using a socket wrench. Turn over the main circuit board and unplug the connecting wire connector of the circuit board. Unplug the connector on the water pipe whenever the equipment is under maintenance. Shut down unit from the power supply and make sure power cord is unplugged.
- Page 9 Unscrew the retaining nut using a socket wrench. Turn over the main circuit board and unplug the connecting wire connector of the circuit board. Unplug the connector on the water pipe whenever the equipment is under maintenance. Shut down unit from the power supply and make sure power cord is unplugged.
- Page 10 Unscrew the retaining nut using a socket wrench. Turn over the main circuit board and unplug the connecting wire connector of the circuit board. Unplug the connector on the water pipe whenever the equipment is under maintenance. Shut down unit from the power supply and make sure power cord is unplugged.
- Page 11 Unscrew the retaining nut using a socket wrench. Turn over the main circuit board and unplug the connecting wire connector of the circuit board. Unplug the connector on the water pipe whenever the equipment is under maintenance. Shut down unit from the power supply and make sure power cord is unplugged.
- Page 12 Auto Reset Hi-Limit Unscrew the retaining nut using a socket wrench. Turn over the main circuit board and unplug the connecting wire connector of the circuit board. Unplug the connector on the water pipe whenever the equipment is under maintenance. Shut down unit from the power supply and make sure power cord is unplugged.
- Page 13 Replacing the Heating Plate Unscrew the retaining nut using a socket wrench. Turn over the main circuit board and unplug the connecting wire connector of the circuit board. Unplug the connector on the water pipe whenever the equipment is under maintenance. Shut down unit from the power supply and make sure power cord is unplugged.
- Page 14 powerline cord; light switch is not lit, replace it; 1. Place the shovel in the equipment after finished using; 2. Replace the shovel. attached into into plugged finished using;...
- Page 15 Spatula Assembly Spatula Assembly (625-MCDUKC) 625-333S Spatula Handle kit 625-097S Rocker Switch, 20A Membrane Switch Assembly Display (Control), PCB 625-627S 625-628S Display (Control),PCB (625-MCDUKC) Top Cover Silicone Gasket Feet (Pkg of 4) Strain Relief (625-MCDUKC) Strain Relief Water Dispensing Tube Kit Mini-Jack, Type K Top Plate Top Plate (625-MCDUKC)
- Page 17 Allowable Labor Limits Procedure Part Number Max Labor Hours Replacing the fuse 625-634S 0.5hour Replacing the fuse holder 88-787S 1hour Replacing the relay 65-058S 1.5hour Replacing the main circuit board 625-626S 1hour 625-627S Replacing the display board 1hour 625-628S Replacing the film-based panel assembly 625-619S 1hour 625-405S...
