Operating
Instructions
Handle Latch
Cartridge
Locking Pin
Blade
Component
LIMITED WARRANTY
This product is warranted to be free from defects in material
and/or workmanship for a period of one (1) year from date
of original installation, not to exceed 18 months from date of
shipment from our factory with the exception of the blade/
pusher cartridge. Blade/pusher cartridge is warranted to be free
from defects at time of delivery only.
Any component which proves to be faulty in material and/or
workmanship will be replaced or repaired (at the option of Prince
Castle LLC) without cost (including freight and duty) to the
customer for parts or labor.
This warranty is subject to the following exceptions/conditions:
• Use of food products other than those specified will void this
warranty.
• This equipment is portable; charges for on-location service
(e.g., trip charges, mileage) are not included in the provisions
of this warranty.
• Damage caused by carelessness, neglect, and/or abuse (e.g.,
dropping, tampering or altering parts), equipment damaged in
shipment, by fire, flood or an act of nature is not covered under
this warranty.
5
980-
00revA-EN
Product Identification
Handle
Crossbar
Pusher Component
of Blade/Pusher
Cartridge
Chassis
Product Identification ............................................................... 1
Safety Information ................................................................... 2
Important ................................................................................. 2
Description............................................................................... 2
Specifications .......................................................................... 2
Installation ............................................................................... 2
Choosing and Inserting a Cartridge......................................... 3
Operation ................................................................................. 4
Removing a Cartridge .............................................................. 5
Cleaning .................................................................................. 5
Exploded View and Parts List .................................................. 7
355 East Kehoe Blvd. • Carol Stream, IL 60188 USA
Telephone: 630-462-8800 • Toll Free: 1-800-PCASTLE
Fax: 630-462-1460 • www.princecastle.com
Prince Castle ©
R
Chassis & Blade Sets
980-000-00
980-000-10A
980-000-12A
80-000-20A
9
980-000-22A
980-000-32A
980-000-33A
80-000-34A
9
980-000-43A
980-000-50A
980-000-51A
80-000-52A
9
980-000-60A
980-000-61A
980-000-62A
980-000-65A
TABLE OF CONTENTS
TM

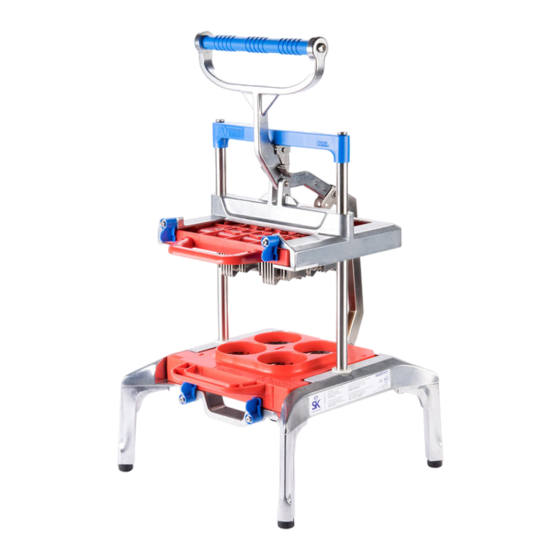

Universal Slicer
Saber King™
Chassis
3/16" Tomato Slicer
1/4" Tomato Slicer
3/16" Onion
1/4" Onion
1x1 Chop
1x2 Chop
1x7 Chop
5/16" Shredder
1/4" Dicer
3/8" Dicer
1/2" Dicer
4 Sections Wedger
6 Sections Wedger
8 Sections Wedger
Citrus Halfer
Printed in USA 04/17 © 2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Prince Castle Saber King
Summary of Contents for Prince Castle Saber King
- Page 1 Operating Universal Slicer Instructions Saber King™ Product Identification Chassis & Blade Sets Handle 980-000-00 Chassis 980-000-10A 3/16" Tomato Slicer Handle Latch Crossbar 980-000-12A 1/4" Tomato Slicer 80-000-20A 3/16" Onion Pusher Component of Blade/Pusher 980-000-22A 1/4" Onion Cartridge 980-000-32A 1x1 Chop...
- Page 2 Specifications Description Approximate Dimensions and Weight Prince Castle’s Saber King™ is a universal food prep system Height 23.0" (58.4 cm) designed with a multi-purpose chassis and interchangeable blade/pusher cartridges to accommodate slicing a variety of Width 16.4"...
- Page 3 Universal Slicer Saber King™ Choosing and Inserting a Cartridge Move the cartridge CAUTION locking pins to the unlocked position. Choose the red cartridge for tomatoes only and choose Move the two upper the green cartridge for lettuce only. Use of the red or green cartridge locking cartridges for other foods may damage the blades.
- Page 4 Universal Slicer Saber King™ Operation Ensure the handle Put a pan or bowl on the chassis is under the slicer to up. If necessary, catch the food as it place one hand on is cut. the handle and the other hand on the crossbar.
- Page 5 Universal Slicer Saber King™ Removing a Cartridge Holding the pusher and blade components together Ensure the handle as one cartridge, remove from the chassis. Guide on the chassis is down. If necessary, the sides of the pusher component out of the C-shaped channel in the chassis.
- Page 6 Universal Slicer Saber King™ Cleaning (continued) Remove the blade/pusher cartridge from the Rinse and sanitize the blade and pusher chassis. Refer to the instructions under Removing a components. Cartridge in this manual. Carry the blade/pusher Assemble the cartridge to the three- sanitized blade compartment sink.
- Page 7 Universal Slicer Saber King™ Exploded View and Parts List SERVICE KITS Part No. Description Part No. Description Cross Bar / Latch Kit Leg Kit 3/16" Tomato Blade Cover 980-REPL-001 980-REPL-010* Leg Kit Onion Blade Cover 980-REPL-002 980-REPL-011* Thumb Latch Kit...
