Page 4
Failure to read and follow the instructions and warnings in this document may result in serious injury to yourself or others, damage to or loss of your Livox product, or damage to other objects in the vicinity.
Page 5
2. Make sure to mount the Livox Mid-360 on a metal plate with good thermal conductivity such as aluminum alloy. Allow a space of at least 10 mm around the LiDAR sensor to avoid poor air flow affecting heat dissipation.
Page 6

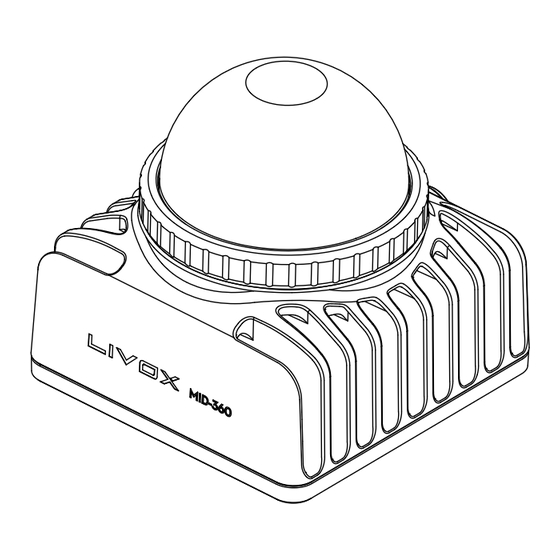

FOV, and has a stronger adaptability. Users can check the real-time point cloud data using Livox Viewer 2 and a software development kit (SDK) is provided to help develop customizable applications using the data acquired from the point cloud.
Page 7
Horizontal Vertical [1] Refer to the Livox Mid-360 User Manual for more information. Note that the effective detecting distance of the Livox Mid-360 varies based on where the object is within the FOV. Refer to the diagram below: 60° 60°...
Page 8
The Livox Mid-360 supports two IP modes: dynamic IP address mode and static IP address mode. All Livox Mid-360 LiDAR sensors are set to static IP address mode by default with an IP address of 192.168.1.1XX (XX stands for the last two digits of the Livox Mid-360 LiDAR sensor’s serial number). The default subnet masks of the Livox Mid-360 LiDAR sensors are all 255.255.255.0 and their default gateways...
Page 9
Ground • The Livox Aviation Connector 1-to-3 Splitter Cable must be purchased separately. • Refer to the Livox Mid-360 User Manual on how to connect the Livox Mid-360 to a router supporting the Dynamic Host Configuration Protocol (DHCP). • Refer to the Livox Mid-360 User Manual on how to set the IP address of the computer.
If a system window with network authorization pops up when opening Livox Viewer 2, allow Livox Viewer 2 to access network. d. The device manager window is on the left side of Livox Viewer 2 and the main interface is on the right side. Click to display or hide the device manager window.
Page 11
NOT disassemble Livox Mid-360. [2] Target objects within 0.1 to 0.2 m from Livox Mid-360 can be detected, and point cloud data can be recorded. However, since the detection precision cannot be guaranteed, the data should be taken as a reference only.
Page 27
할 수 있으며 귀하는 사법관할권에 따라 다른 권리를 가질 수 있습니다. Livox는 본 제품의 사용으로 인해 직접 또는 간접적으로 발생한 피해, 부상 또는 모든 법적 책임에 대해 어떠한 책임도 지지 않습니다. 사용자는 본 안전 가이드에 명시된 내용을 포함하여(단, 이에 국한되지 않음) 안전하고 적법한 사용 방법을 준수...
Page 28
Livox Mid-360 ×1 1. 소개 Livox Mid-360은 무인운전, 로봇 공학, 스마트시티 등 다양한 응용 분야에 활용할 수 있는 고성능 LiDAR 센서로서 매 핑, 포지셔닝, 인식, 장애물 회피 및 기타 기능의 구현을 지원합니다. Livox Mid-360은 최대 360°의 화각(FOV)을 제공 하며 0.1미터 떨어진 물체도 감지할 수 있습니다...
. 센서를 장착할 때는 물체에 의해 FOV 가 차단되지 않도록 하십시오 . 52° 360° 수평 수직 [1] 자세한 내용은 Livox Mid-360 사용자 매뉴얼을 참조하십시오. Livox Mid-360 의 유효 감지 거리는 물체가 FOV 내에 있는 위치에 따라 달라진다는 점을 유의하십시오 . 아래 그림을 참조하십시오 .
Page 30
사용 시 항상 유효 감지 범위에 주의를 기울이십시오. Livox Mid-360 장착 아래 그림의 치수와 장착 구멍을 참조하여 Livox Mid-360 을 대상 베이스의 적절한 위치에 장착하거나 끼워 넣습니다 . 포인트 O 는 원점을 나타내며 O-YXZ 는 Livox Mid-360 의 포인트 클라우드 좌표를 나타냅니다 .
Page 31
3.3V LVTTL 연결 Livox Mid-360는 유동 IP 주소 모드와 고정 IP 주소 모드라는 두 가지 IP 모드를 지원합니다. 모든 Livox Mid-360 LiDAR 센서는 IP 주소가 192.168.1.1XX인 고정 IP 주소 모드로 기본 설정됩니다(XX는 Livox Mid-360 LiDAR 센서 일련번호의 마지막 두 숫자입니다). Livox Mid-360 LiDAR 센서의 기본 서브넷 마스크는 모두 255.255.255.0이며 기...
Page 32
• 컴퓨터의 IP 주소를 설정하는 방법은 Livox Mid-360 사용자 매뉴얼을 참조하십시오 . • 여러 Livox Mid-360 LiDAR 센서가 고정 IP 주소 모드로 한 컴퓨터에 연결된 경우 , 연결된 모든 센서의 고정 IP 주소가 서로 다른지 확인하십시오 . 각 LiDAR 센서의 IP 주소를 설정하는 법에 대한 자세한 정보는 Livox Mid-360 사용자...
Page 33
연결 후 , 아이콘을 클릭하거나 키보드의 스페이스 키를 눌러 포인트 클라우드 데이터를 확인합니다 . • Windows 사용자의 경우, Windows 방화벽을 켜면 Livox Viewer 2가 LiDAR 센서를 감지하지 못할 수 있습니다. 이 경우, 제어판으로 이동하여 Windows 방화벽을 끄고 Livox Viewer 2를 다시 시작하십시오.
Page 34
[6] 25° C 의 온도와 100klx 의 테스트 환경에서 미광에 의해 생성된 노이즈의 오경보율 . [7] Livox Mid-360 의 성능은 고온 또는 저온 환경 , 강한 진동이나 짙은 안개가 있는 환경 등에서 약간 저하될 수 있습니다 . 또한 고온에서 장기간 작동하면 성능에 부정적인 영향을 미치고 제품이 영구적으로 손상될 수 있습니다 . 쉘의 온도가 80° C 를 초과하지 않도록 추가적...
Page 35
Pflichten. Bitte lies dir das gesamte Dokument aufmerksam durch, um das Produkt für den Betrieb ordnungsgemäß einrichten zu können. Wenn du die Anweisungen und Warnungen in diesem Dokument nicht liest und beachtest, kann dies zu ernsthaften Verletzungen, Schäden oder zum Verlust deines Livox Produkts oder anderer Objekte führen, die sich in der Nähe befinden.
Page 36
(beispielsweise Nebel oder stürmischem Wetter mit Regen) verwenden. Unter solchen Bedingungen kann die Erfassungsreichweite verringert sein. 2. Achten Sie darauf, den Livox Mid-360 auf einer Metallplatte mit guter Wärmeleitfähigkeit, wie z.B. aus einer Aluminiumlegierung, zu montieren. Lassen Sie mindestens 10 mm Freiraum um den LiDAR-Sensor herum, um schlechte Luftzirkulation zu vermeiden, welche die Wärmeableitung beeinträchtigt.
Page 37
Fahren, Robotik, intelligente Städte und andere Bereiche eingesetzt werden kann. Er unterstützt die Ausführung von Kartierungs-, Positionierung-, Erkennungs- und Hindernisvermeidungsfunktionen etc. Der Livox Mid-360 hat ein Sichtfeld (FOV) von bis zu 360° und kann Objekte bis zu einem Abstand von 0,1 Metern erkennen .
Page 38
Orientieren Sie sich an den Abmessungen und den Gewindebohrungen in den nachfolgenden Abbildungen, um den Livox Mid-360 an einer geeigneten Stelle auf der Montageplatte anzubringen. Der Punkt O markiert den Ursprung und O-YXZ die Koordinaten der Punktwolke des Livox Mid-360.
Page 39
Der Livox Mid-360 unterstützt zwei IP-Modi: den dynamischen und den statischen IP-Adressmodus. Alle Livox Mid-360-LiDAR-Sensoren verwenden standardmäßig die statische IP-Adresse 192.168.1.1XX (XX steht dabei für die beiden letzten Stellen der Seriennummer des jeweiligen Livox Mid-360-LiDAR-Sensors). Ab Werk ist die Subnetzmaske des Livox Mid-360-LiDAR-Sensors auf 255.255.255.0 und der Gateway auf 192.168.1.1...
Page 40
Masse • Das 1-zu-3 Splitterkabel für den Livox Anschlussstecker muss separat erworben werden. • Informationen zum Anschluss des Livox Mid-360 an einen Router, der das Dynamic Host Configuration Protocol (DHCP) unterstützt, finden Sie in der Bedienungsanleitung des Livox Mid-360. • Informationen zum Festlegen der IP-Adresse des Computers finden Sie in der Bedienungsanleitung des Livox Mid-360.
Laden Sie die Datei mit dem Namen „Livox Viewer 2“ herunter. b. Entpacken Sie den Livox Viewer 2, und klicken Sie zur Ausführung auf die EXE-Datei mit dem Namen „Livox Viewer 2“. Anwender von Ubuntu entpacken die Livox Viewer 2-ZIP-Datei und führen im Hauptverzeichnis „./livox_viewer_2.sh“...
Page 42
NIEMALS auseinander, um Verletzungen durch den Laser zu vermeiden. [2] Zielobjekte in einer Entfernung von 0,1 bis 0,2 m können vom Livox Mid-360 erkannt und es können Punktwolkedaten aufgezeichnet werden. Da die Erkennungsgenauigkeit jedoch nicht garantiert werden kann, sollten diese Daten nur zu Referenzzwecken verwendet werden.
Page 43
Dichiarazione di conformità UE: Livox Technology Co., Ltd.dichiara che Responsible Party: DJI SERVICE LLC il presente(Livox Mid-360) dispositivo è conforme ai requisiti essenziali e Responsible Party Address: 17301 Edwards road, Cerritos, CA 90703 alle altre disposizioni rilevanti della direttiva 2014/30/EU.
Page 44
RÁITEAS Comhlíonta an AE: Dearbhaíonn Livox Technology Co., EU-försäkran om efterlevnad: Livox Technology Co., Ltd.härmed Ltd.leis seo go bhfuil an gléas seo(Livox Mid-360) de réir na gceanglas förklarar att denna enhet(Livox Mid-360) uppfyller de väsentliga kraven riachtanach agus na bhforálacha ábhartha eile sa Treoir 2014/30/AE.
Page 45
valuable raw materials and the treatment of toxic substances. на старите уреди е отговорен за пренасянето на уредите до тези или до подобни събирателни пунктове. С това малко собствено Umweltfreundliche Entsorgung усилие допринасяте за рециклирането на ценни суровини и за Dies ist das Symbol für die getrennte Sammlung von Elektro- und обработката...
Page 46
an ionad bailiúcháin pobail ag daoine príobháideacha saor in aisce. Tá Gamla elektriska apparater får inte kasseras tillsammans med restavfallet freagracht ar úinéir seanghléasanna na gléasanna a thabhairt chuig na utan måste kasseras separat. Kassering på den lokala insamlingsplatsen hionaid bhailiúcháin sin nó chuig ionaid bhailiúcháin den chineál céanna. för privatpersoner är gratis.
