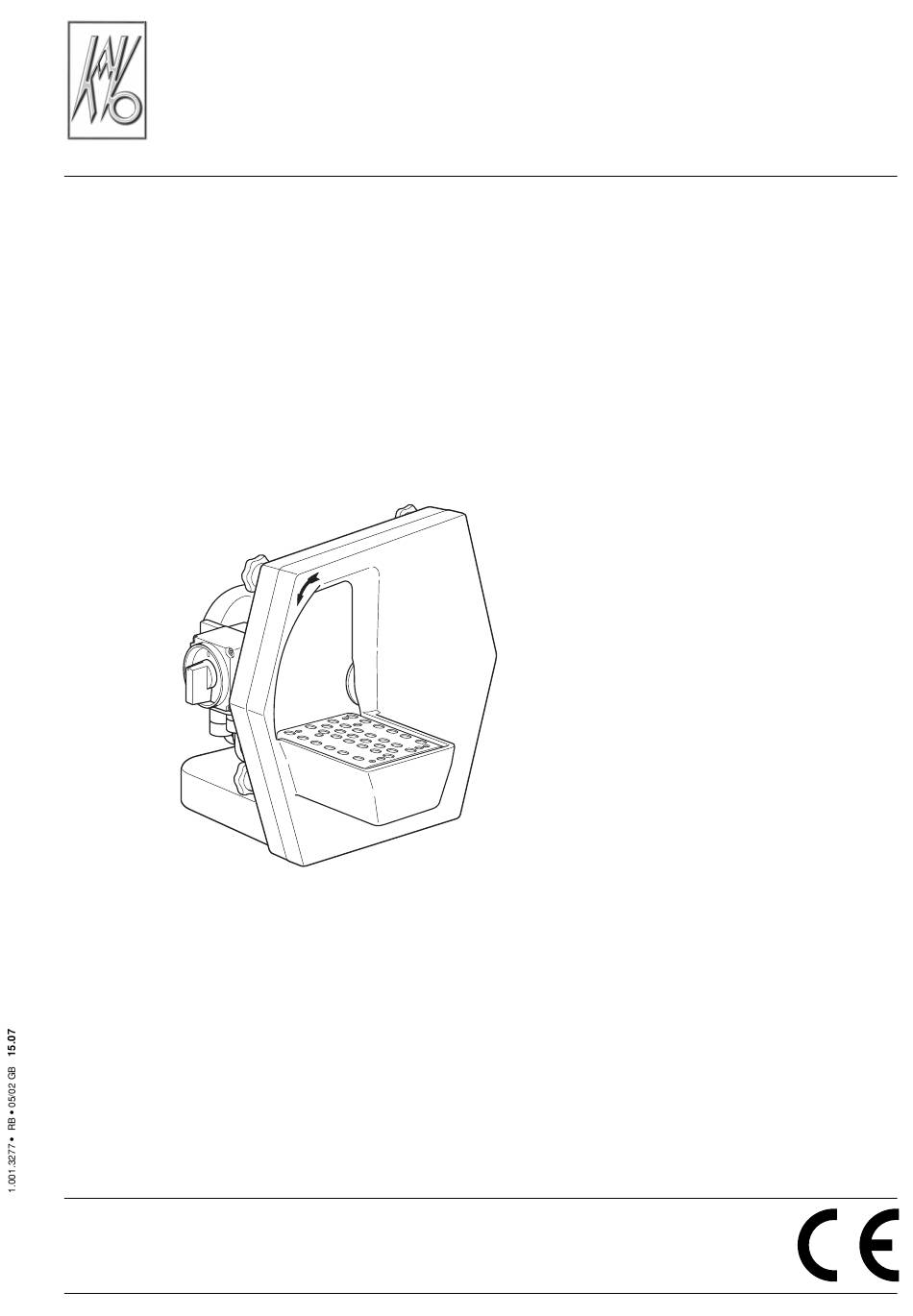

- Page 1 Operating Instructions Model Trimmer EWL 5831 1.000.8422 DE 1.000.9674 GB 1.000.9679 US KaVo Elektrotechnisches Werk GmbH Wangener Straße 78 D-88299 Leutkirch Tel.: 0 75 61 / 86-0 • Fax: 0 75 61 / 86-22 2...
-
Page 3: Table Of Contents
A 7.1 Fitting the diagonal support ........................7 A 7.2 Assembly ..............................7 Taking care of the unit ..........................8 A 8.1 Maintenance ............................8 A 8.2 Troubleshooting ............................8 A 8.3 Reconditioning the trimming disc ......................8 A 8.4 Replacement trimming discs ........................8 Warranty information ............................9 Spare parts ..............................10 EWL 5831... -
Page 4: A 1 For Your Safety
Danger of injury from rotating parts and the trimming disc. A 1.5 Observance of the Operating Instructions Each user of the unit is assumed to have a thorough knowledge and observance of these operating instructions. The unit is designed only for the applications described. EWL 5831... -
Page 5: A 1.6 Liability For Function And Damage
The unit must be maintained and operated in accordance with these operating instructions. KaVo EWL is not liable for damage arising as a result of non-compliance with the above information. Guarantee and liability conditions as described in the Sales and Delivery Conditions from KaVo EWL are not extended through the above information. -
Page 6: A 2 Maintenance And Cleaning
The location, even if temporary, plays an important role in the safety and function of the unit. The area should be dry, ventilated and vibration-free – constant temperature and a wooden underlay are advantageous. • Do not store or set up the unit outside. • The unit must have reached room temperature before operating. EWL 5831... -
Page 7: A 5 Handling
OPERATING INSTRUCTIONS A 5 Handling A 5.1 Technical data Model Trimmer EWL 5831 1.000.8422 DE (electrical supply line 0.223.4118) Model Trimmer EWL 5831 1.000.9674 GB (electrical supply line 0.691.3601) Model Trimmer EWL 5831 1.000.9679 US (electrical supply line 0.223.4144) Model Trimmer EWL 5831 AU (electrical supply line 0.223.4145) -
Page 8: A 6 Installation
As standard, the hose connector is set diagonally to the right However, this can be converted to a straight connector, which is recommended under difficult drainage conditions. In this case, simply exchange the sealing cap for the connector. EWL 5831... -
Page 9: A 7 Fittings
When working with the diagonal support, ensure that it is correctly located according to the sketch below. When fitting the diagonal support, make sure that positions 1 and 2 are correctly seated. diagonal support correctly seated front plate A 7.2 Assembly Apart from the item described in section A 7.1, no assembling is required. EWL 5831... -
Page 10: A 8 Taking Care Of The Unit
When using a dressing tool, the Instructions for Use and Safety Information must be strictly adhered to. A 8.4 Replacement trimming discs • Replacement discs from KaVo EWL are supplied with a tool for removing the old disc, and a tube of grease for sealing the disc compartment. -
Page 11: Warranty Information
Within the scope of the current Delivery and Payment Conditions, KaVo EWL warrants the unit to be free from malfunctions, defects in both materials and workmanship for a period of 6 months from the date of purchase. At the end of this warranty period, KaVo provides a further 6-months guarantee for faults arising, which can be traced back to deficiencies in materials or the manufacturing process. -
Page 12: Spare Parts
EWL 5831 SPARE PARTS Spare parts Mat. No. Description 1.001.3473 Simmer ring 1.000.8872 Replacement corundum disc, normal, dia. 260, grain size 24 1.000.8873 Replacement diamond disc 1.001.2202 Tool for changing discs 1.001.2203 Sealing grease 1.001.3474 1.001.3472 1.001.3471 1.001.3426 1.001.3430 1.001.3475 1.001.3426... - Page 13 OPERATING INSTRUCTIONS EWL 5831...
