Miele K1911SF Specification
Product and cut-out dimensions
Hide thumbs
Also See for K1911SF:
- Operating and installation manual (56 pages) ,
- Dimensions (2 pages) ,
- Operating and installation instructions (60 pages)
Advertisement

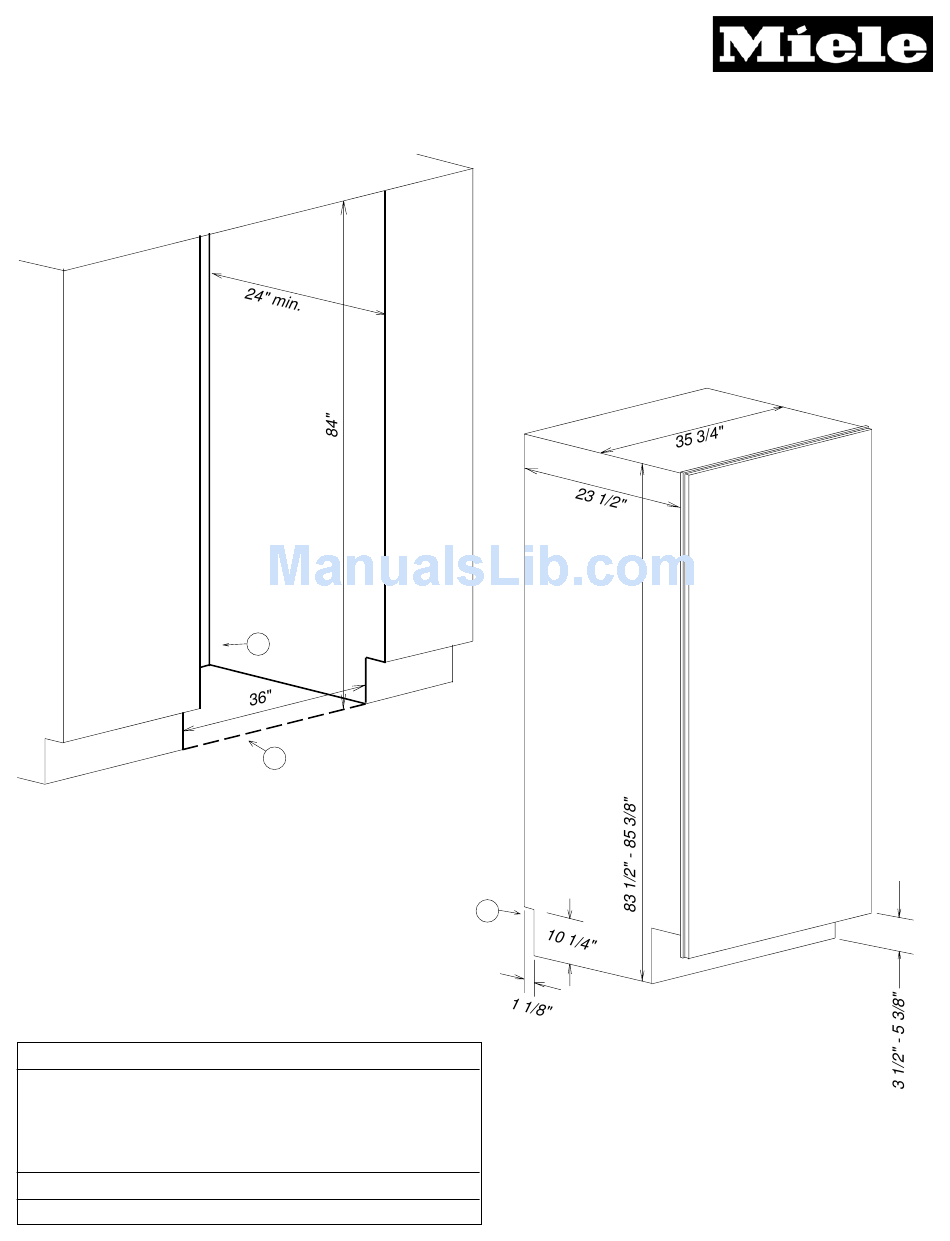

Product and Cut-out Dimensions
K1911SF / K1901SF
Location Codes
E -
5 foot - 120 Volt - 15 Amp 3-wire molded plug power
supply connects lower left rear.
O -
Standard NEMA 5-15 Outlet - locate less than 9" above
finished floor
1/4" flexible water line - tape to floor
W -
• All Installations must be done in accordance with local codes
O
W
Notes
E
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 011108
Advertisement
Table of Contents
Related Manuals for Miele K1911SF
Summary of Contents for Miele K1911SF
- Page 1 Product and Cut-out Dimensions K1911SF / K1901SF Location Codes 5 foot - 120 Volt - 15 Amp 3-wire molded plug power supply connects lower left rear. Standard NEMA 5-15 Outlet - locate less than 9" above finished floor 1/4" flexible water line - tape to floor Notes •...
- Page 2 Top View K1911SF / K1901SF 36" Cutout Width 35 3/4" Housing Width 1 1/8" 3 1/2" 36 1/2" Frame Width NOTE: Drawing is not to scale. SPECIFICATION SHEETS 011108...
- Page 3 Hinging Details 90° Door 115° Door Door Swing Door Swing 18" 3 9/16" NOTE: Drawing is not to scale. SPECIFICATION SHEETS 011108...
