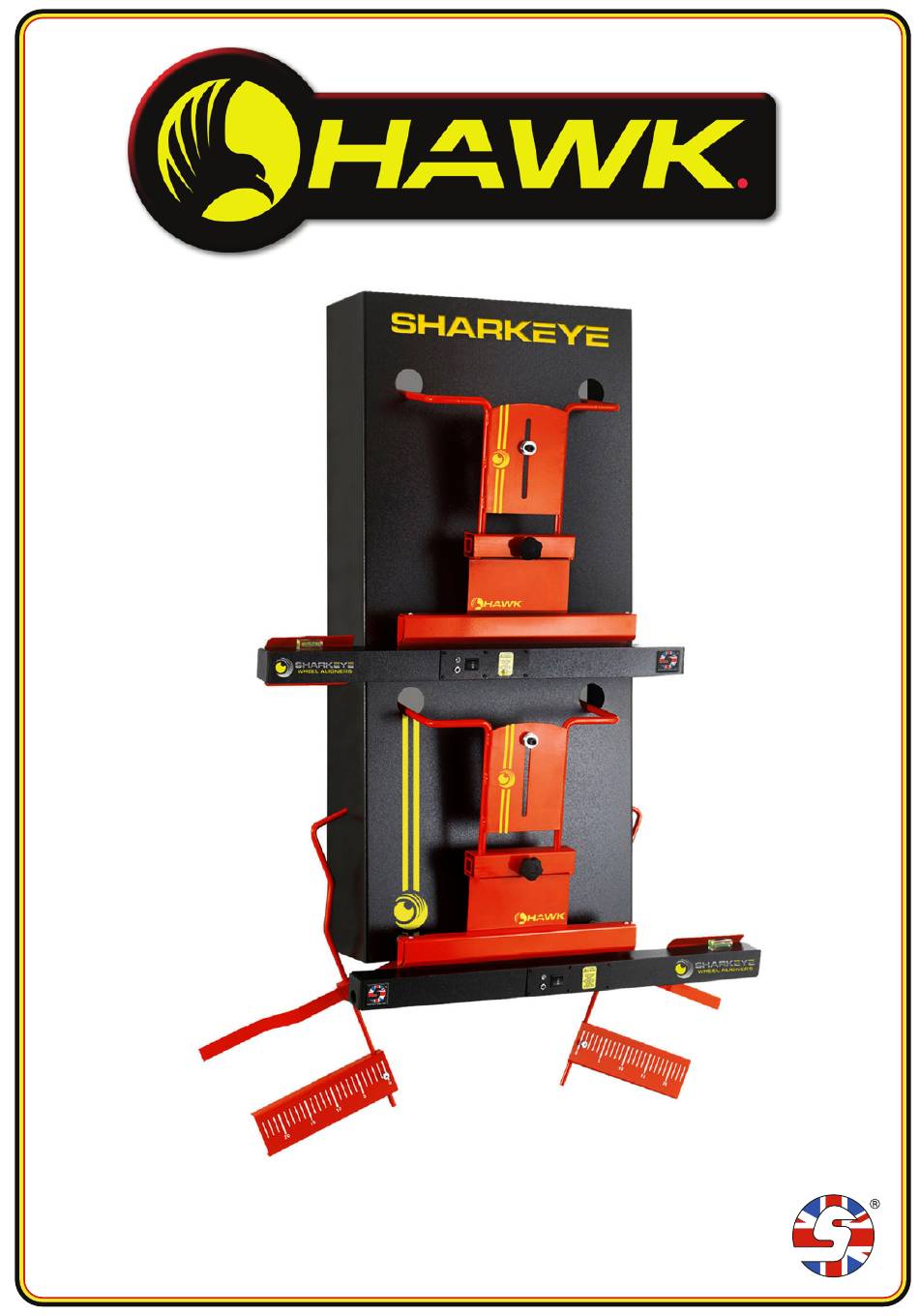

- Page 1 4 Wheel Laser Aligner USER MANUAL Made in SHEFFIELD ENGLAND Model No. SC4WLA...
- Page 2 Follow these steps prior to use 1. After Opening your package, first remove the two M6 safety bolts from the two wheel hangers. 2. Unlock the soft touch hand wheel on the wheel frame and then slide the wheel hanger down into the frame.
- Page 3 Rear Flag Assembly Overhead View Rear Flag Hanger Side View Aluminiun Rim Buttons x 2 Wheel Rim (should rest against wheel rim) Cross Member Tyre Gripping Pin Soft Touch Rear Flag Locking Hand Assembly Hanger Wheel Arm (should rest on top of the tyres with Tyre Gripping Pin securely in between tyre tread)
- Page 4 4 - Wheel Laser Alignment In Brief Three different wheel alignment methods can be performed with the 4-wheel laser alignment system as follows: • Center-line Alignment • Thrust Angle Alignment • 4-Wheel Alignment Choose the appropriate method from the following descriptions that will provide the results you desire.
- Page 5 wear and incorrect vehicle handling will occur. See the Thrust Angle Alignment section next to understand why. A Thrust Angle Alignment is performed on a solid non-adjustable rear axle. This type of alignment compensates for any normal (less than .4 degree) rear axle thrust angle so that all alignment angles are within specification and the steering wheel is centred while driving.
- Page 6 Performing A 4-Wheel Alignment Begin by placing the laser sensors on the front wheels and the flag scales on the rear wheels. Sit in the vehicle and visually center the steering wheel. It is helpful to start the engine on power steering equipped vehicles during this process.
- Page 7 NOTE: while the sensors are installed on the rear axle, the toe scales will extend rearward away from the vehicle. In this case, the toe scales must be read in reverse. Indicated toe-in will actually be toe-out, and indicated toe-out will actually be toe-in, as the scales are being viewed in an opposite manner.
- Page 8 YOU MAY ALSO LIKE THIS... 8CCD Computerised Wheel Alignment System The ELEGANTE 8CCD will give you the same results as competitors' systems that are literally double the price. It's perfect for businesses that want the benefit of easily updateable vehicle databases, electronic and manual.
