MAXIMUM BUS
LENGTH
BUS TOPOLOGY
SAFETY
In order to maintain these conditions and ensure safe use, the user must follow indications and markings contained in the following instructions.
Warning: Failure to follow these instructions below can result in death.
• Upon receipt of the instrument, before proceeding with the installation, check that it is intact and has not been damaged during
transport.
• Check that the operating voltage and the mains voltage coincide and then proceed with the installation.
• The instrument power supply must not be grounded.
• The instrument does not have a fuse to protect the power supply, so it must be protected by the installer.
• Maintenance and/or repair operations must be carried out only by qualified and authorized personnel.
• If you suspect that the tool is no longer secure, take it out of service and make sure it is not used inadvertently.
• Dangerous voltages can be present on voltage and current transformers. Follow standard safety precautions before performing
any installation or service activity.
• The instrument and its connections must be properly protected.
• The instrument must be installed following all local regulations.
Precautions: Failure to follow the instructions below can cause persistent damage to the instrument.
• The digital outputs and inputs are low voltage and cannot be connected to external power sources.

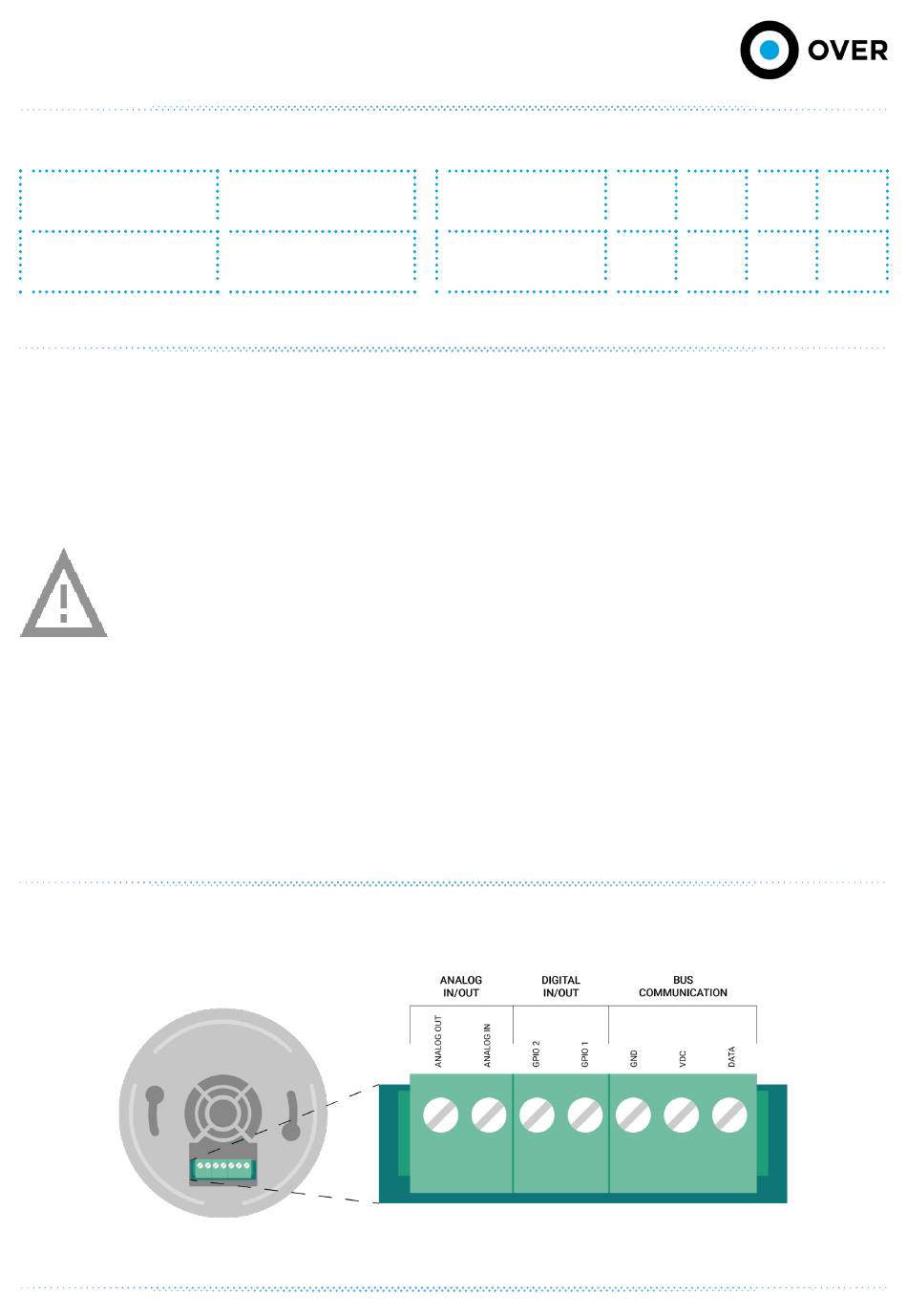

On the back of the device there is a group of terminals for BUS communication, digital inputs/outputs, analog input and analog output.
Version 1.4 - Subject to change without notice
EDS BUS SPECIFICATIONS
1200m linear
over the whole system
Star, series or
promiscuous

INSTALLATION INSTRUCTIONS

CONNECTION DIAGRAM
BUS LENGTH
RECOMMENDED
MINIMUM SECTION
1,5mm² is recommended for implants, a value which however depends on the location of the modules
<10m <30m <100m
0,50 0,75 1,5
mm² mm² mm²
>100m
2,5
mm²
