OVER OSENSOR Manual

Advanced air quality sensor

OSENSOR

ADVANCED

AIR QUALITY SENSOR

• TEMPERATURE (T)

• HUMIDITY (H)

• ATMOSPHERIC PRESSURE (P)

• CARBON DIOXIDE (CO2)

• TOTAL VOLATILE ORGANIC COMPOUNDS (TVOC)

• CARBON MONOXIDE (CO)

• FORMALDEHYDE (CH2O)

• PARTICULATE MATTER (PM1, PM2.5, PM10)

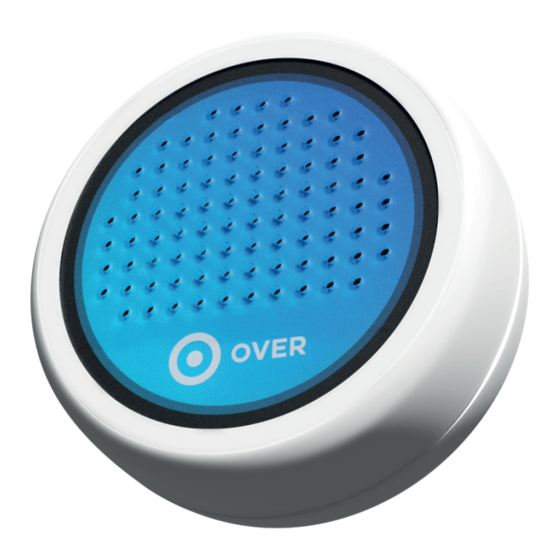

The OSensor is an advanced indoor air quality monitoring device that measures 10 parameters

simultaneously in real-time to ensure environmental comfort and occupant health. The OSensor readings

include temperature, humidity, atmospheric pressure, carbon dioxide, volatile organic compounds, carbon

monoxide, formaldehyde and particulate matter (PM 1, 2.5 and 10). The OSensor can interact with third-party

devices with 4 programmable interfaces: 2 digital lines (customizable as Digital IN, Digital OUT, mixed), 1

analog IN and 1 analog OUT). The device is also equipped with a button and a programmable LED ring which

allows interaction with users. Available also for installation in outdoor environments.

Version 1.4 - Subject to change without notice

Table of Contents

Need help?

Do you have a question about the OSENSOR and is the answer not in the manual?

Page 1 (PM 1, 2.5 and 10). The OSensor can interact with third-party devices with 4 programmable interfaces: 2 digital lines (customizable as Digital IN, Digital OUT, mixed), 1 analog IN and 1 analog OUT).
Page 2 DATA SHEET MODEL OSENSOR PRODUCT CODE RoHS, CE CERTIFICATIONS UAE RoHS, ECAS SIZE 95x35mm WEIGHT 140g POWER SUPPLY 12÷15 Vdc BUS COMMUNICATION CURRENT DRAW max 50mA PROGRAMMABLE ANALOG INPUT 0-10Vdc o 4-20mA PROGRAMMABLE ANALOG OUTPUT 0-10Vdc 2 programmable digital interfaces: •...
Page 3: Maximum Bus Length
EDS BUS SPECIFICATIONS MAXIMUM BUS 1200m linear BUS LENGTH <10m <30m <100m >100m LENGTH over the whole system Star, series or RECOMMENDED 0,50 0,75 BUS TOPOLOGY promiscuous MINIMUM SECTION mm² mm² mm² mm² 1,5mm² is recommended for implants, a value which however depends on the location of the modules...
Page 4 The front cover of the device can be pressed like a button. By pressing, it is possible to activate customizable and pre-programmed logics through the OVERBOARD, which depending on user’s needs can also affect GPIOs, other OVER devices in the same BUS network or send an alert via the OVERBOARD.
Page 5: Front Panel
RETURN AND REPAIR PROCEDURE All returned products must meet the same condition in which they were supplied at the buyer’s expense, to the headquarters of OVER S.p.A. in Viale Piemonte 37 - 20093 Cologno Monzese (MI) and packed by the buyer in order to avoid damages for which the buyer would be responsible.
