Front Panel - WattBox WB-800I-IPVM-6 Quick Start Manual

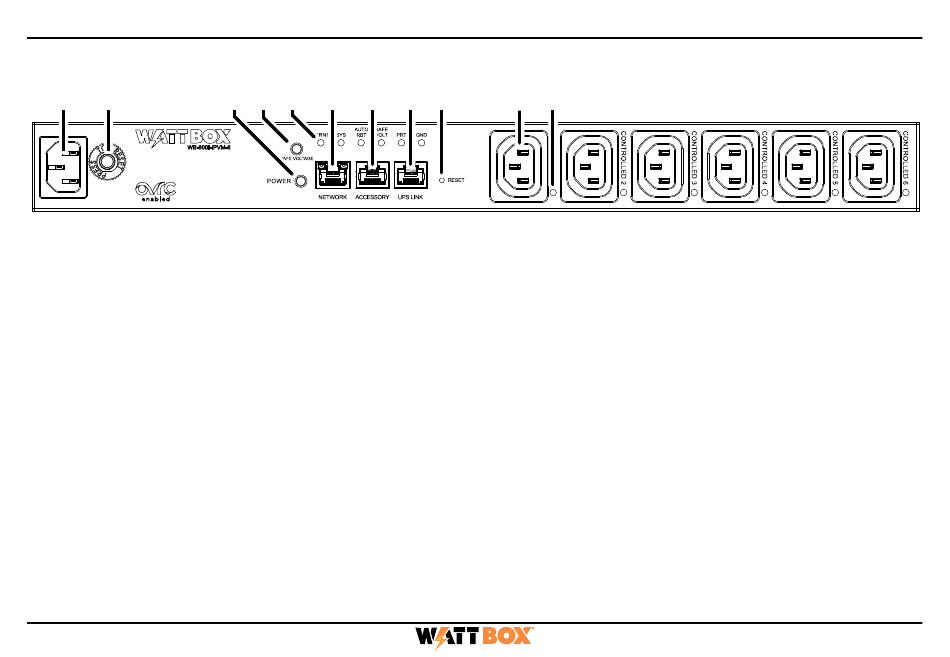

Front Panel

A B
220~240V~
50 / 60 Hz 10A
A. Power Inlet: For a 3-prong IEC power cord.
B. Circuit Breaker Reset Button: Press this button to restart the WattBox after an overload.
C. AC Power Switch: Press to manually toggle the outlets on or off. This glows with an amber light when the unit is
powered.
D. Safe Voltage Button: Toggles the Safe Voltage feature on and off, which protects your gear using normalized
power flow. The LED is illuminated when Safe Voltage is on.
E. Indicator LEDS: See the system status, Internet activity, auto reboot, safe voltage, surge protection, and grounding
(see page 11).
F. Network Connection: Connect to the Local Area Network (LAN) for IP control and monitoring.
G. Accessory Port: For connection to WattBox accessories.
H. UPS Link: For connection to a WattBox UPS unit (for future use).
I. Reset Button: Use a thin tool (paper clip, toothpick) to press this to restart the network card (no settings are
changed). Press and hold 5 seconds to set the power strip to DHCP. Press and hold for 10 seconds to reset the
power strip to factory default.
J. Controllable Outlets: All outlets are switchable (IP controlled).
K. Power Indicators: These illuminate when power to the matching outlet is on.
4
C D E F G H I K
J
