Installation

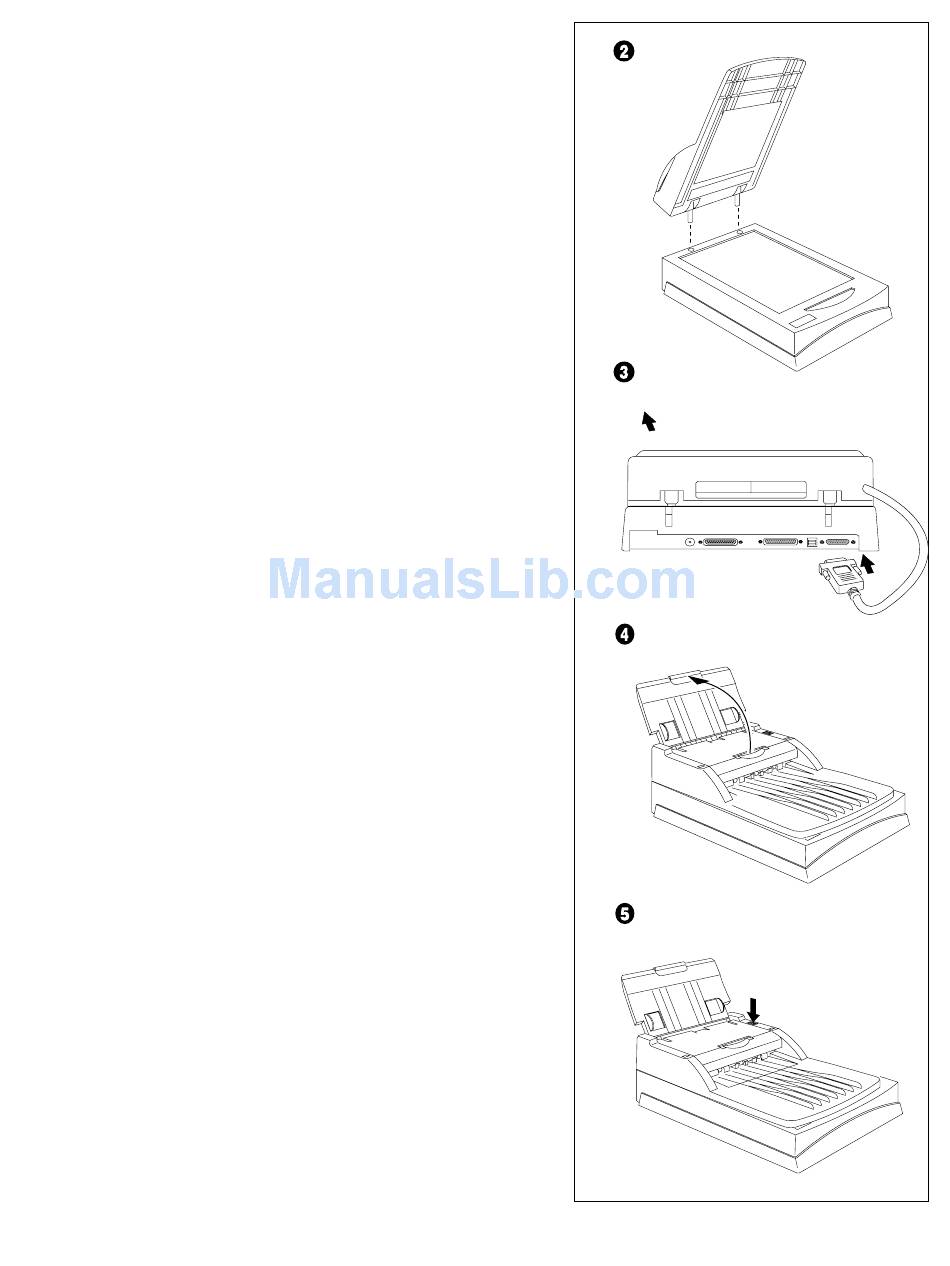

Follow these steps to install the Auto-
matic Document Feeder:
1. Pull out the two pins holding the
2. Place the Automatic Document
Note: The Automatic Document Feeder
for ScanMaker series scanners has
shorter guide pins than other scanner
models.
3. Plug the Automatic Document
4. After the Automatic Document
5. Press the Locking Button at the right
scanner cover and lift off the cover.
Feeder on top of the scanner. Insert
the guide pins into the holes origi-
nally used by the scanner cover.
Feeder's connector into the Auto-
matic Document Feeder connector
of your scanner. Secure the connec-
tor by tightening its retaining screws.
Feeder is securely attached, swing
the paper support up to over 60
degrees. The paper support should
stay in the raised position by itself.
side of Automatic Document Feeder.
This will cause the transport module
of Automatic Document Feeder to
pop up a little.
Automatic Document Feeder Installation and Operation Manual
MICROTEK INTERNATIONAL INC.
Pressing the
Locking Button
3
